Peugeot 308: Removing - refitting : Rear wheel speed sensor

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Tooling

Workshop equipment : Diagnostic tool.

2. Preliminary operations

Place the vehicle on a 2-post lift.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

3. Removing

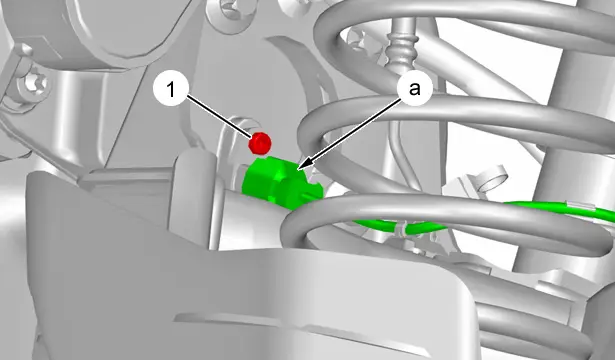

Disconnect the connector  (at "a").

Remove the bolt (1) of the rear wheel speed sensor .

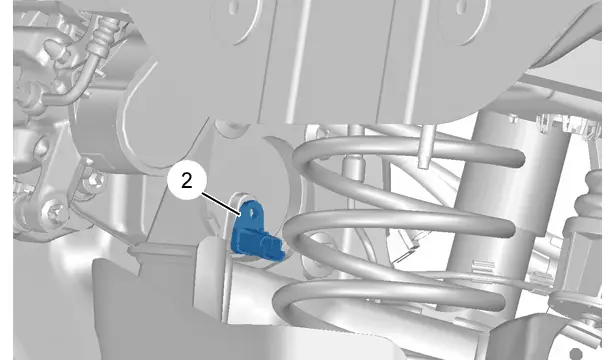

Remove the rear wheel speed sensor (2).

4. Refitting

MHEV DRIVE TRAIN OR INTERNAL COMBUSTION DRIVE TRAIN

CAUTION : Observe the tightening torques .

PHEV DRIVE TRAIN

CAUTION : Observe the tightening torques .

ELECTRIC DRIVE TRAIN

CAUTION : Observe the tightening torques .

CAUTION : Avoid knocking the head of the rear wheel sensor (2).

Check that the rear wheel speed sensor (2) is clean.

Refit :

• The rear wheel speed sensor (2)
• The bolt (1)

Reconnect the connector  (at "a").

5. Additional operations

Return the vehicle to its wheels.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).

Read and clear the fault codes ; Using a diagnostic tool.
