Peugeot 308: Removing - refitting : Steering lock

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

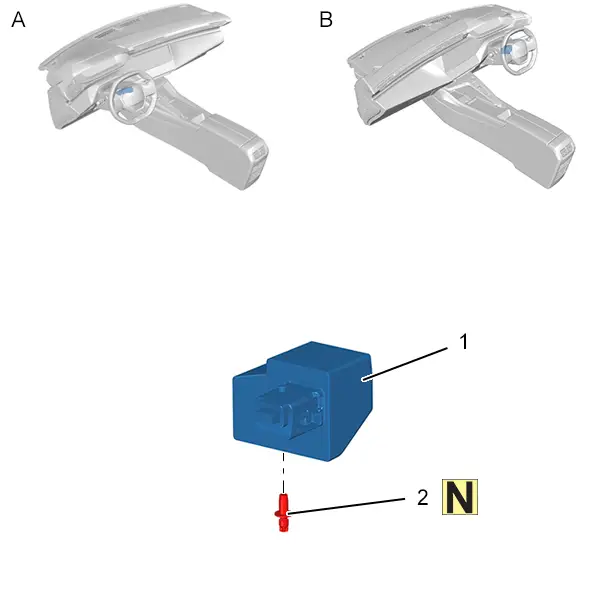

1. Location

"A" : left-hand drive.

"B" : right-hand drive.

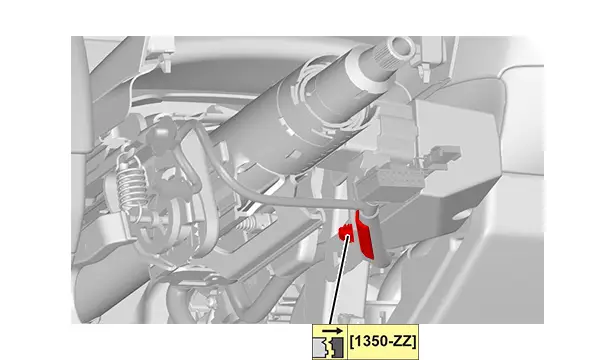

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Removing

Remove the controls under the steering wheel .

5. Refitting

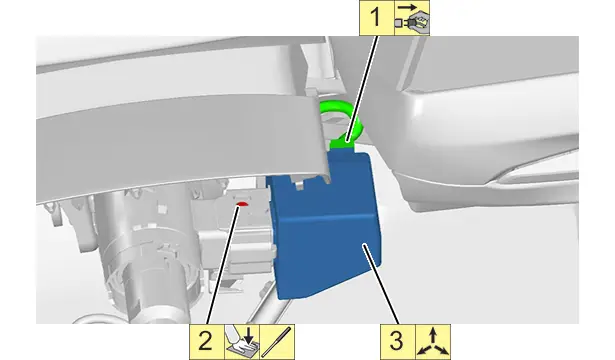

Refit the electric steering lock .

Check the locking of the steering wheel.

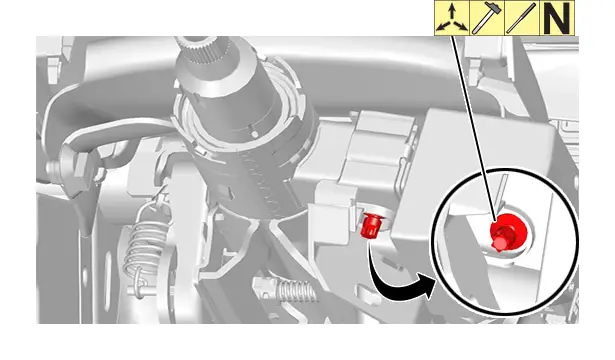

Fit a new bolt (Shear bolt).

N.B. : Tighten the bolt until the head breaks off.

Check the locking of the lug .

Reconnect the electrical harness connector .

Proceed in the reverse order to removal.

Refit the controls under the steering wheel .

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
