Peugeot 308: Removing - refitting : Network voltage retaining device

ESSENTIAL : Observe the safety and cleanliness recommendations .

1. Removing

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

Disconnect the ancillaries battery.

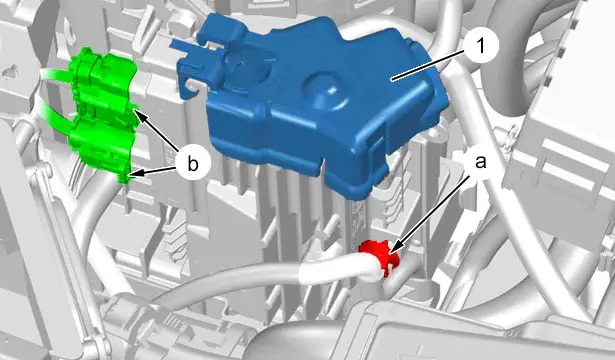

Unclip the cover (1).

Disconnect the connectors(at "b").

Unclip the electrical harness (at "a").

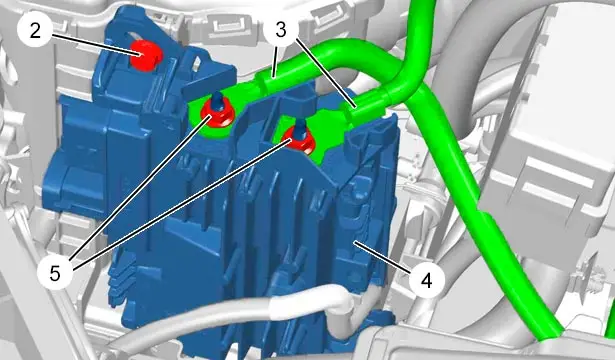

Remove the nuts (5).

Move aside the electric cables (3).

Remove :

• The bolt (2)
• The network voltage maintaining device (4)

2. Refitting

STOP AND START STARTER MOTOR

CAUTION : Observe the tightening torques .

Refit :

• The network voltage maintaining device (4)
• The bolt (2)

Reposition the electrical harnesses (3).

Refit the nuts (5).

Reclip the cover (1).

Reconnect the connector (at "b").

Clip the electrical harness (at "a").

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

Reconnect the ancillaries battery .
