Peugeot 308: Removing - refitting : Bonnet opening control

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

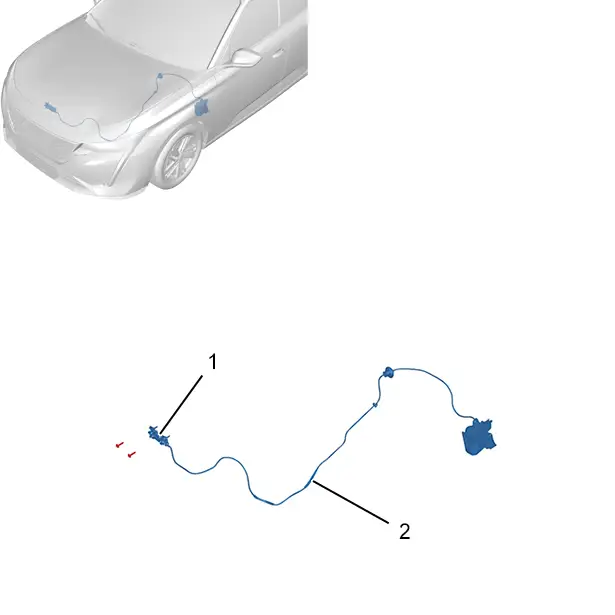

1. Location

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove :

• The front bumper
• The headlamps
• The front pillar ‎ trim ‎ (Driver’s side)

4. Removing

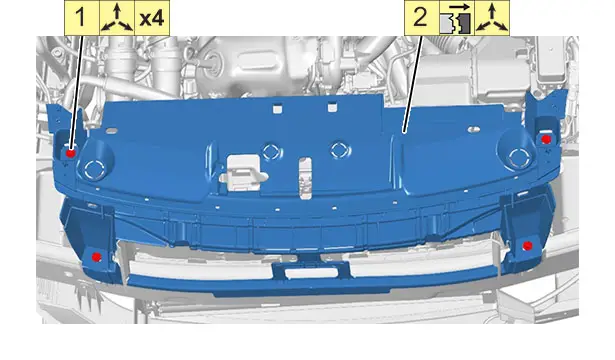

4.1. Front bumper deflector

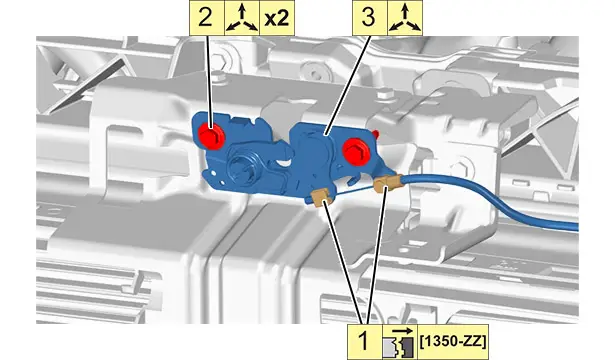

4.2. Bonnet lock

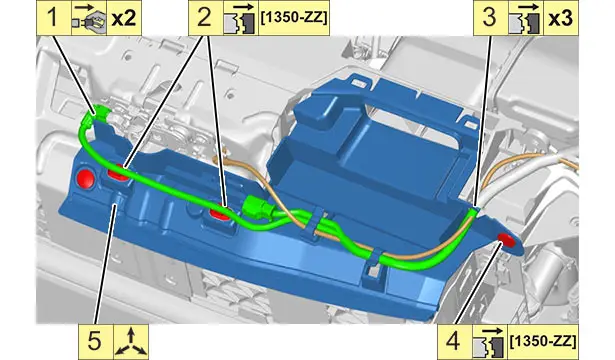

4.3. Bonnet release cable

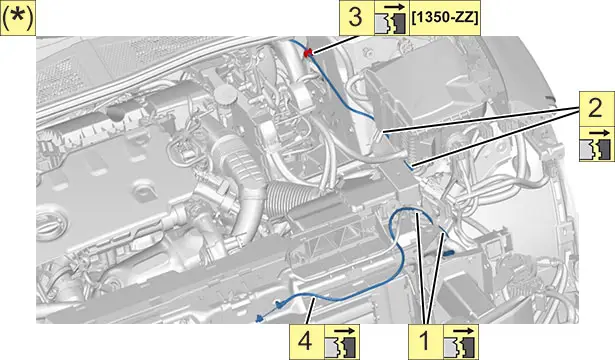

N.B. : (*) Identify visually the path of the cable (Engine compartment).

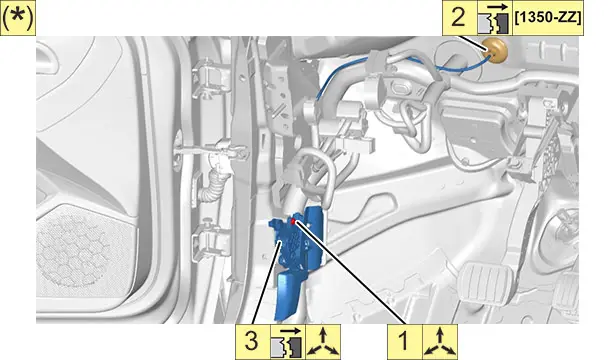

N.B. : (*) Identify visually the path of the cable (Passenger compartment side).

5. Refitting

Proceed in the reverse order to removal.

When refitting, take care with the positioning of the grommet .

Respect the path of the cable .

N.B. : Before closing the bonnet check that the opening control and the lock are operating correctly.

Adjust the fits and clearances.

6. Additional operations

Refit :

• The headlamps
• The front bumper
• The front pillar ‎ trim ‎ (Driver’s side)

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
