Peugeot 308: Boot fittings

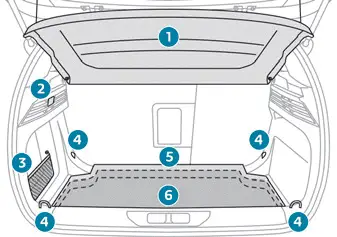

Hatchback

1. Load space cover shelf
2. Boot lamp
3. Storage net
4. Stowing rings
5. Rigid boot floor or hinged boot carpet (Rechargeable hybrid or Electric)
6. Storage well under the carpet

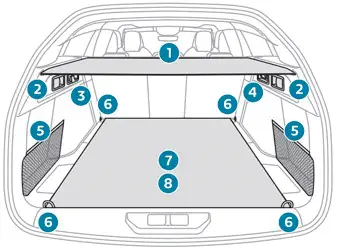

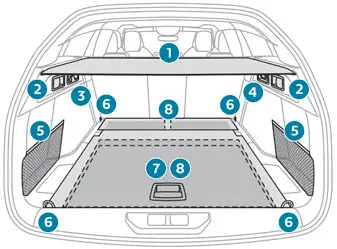

SW

1. Load space cover roller
2. Rear seat folding controls
3. Bag hook
4. 12 V socket
   Boot lamp
5. Storage nets
6. Stowing rings
7. Rigid boot floor, 2-position boot floor or hinged boot carpet (Rechargeable hybrid or Electric)
8. Storage well under the carpet

The stowing rings are designed to secure luggage using different types of retaining nets or suitable straps.

For more information, contact a PEUGEOT dealer or a qualified workshop.

• Load space cover (SW)
• High load retaining net (SW)

Load space cover (SW)

In the event of sudden deceleration, objects placed on the load space cover can turn into projectiles.

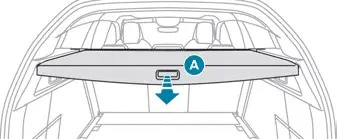

Reeling in

► Pull the handle towards you and downwards; the load space cover will automatically roll up.

The moving part A can be folded against the backrests of the rear seats.

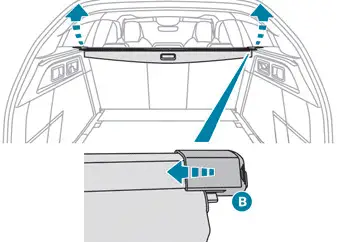

Removal

► Compress the control B and lift the load space cover on the right then on the left to remove it.

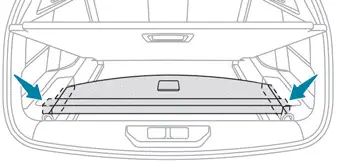

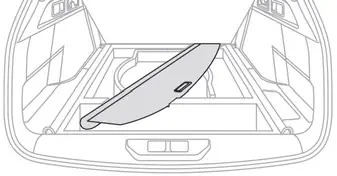

Storage

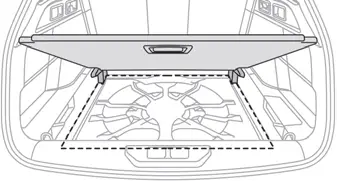

A recess located underneath the boot floor can be used to store the load space cover:

• diagonally with the rigid boot floor.
• crosswise with the 2-position boot floor.

► With the 2-position boot floor, first remove the 2 covers on each side of the housing.

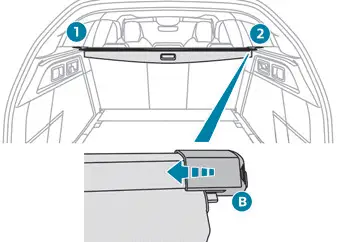

Installation

► Position the left-hand end of the load space cover roller in its location 1 behind the rear left seat.

► Compress the roller control B and put the roller in place in its location 2 on the right.

► Release the control to secure the load space cover.

► Unroll it until it clips on the boot pillars.

High load retaining net (SW)

Hooked onto the special upper and lower fixings, this removable net allows the use of the entire loading volume up to the roof:

• behind the front seats (row 1) when the rear seats are folded,
• behind the rear seats (row 2) when the load space cover is removed.

It protects the occupants in case of sudden braking.

Behind the front seats

► Fold down the rear bench seat.

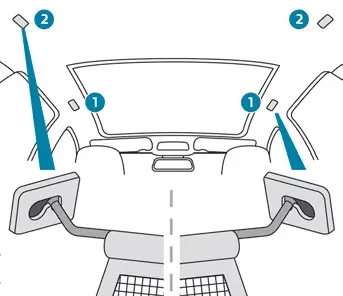

► Insert the ends of the bar, one after the other, into the fixing points in the roof.

► Attach the net's straps to the lower anchoring points, located on the fixings of the rear bench seat backrest.

► Pull on the straps to stretch the net.

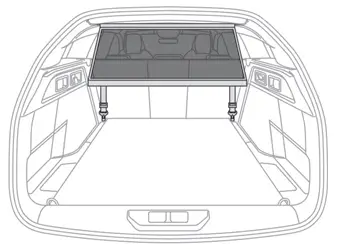

Behind the rear bench seat

► Remove the load space cover roller.

► Insert the ends of the bar, one after the other, into the fixing points in the roof.

► Attach the straps of the net to the lower rings, located on each side trim of the boot.

► Pull on the straps to stretch the net.

2-position boot floor (SW)

(Depending on version)

This 2-position floor allows the boot volume to be optimised using the lateral stops located on the sides:

• High position (100 kg max.): to obtain a flat floor up to the front seats, when the rear seats are folded down.
• Low position (150 kg max.): maximum boot volume.

To change the height:

► Lift and pull the floor towards you using its central handle, then use the lateral stops to move it.

► Push the floor all the way forwards to place it in the desired position.

To keep it in the inclined position:

► From the high position, lift the floor towards the load space cover.

► Engage it in the inclined position in the lateral stops to secure it in this position.

12 V accessory socket

► To connect a 12 V accessory (maximum power: 120 W), lift the cover and plug in a suitable adaptor.

► Switch on the ignition.

The connection of an electrical device not approved by PEUGEOT, such as a USB charger, may adversely affect the operation of vehicle electrical systems, causing faults such as poor radio reception or interference with displays in the screens.

Boot lamp

It comes on automatically when the boot is opened and goes off automatically when the boot is closed.

The lighting time varies according to the circumstances:

• When the ignition is off, approximately 10 minutes.
• In energy saving mode, approximately 30 seconds.
• With the engine running, unlimited.

Storage well

► Lift the rigid boot floor as far as possible or lift the hinged boot carpet (depending on version) to access the storage well.

► With the 2-position boot floor (SW), lift the boot floor as far as possible or lift the cover at the back of the boot to access one or other of the storage wells.

The cover at the back of the boot is also accessible from the second row seats if the backrests of the rear bench seat are folded down.

Depending on version, it includes:

• A hazard warning triangle.
• A temporary puncture repair kit with the tool kit.
• A spare wheel with the tool kit.
• The traction battery charging cables (Rechargeable hybrid or Electric).

The load space cover can also be stored here (SW).
