Peugeot 308: Replacement : Centre pillar strengthener

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Side section / Centre pillar / Replacement : Centre pillar strengthener

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be disconnected electrical supply.

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

1. Information

Types of spot welds or beads using the electric arc process :

  • MIG braze welding with cupro-aluminium filler used with an inert gas
  • MAG welding with steel filler metal and active gas

Designation of the high strength panels :

  • High strength (HSS) : High strength steel
  • Very high strength (VHSS) : Very high strength steel
  • Ultra high strength (UHSS) : Ultra high strength steel

N.B. : Use the products recommended by the manufacturer .

2. Tooling

Workshop equipment :

  • Swan’s neck drill for cutting out electric spot welds
  • Electronic measurement system
  • Mechanical measurement system

Tool Reference Description

[1366-ZZ] Toolkit for testing electric spot welds

[1366] Samples for testing electric spot welds

[1126] Set of drill bits for removing spot welds

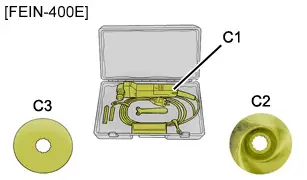

[FEIN-400E] "FEIN-400E" electric knife- "C1" electric knife- "C2" "FEIN" offset hub saw blade- "C3" Blade no. 103

3. Preliminary operations

ESSENTIAL : Deactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries.

CAUTION : Either remove or protect those components which are in the repair zone and risk being damaged by the heat or the dust.

Remove :

  • The front door
  • The rear door
  • The front and rear door aperture seals
  • The front seat
  • The interior trims

Release the electrical harnesses.

Replace :

  • The centre pillar
  • The roof
  • The centre pillar exterior expanding insert

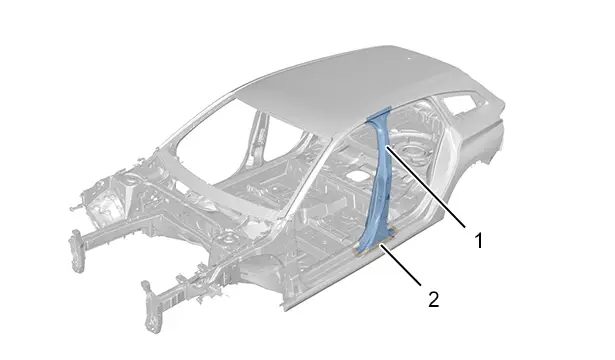

4. Location of the replacement part

Identification Description
(1) Centre pillar strengthener assembly
(2) Centre pillar exterior expanding insert

5. Identification of the replacement part

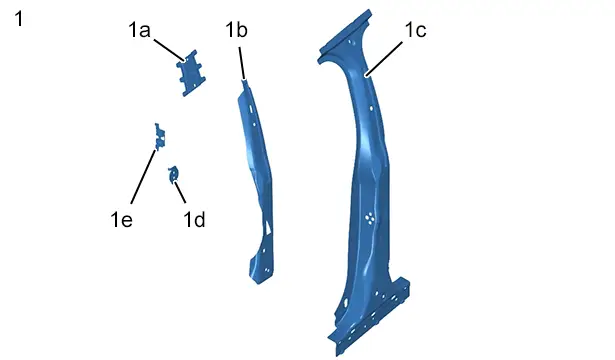

5.1. Composition : Centre pillar strengthener assembly

Identification Description Thickness Nature/classification
(1) Centre pillar strengthener assembly - -
(1a) Front seat belt upper mounting strengthener 1,60 mm High strength (HSS)
(1b) B post stiffener 2,00 mm Ultra high strength (UHSS)
(1c) Centre pillar strengthener 1,70 mm Ultra high strength (UHSS)
(1d) Door hinge tapping plate 2,00 mm High strength (HSS)
(1e) Door striker captive nut cage 1,47 mm High strength (HSS)

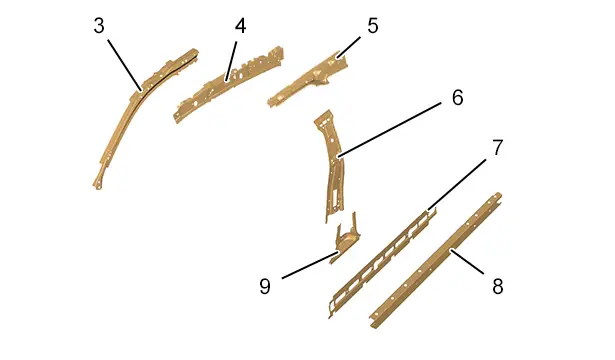

5.2. Identification of the parts adjacent to the replacement part

Identification Description Thickness Nature/classification
(3) Windscreen pillar strengthener 1,10 mm Ultra high strength (UHSS)
(4) Roof arch inner panel 1,15 mm Ultra high strength (UHSS)
(5) Roof bow strengthener 1,10 mm Ultra high strength (UHSS)
(6) Centre pillar inner panel 0,65 mm High strength (HSS)
(7) Side member web strengthener 1,15 mm Ultra high strength (UHSS)
(8) Side member strengthener assembly 2,00 mm Ultra high strength (UHSS)
(9) Front seat belt reel fixing bracket 1,30 mm High strength (HSS)

CAUTION : Take into account the difference in thickness of the parts when adjusting the welding station.

6. Replacement part preparation

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

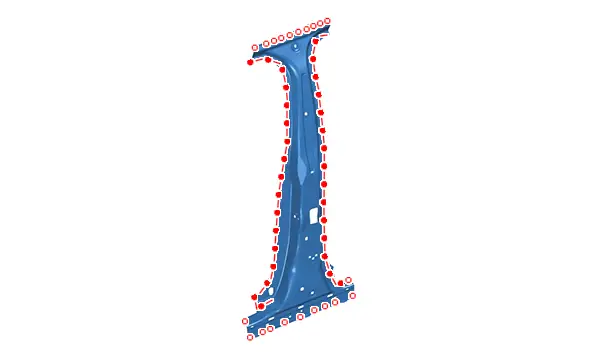

Mark then drill to a diameter of 7 mm for later plug welding.

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

7. Cutting of the part on the body

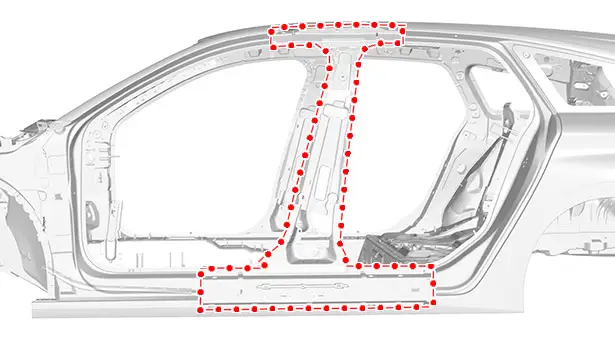

Cut out the spot welds .

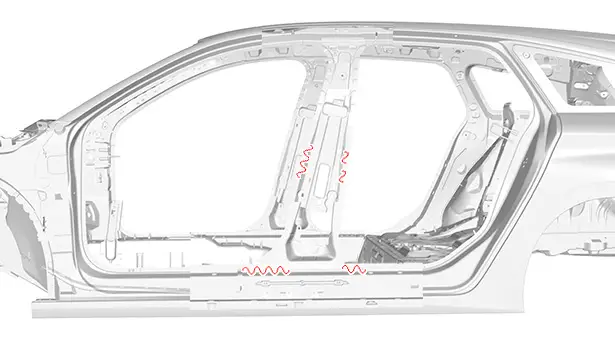

Detach the centre pillar strengthener assembly at the beads of structural adhesive ; Using a hot air gun.

Remove the centre pillar strengthener assembly .

8. Cleaning and preparation of the body

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

Apply structural adhesive (index "B3").

9. Adjustment

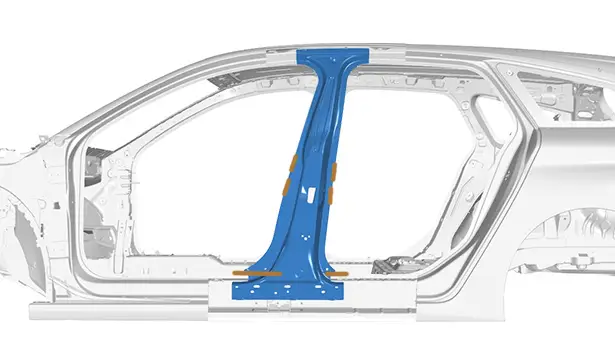

Position :

  • The centre pillar assembly strengthener
  • The components for adjusting

Check :

  • The position, using one of the approved measuring systems
  • The fits and clearances

Clamp the part into position.

10. Welding

CAUTION : Set the welding station.

Setting of the welding station :

  • Electric spot weld testing ; Using the tool [1366-ZZ]
  • Samples for testing electric spot welds ; Using the tool [1366]

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

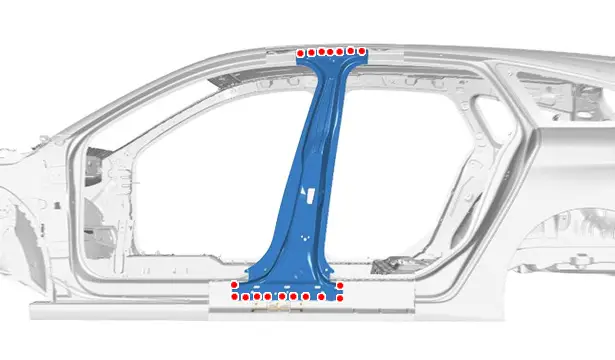

Weld with MAG plug welds.

Grind the MAG plug welds.

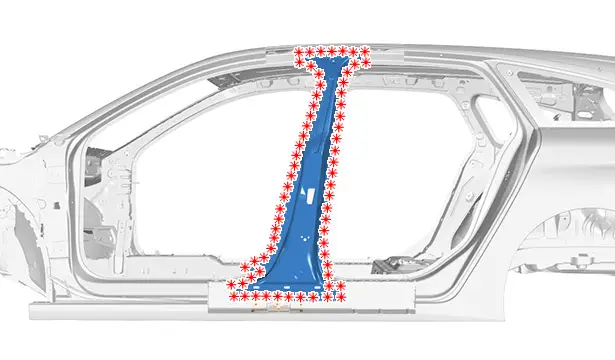

Weld with electric spot welds.

N.B. : The remaining electric spot welds will be done during the welding of the centre pillar.

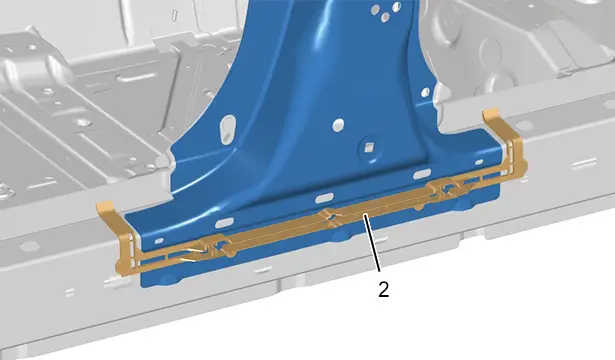

Clip in the expanding insert (2) .

11. Sealing protection

Apply :

  • A layer of etch primer to the zones exposed
  • Sealing mastic (index "A1")
  • Anti-chip protection (index "C4")

Painting, then spraying of the index "C5" product into the hollow sections in the repair zone.

12. Additional operations

Refit the electrical harnesses and reinstall all removed components.

13. Reinitialisation

ESSENTIAL : Reactivate the pyrotechnic systems .

Restore the voltage supply to the vehicle.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries.
