Peugeot 308: Changing a bulb

In some weather conditions (e.g. low temperature or humidity), misting on the internal surface of the glass of the headlamps and rear lamps is normal, and will disappear after the lamps have been on for a few minutes.

The headlamps have polycarbonate lenses with a protective coating:

- Do not clean them with a dry or abrasive cloth, nor with detergent or solvent products.

- Use a sponge and soapy water or a pH neutral product.

- When using a high-pressure washer on persistent marks, do not keep the lance directed towards the headlamps, lamps or their edges for too long, so as not to damage their protective coating and seals.

Light-emitting diode (LED) headlamps and lamps

Depending on version, the affected types of headlamps/lamps are:

- LED technology headlamps.

- Peugeot Matrix LED Technology 2.0 headlamps.

- Offset daytime running lamps/sidelamps/ direction indicators.

- Direction indicator side repeaters.

- Side spotlamps.

- Full LED technology rear lamps.

- LED technology rear lamps.

- Brake lamps.

- Third brake lamp.

- Number plate lamps.

Replacement of this type of bulb

Contact a PEUGEOT dealer or a qualified workshop.

Do not touch LED or Full LED technology headlamps - risk of electrocution!

Never look too closely at the light beam of LED technology lamps - risk of serious eye injury!

Front lamps

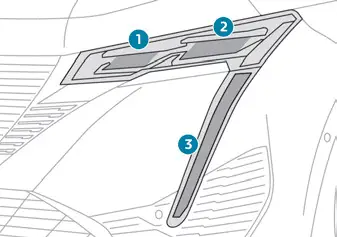

Model with LED technology headlamps

1. Main beam headlamps
2. Dipped beam headlamps
3. Direction indicators
4. Daytime running lamps/Sidelamps

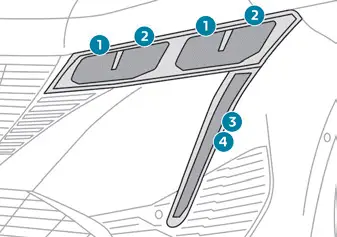

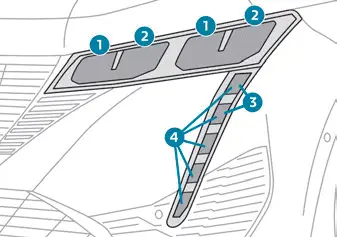

Model with Peugeot Matrix LED Technology 2.0 headlamps

1. Dipped beam/main beam headlamps with Matrix Beam function
2. Dipped beam/main beam headlamps
3. Daytime running lamps/Sidelamps/Direction indicators

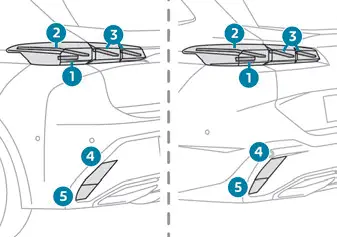

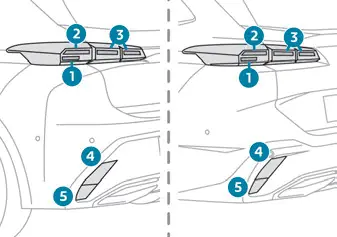

Rear lamps

Model with LED lamps

Model with Full LED 3D lamps

1. Direction indicators (LED)
2. Brake lamps/sidelamps (LED)
3. Sidelamps (LED)
4. Foglamps (P21W)
5. Reversing lamps (W16W)

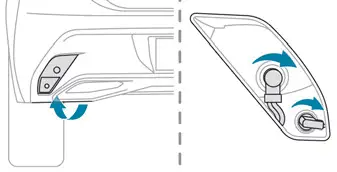

Reversing lamps/Foglamps

These bulbs are replaced from outside the rear bumper.

► Remove the fixing screw(s) from the access flap located under the bumper using a Torx screwdriver.

► Unclip the access flap.

► Turn the bulb holder a quarter turn and remove it.

► For the foglamp: turn the bulb a quarter turn and replace it.

► For the reversing lamp: pull out the bulb and replace it.

When changing the bulb within a few minutes of switching off the ignition, take care not to touch the exhaust - risk of burns
