Peugeot 308: Removing - refitting : Dashboard

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Location

"A" : left-hand drive.

"B" : right-hand drive.

Identification	Description	Quantity

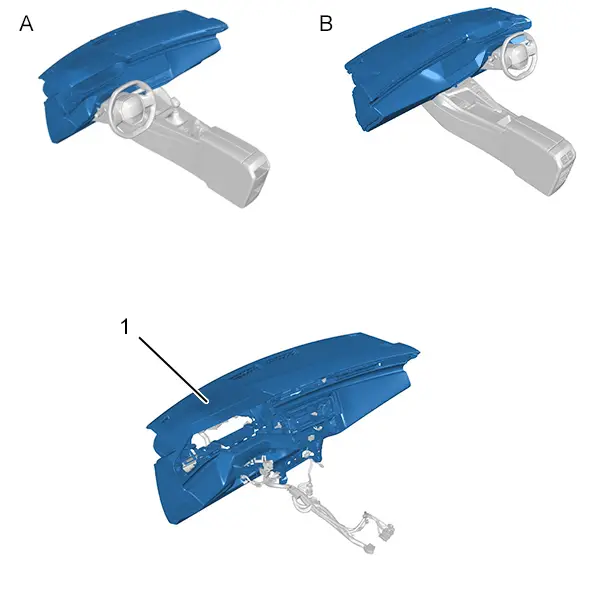

(1)	Dashboard	1

2. Tooling

Tool	Reference	Description

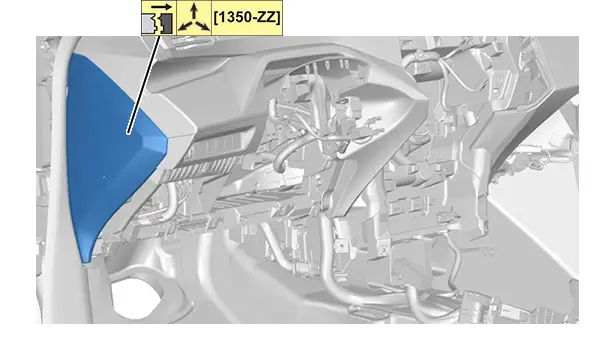

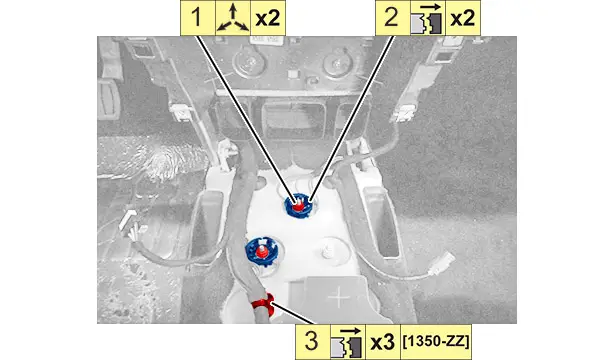

	[1350-ZZ]	Stripping tools

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries ( depending on the equipment ).

Remove :

• The centre console
• The passenger storage compartment
• The steering column
• The scuttle panel
• The multifunction screen

4. Removing

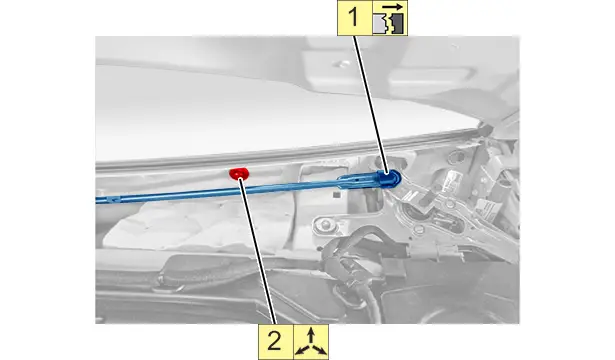

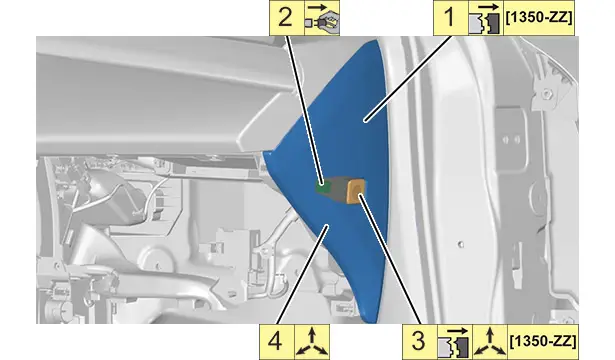

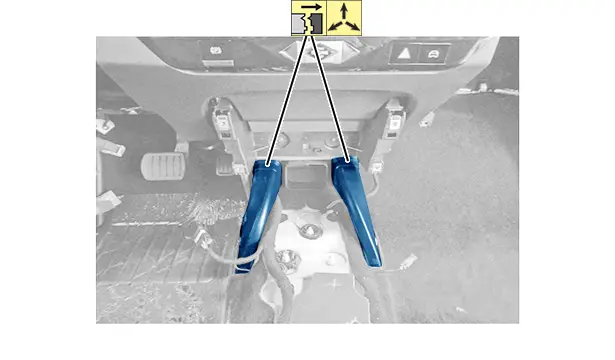

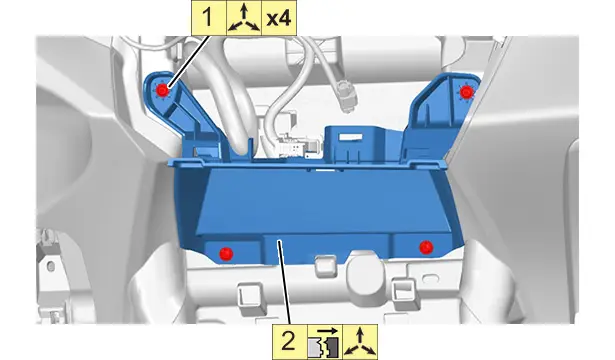

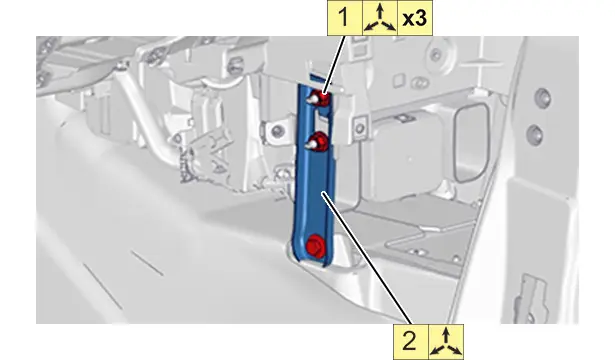

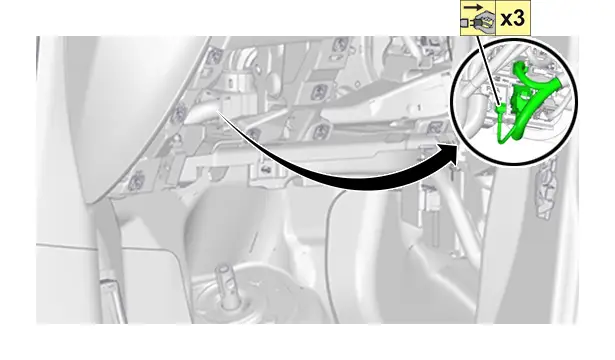

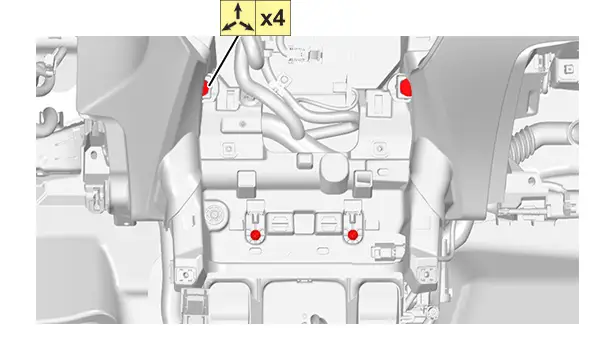

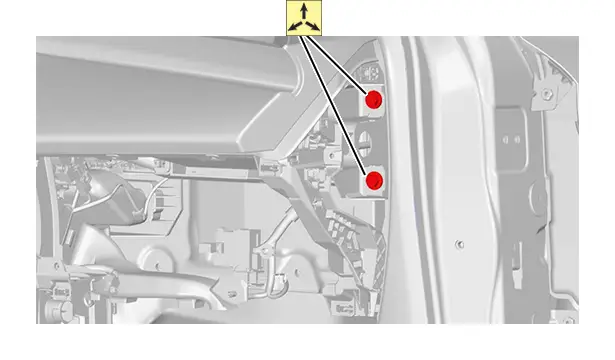

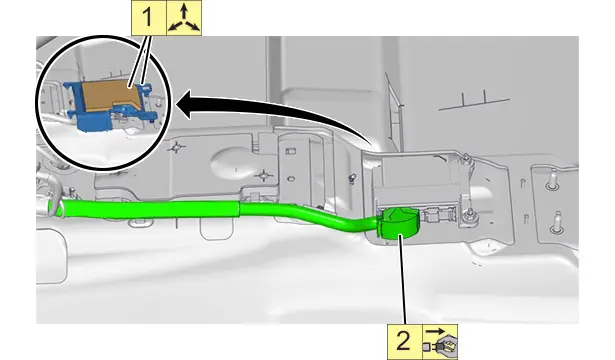

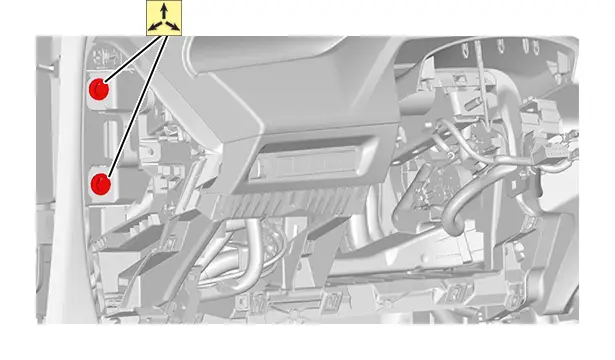

Remove the sunshine sensor .

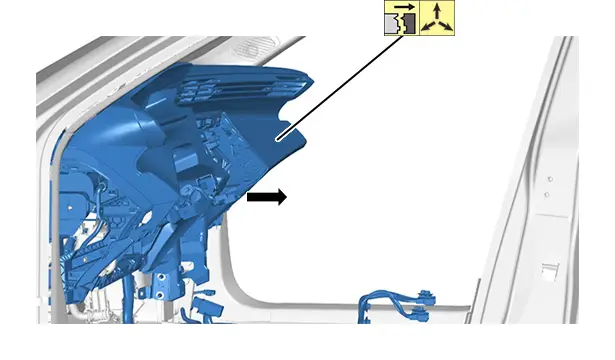

CAUTION : Store the dashboard, placing it on a table and protecting it ; With bubblewrap.

5. Refitting

CAUTION : Always replace the tie straps and fasteners that are faulty.

N.B. : Observe the tightening torques.

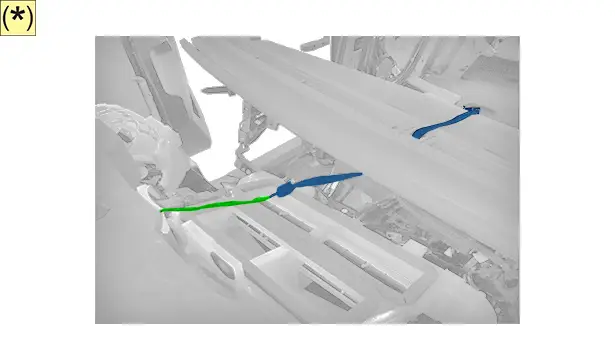

N.B. : Secure the sunshine sensor electrical wire on the soundproofing ;Using adhesive tape.

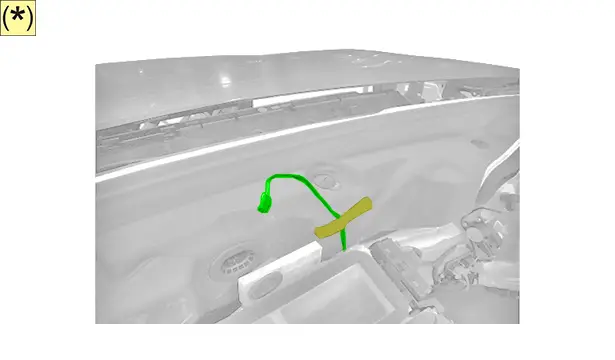

N.B. : Pass the sunshine sensor electrical wire ;Using a grommet.

Proceed in the reverse order to removal.

6. Additional operations

Refit :

• The centre console
• The passenger storage compartment
• The steering column
• The scuttle panel
• The multifunction screen

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries ( depending on the equipment ).

7. Check

Check the operation of the various equipment.
