Peugeot 308: Removing - refitting : Radio frequency connectivity box (BSRF) - Back-up battery

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Location

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the headlining.

4. Removing

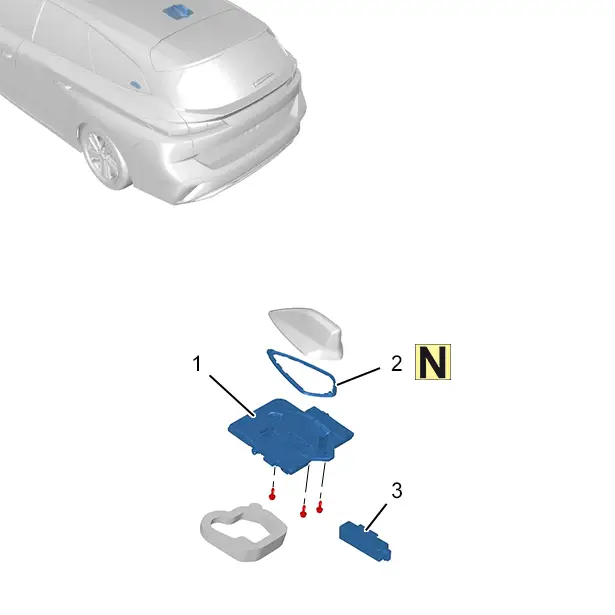

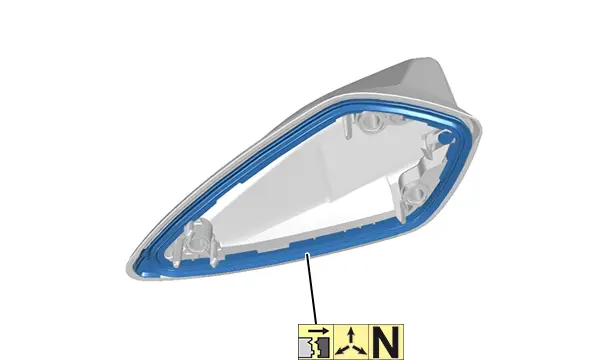

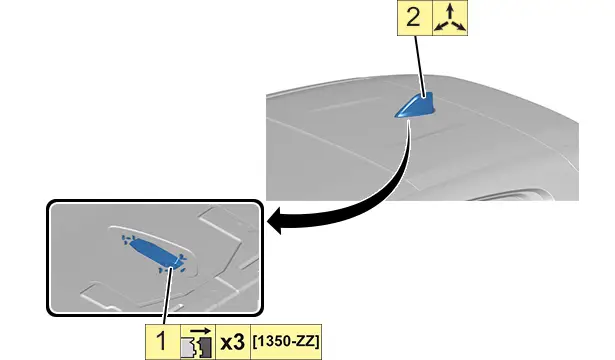

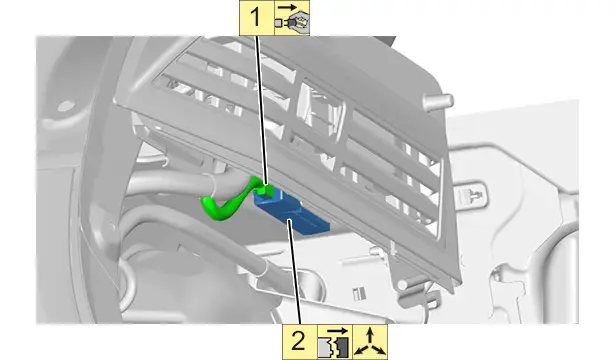

4.1. Radio frequency connectivity box (BSRF)

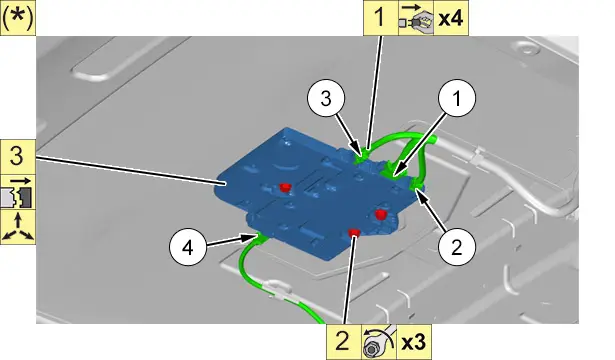

N.B. : Disconnect the connectors (In the order shown).

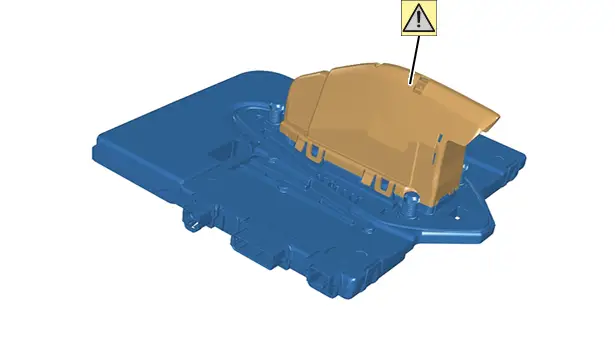

CAUTION : Do not touch the top of the radio frequency connectivity box (BSRF).

4.2. Back-up battery

Remove the rear left-hand wing interior trim .

5. Refitting

CAUTION : Check the radio frequency connectivity box (BSRF) back-up battery status ; Using the diagnostic tool.

CAUTION : Check for foam on the headlining .

CAUTION : Tighten the bolts ; to 0,8 daNm.

Proceed in the reverse order to removal.

6. Additional operations

Refit the headlining .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Rebrancher la ou les batteries de servitude (suivant équipement).

7. Check

Check the operation of the various equipment.
