Peugeot 308: Removing - refitting : Front radar

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

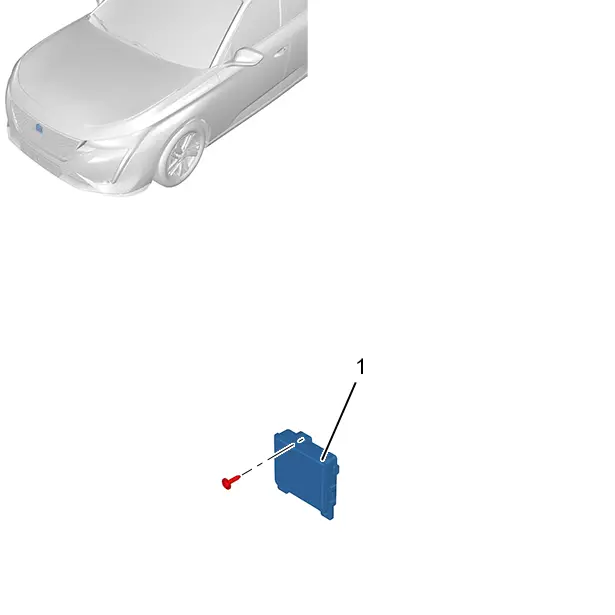

1. Location

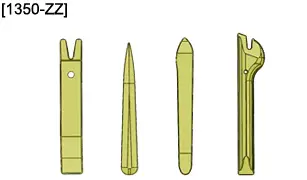

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the front bumper .

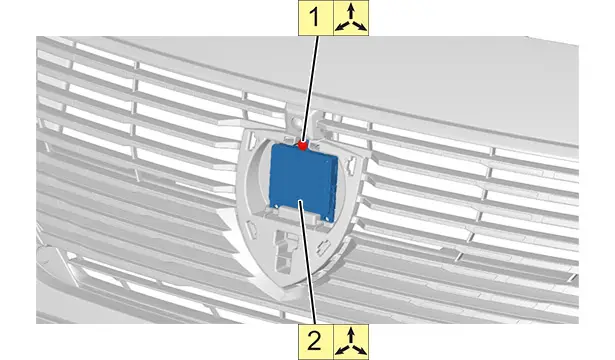

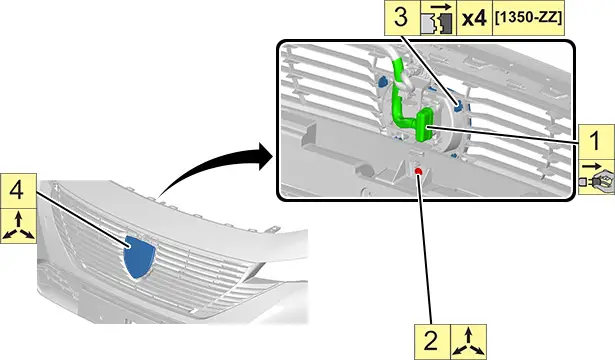

4. Removing

5. Refitting

CAUTION : If the distance alert unit is replaced it must be initialised ; Using the diagnostic tool.

Proceed in the reverse order to removal.

6. Additional operations

Refit the front bumper .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

Adjust the front radar .

7. Check

Check the operation of the various equipment.
