Peugeot 308: Tightening torques : Components of the electric drive train
CAUTION : Observe the tightening torques.
1. Electric drive machine assembly, electric drive machine inverter and reduction gear

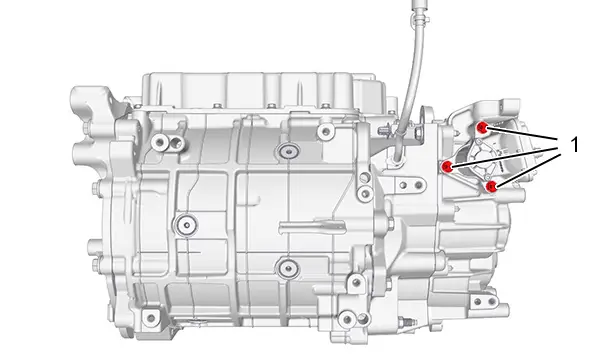

1.1. Electric drive machine assembly, electric drive machine inverter and reduction gear
| Marking | Description | Tightening torque |
| (1) | Bolt (Park finger locking actuator / Reduction gear ) | 1 daNm |

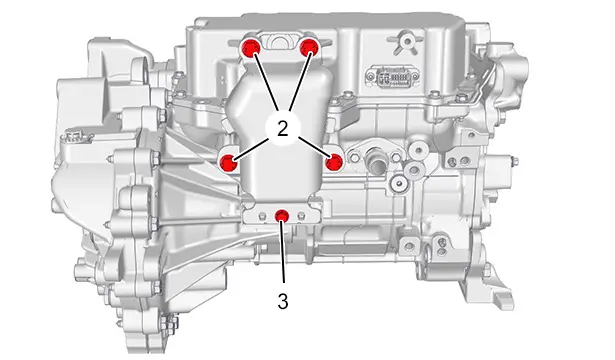

1.2. Electric drive machine assembly, electric drive machine inverter and reduction gear
| Marking | Description | Tightening torque |
| (2) | Bolt (Protector (Electric power circuit connectors) / Electric drive machine inverter) | 2 daNm |
| (3) | Bolt (Protector (Electric power circuit connectors) / bracket ) | 0.8 daNm |

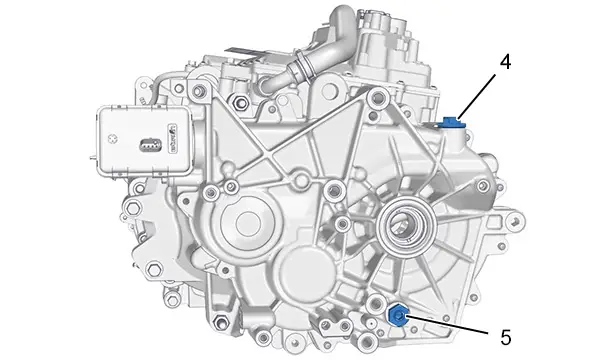

1.3. Electric drive machine assembly, electric drive machine inverter and reduction gear
| Marking | Description | Tightening torque |
| (4) | Bolt ( filler plug / Reduction gear ) | 1,2 daNm |
| (5) | Bolt (Drain cap / Reduction gear ) | 3,5 daNm |

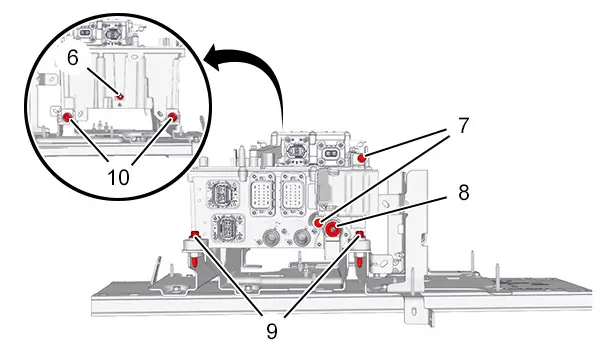

1.4. On-board charger/direct voltage transformer assembly / Electric drive machine
| Marking | Description | Tightening torque |
| (6) | Nut (Earth cable / On-board charger/direct voltage transformer assembly) | 0,8 daNm |
| (7) | Bolt (Protector / On-board charger/direct voltage transformer assembly) | 0,8 daNm |
| (8) | Nut (Positive cable / On-board charger/direct voltage transformer assembly) | 2 daNm |
| (9) | Bolt (On-board charger/direct voltage transformer assembly / On-board charger bracket ) | 2 daNm |
| (10) | Bolt (On-board charger/direct voltage transformer assembly / On-board charger bracket ) | 2 daNm |

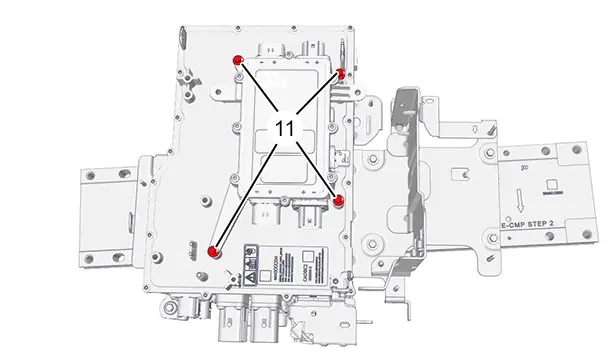

1.5. Junction box / On-board charger/direct voltage transformer assembly
| Marking | Description | Tightening torque |
| (11) | Bolt (Junction box / On-board charger/direct voltage transformer assembly) | 0,8 daNm |

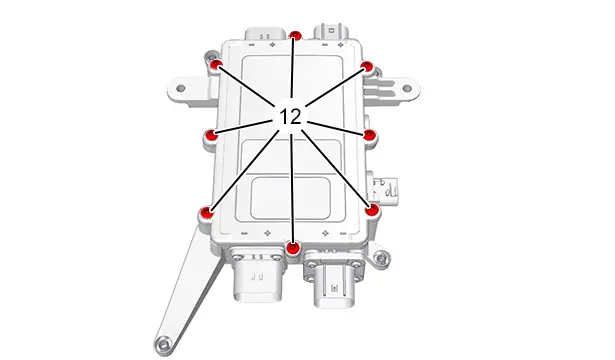

| Marking | Description | Tightening torque |
| (12) | Bolt (Cover (Junction box) / Junction box) | 0,5 daNm |

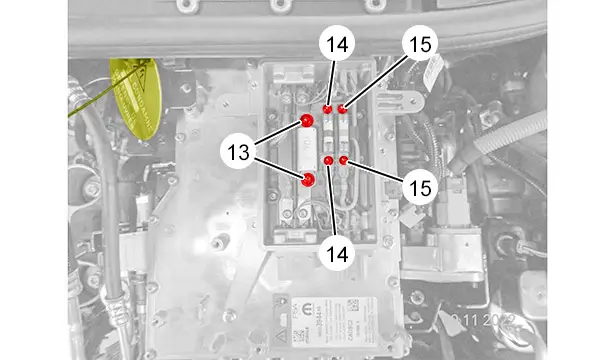

| Marking | Description | Tightening torque |
| (13) | Bolt (70 A fuse / Junction box) | 0,7 daNm |
| (14) | Bolt (50 A fuse / Junction box) | 0,45 daNm |
| (15) | Bolt (40 A fuse / Junction box) | 0,45 daNm |

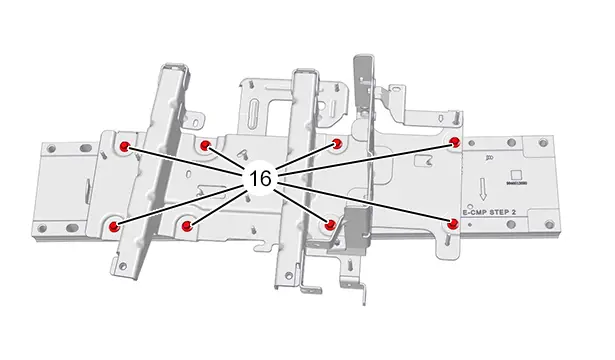

1.6. On-board charger/direct voltage transformer assembly / Electric drive machine
| Marking | Description | Tightening torque |
| (16) | Bolt (On-board charger bracket / Electric drive machine and reduction gear assembly crossmember) | 2 daNm |

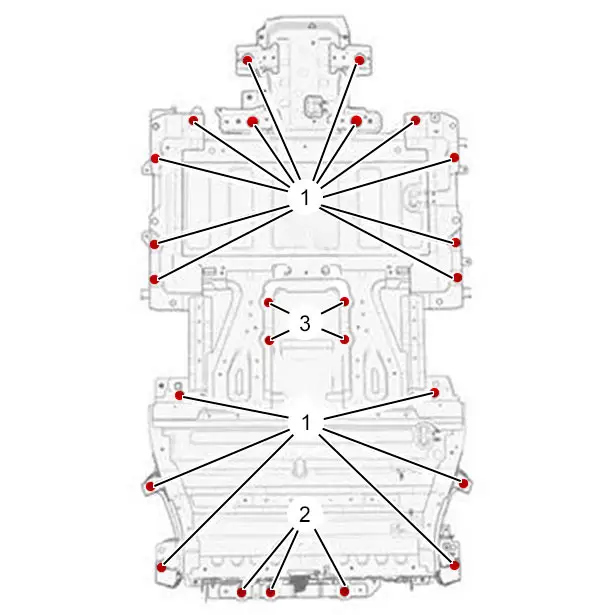

2. Traction battery
| Marking | Description | Tightening torque |
| (1) | Bolt (Traction battery / Body) | 6 daNm |
| (2) | Bolt (Traction battery / Body) | 2 daNm |
| (3) | Bolt (Traction battery / Body) | 10 daNm |

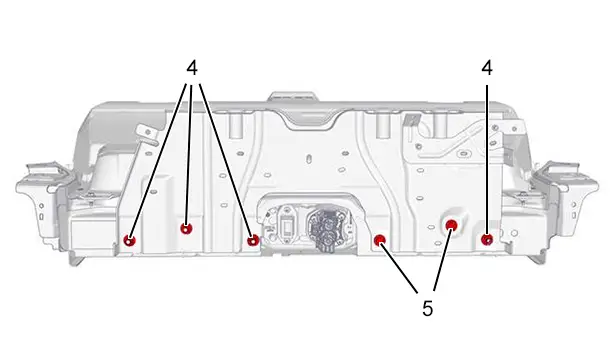

| Marking | Description | Tightening torque |
| (4) | Nut (Traction battery support / Traction battery) | 2 daNm |
| (5) | Bolt (Traction battery support / Traction battery) | 2 daNm |

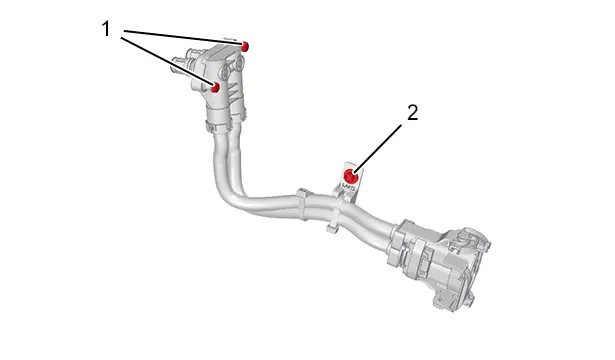

3. Electric power circuit connectors
| Marking | Description | Tightening torque |
| (1) | Bolt (Electric power circuit connectors / Electric drive machine inverter) | 0,8 daNm |
| (2) | Bolt (Electric power circuit connectors / support ) | 0,8 daNm |

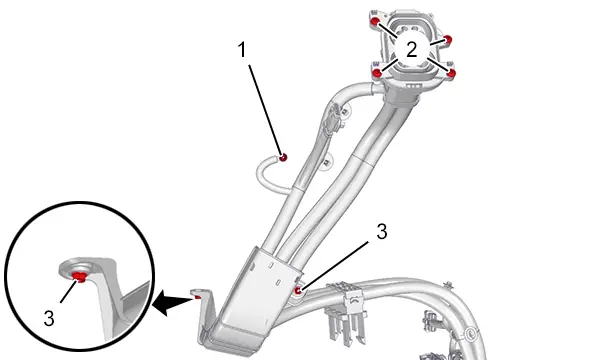

4. Charging socket unit
| Marking | Description | Tightening torque |
| (1) | Nut (Earth cable / Body) | 0,8 daNm |
| (2) | Bolt (Charging socket unit / Body) | 0,8 daNm |
| (3) | Nut (Charging socket unit / Body) | 0,8 daNm |
