Peugeot 308: Removing - refitting : Rear door window

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Side section / Fixed side glass / Removing - refitting : Rear door window

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

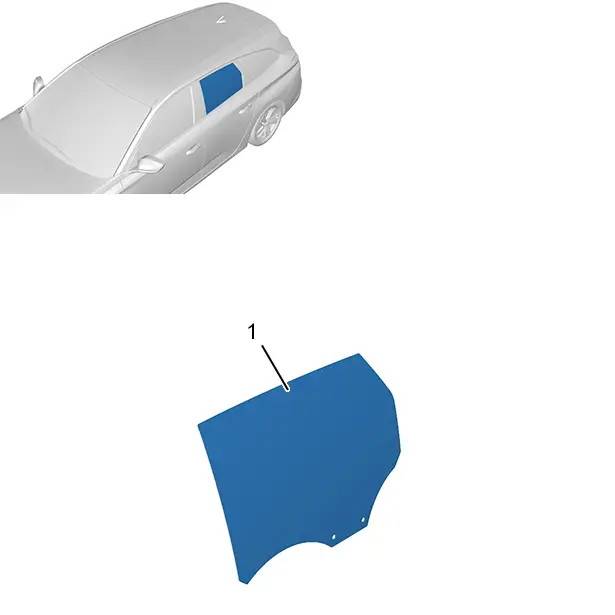

1. Location

Identification Description Quantity
(1) Rear door window 1

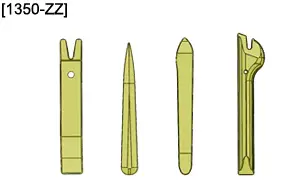

2. Tooling

Tool Reference Description

[1350-ZZ] (*) Stripping tools

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Common operations

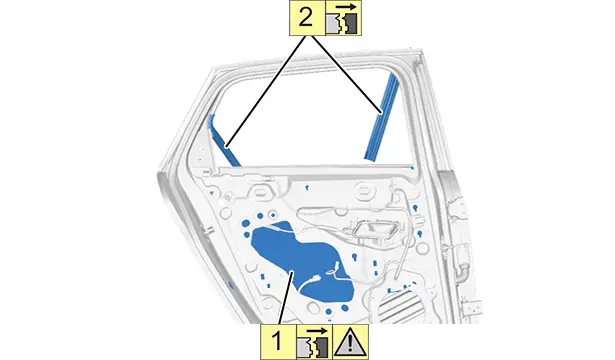

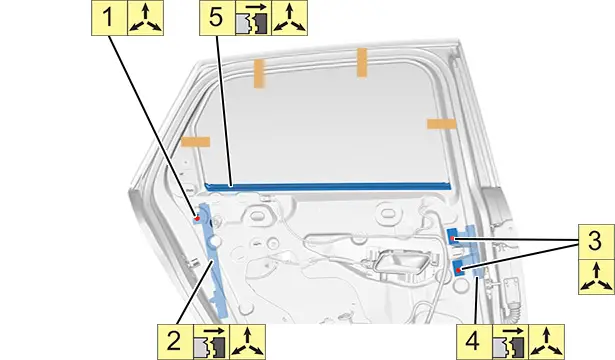

Remove the rear electric window mechanism .

5. Removing

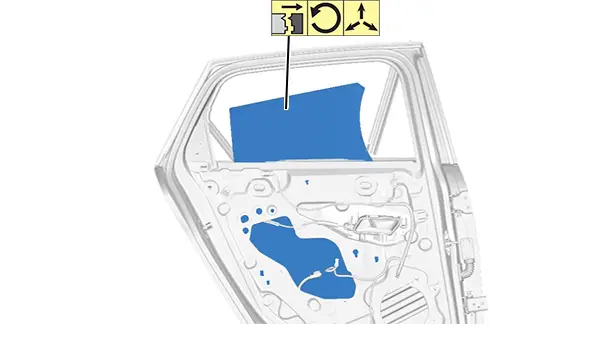

CAUTION : Cut the adhesive tape. Place the rear side door window in the base of the door ; Carefully.

6. Refitting

Proceed in the reverse order to removal.

7. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

8. Common operations

Refit the rear electric window mechanism .
