Peugeot 308: Removing - refitting : Front bumper proximity sensor / Blind spot sensor

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

Key : Operation symbols .

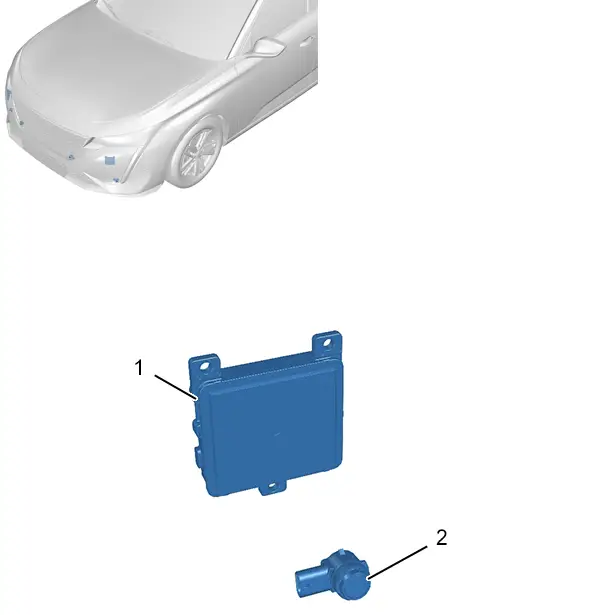

1. Location

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

CAUTION : Do not drop the proximity sensor, do not tap on the membrane, do not use a sharp tool, do not push an instrument into the resinous part, do not touch the connector, do not apply any lateral force or rotation to the external ring and the membrane of the proximity sensor.

CAUTION : Do not rotate the proximity sensor .

Remove the front bumper .

4. Removing

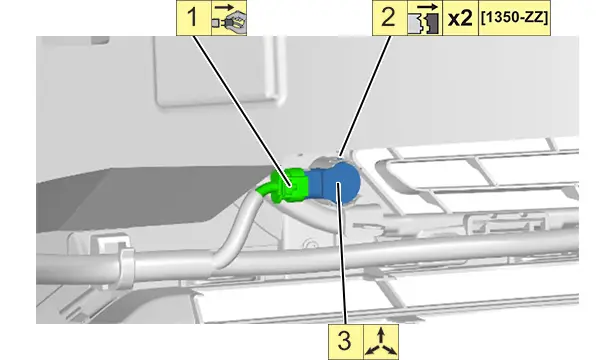

4.1. Front bumper proximity sensor

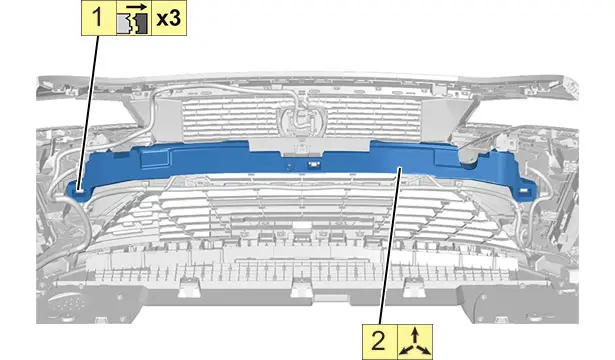

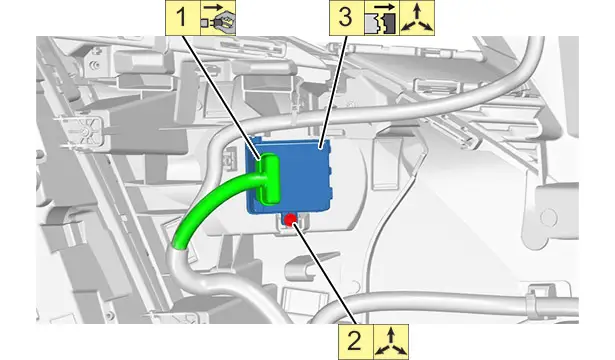

4.2. Blind spot sensor (Left-hand side )

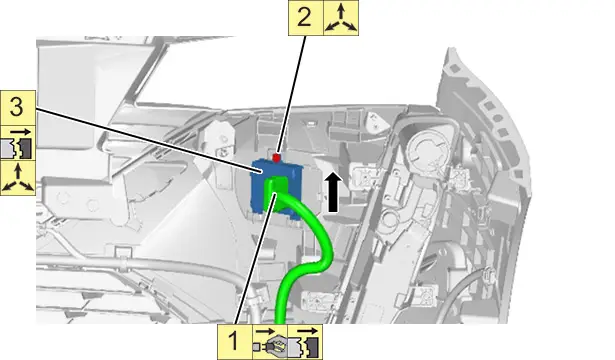

4.3. Blind spot sensor (Right-hand side )

5. Refitting

Proceed in the reverse order to removal.

6. Additional operations

Refit the front bumper .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).

7. Check

Check the operation of the various equipment.
