Peugeot 308: Removing - refitting : Front door window

ESSENTIAL : Observe the safety and cleanliness requirements .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

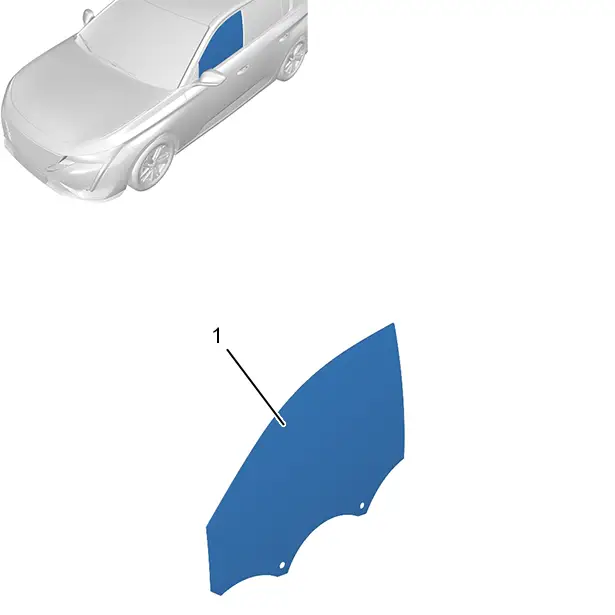

1. Location

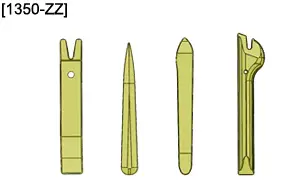

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove :

• The front door panel
• The sealing sheet
• The speaker

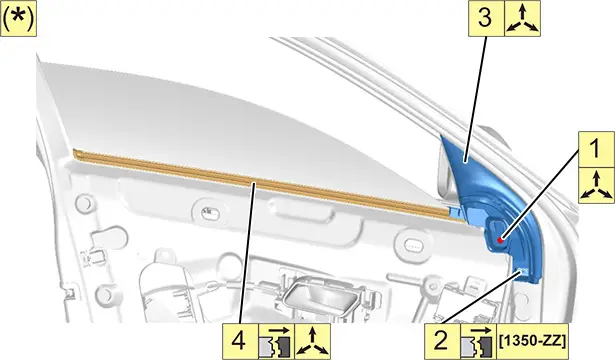

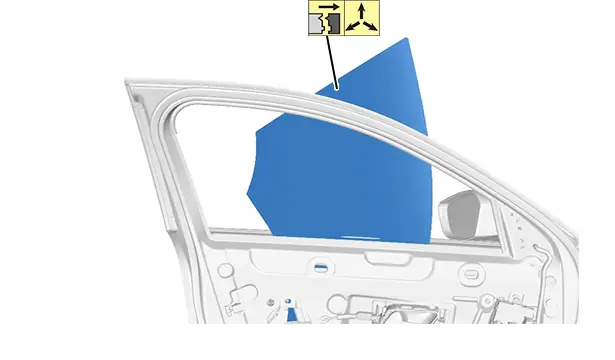

4. Removing

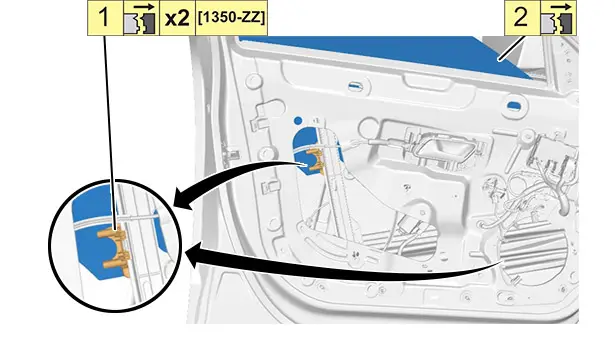

N.B. : Temporarily reconnect the electric window switch and lower the window by approximately 70 mm to permit access to the window clips .

5. Refitting

Proceed in the reverse order to removal.

6. Additional operations

Refit :

• The speaker
• The sealing sheet
• The front door panel

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
