ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.
1. Replacement of parts in all cases
Description | Quantity |
Sealing sheet | 1 |
2. Tooling
Tool | Reference | Description |
| [1350-ZZ] | Stripping tools |
3. Preliminary operations
CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries (depending on equipment).
4. Stripping

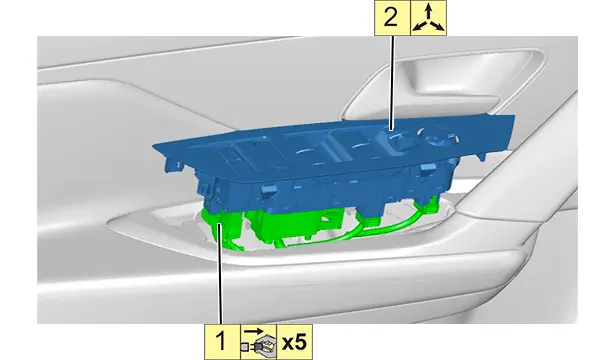

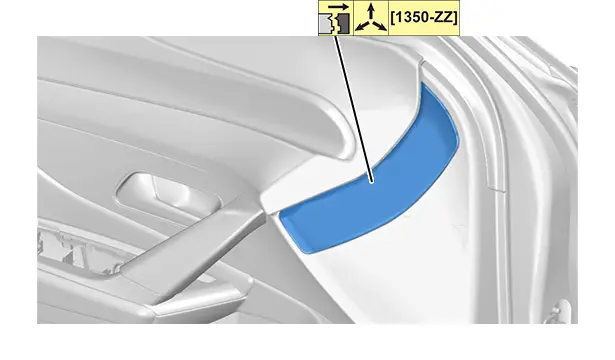

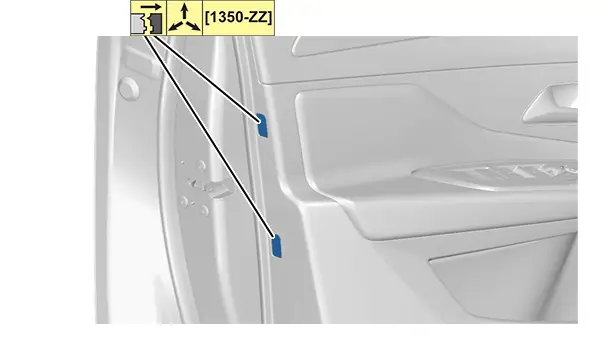

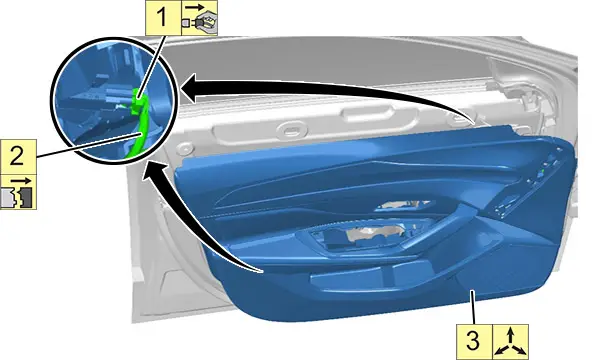

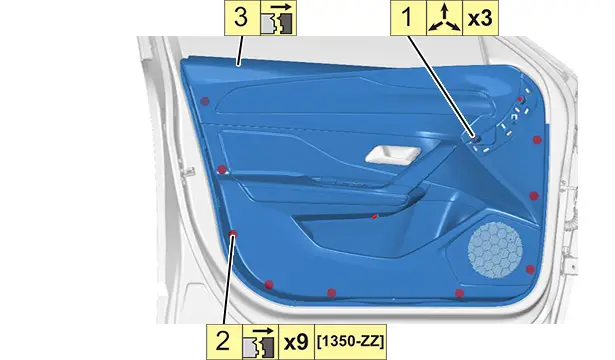

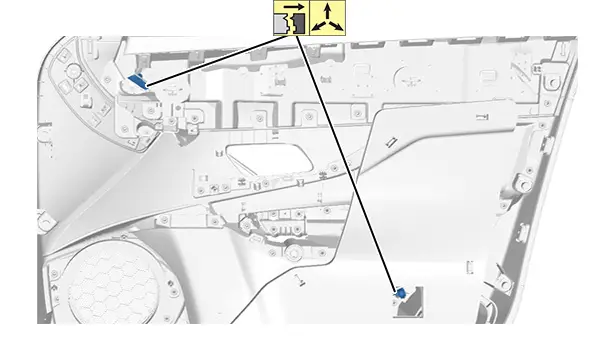

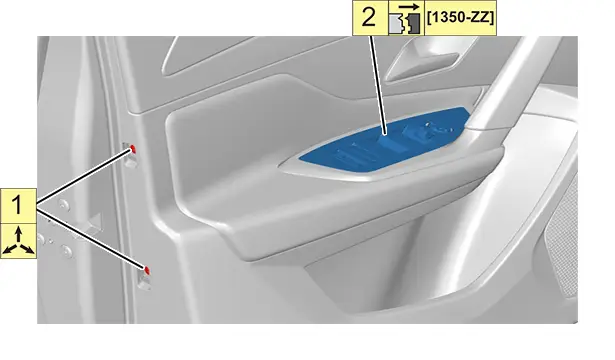

4.1. Front door trim / Electric window switch

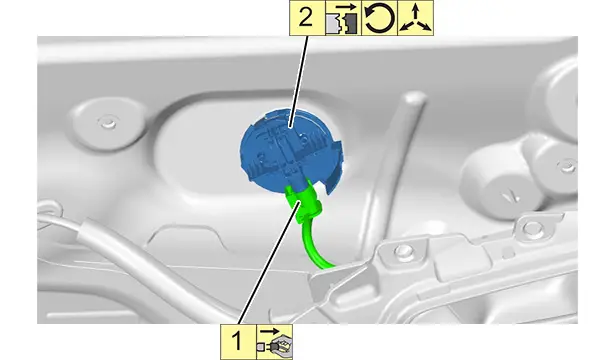

4.2. Ambience lamp / Glove box illumination
4.3. Lateral airbag acceleration sensors

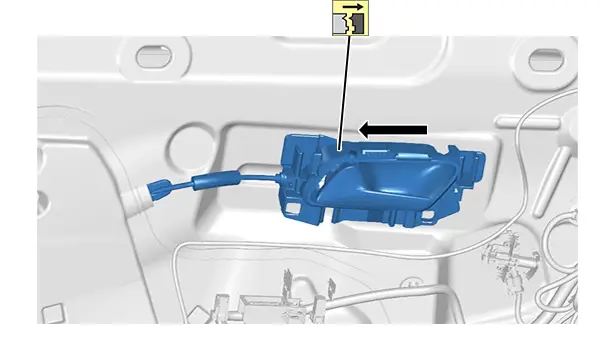

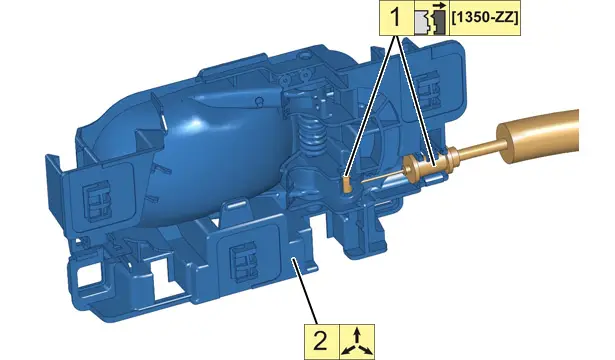

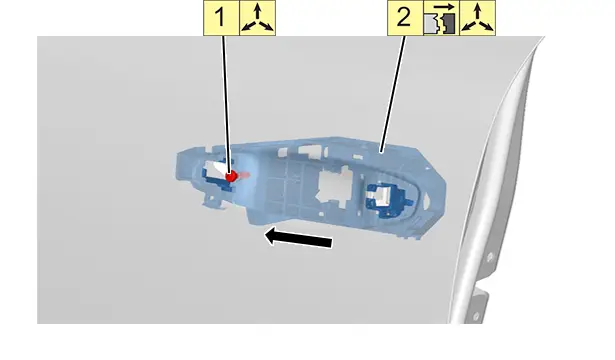

4.4. Interior door opening control
4.5. Exterior mirror
Remove the exterior mirror
.

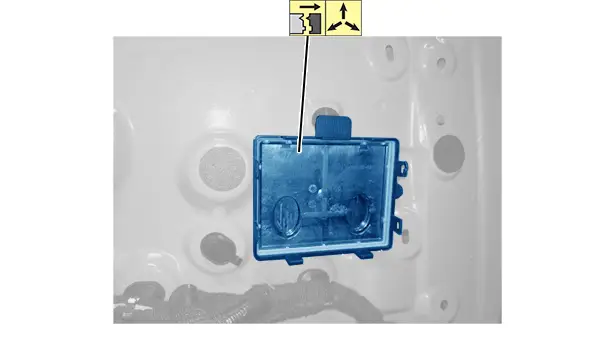

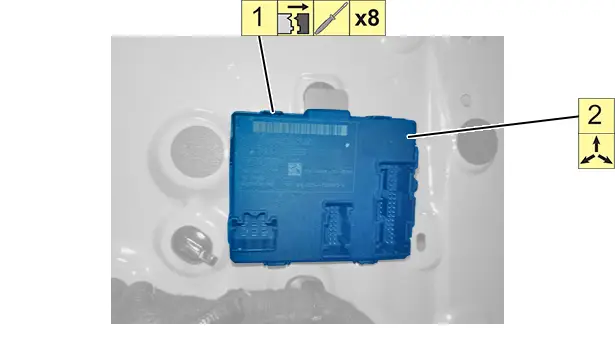

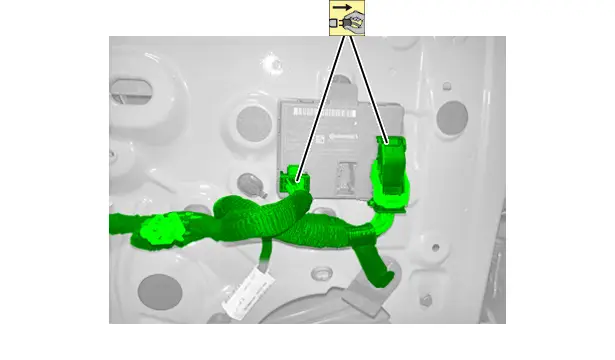

4.6. Front door electronics
4.7. Speaker
Remove the front door speaker
.

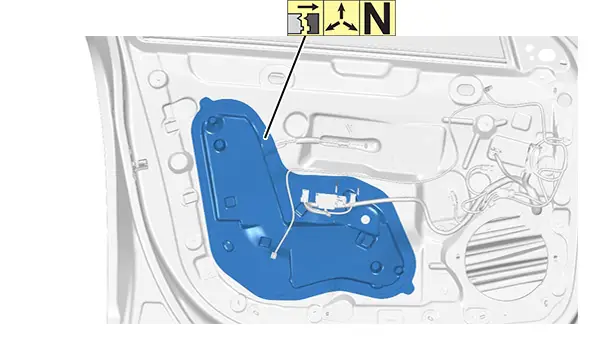

4.8. Sealing sheet

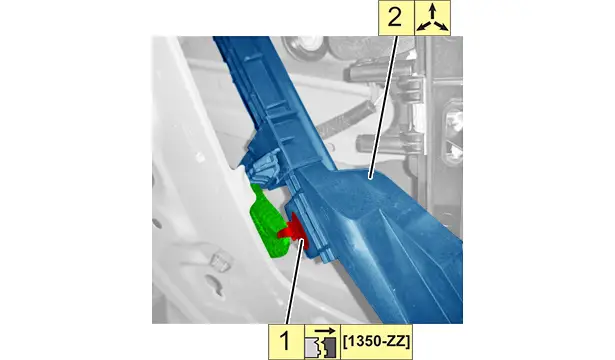

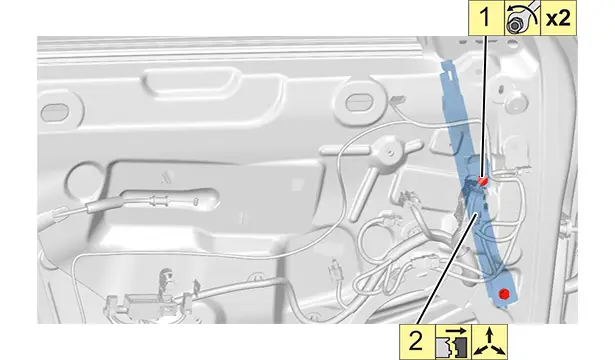

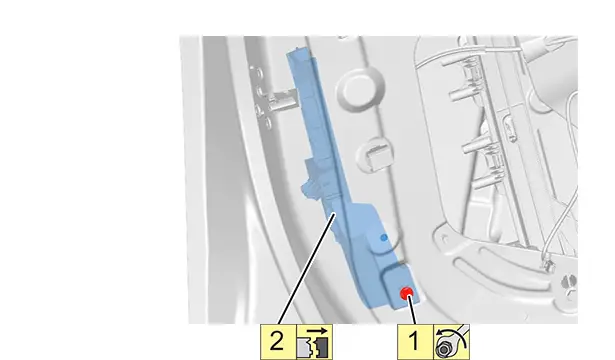

4.9. slide guides
4.10. Front door electric window mechanism
Remove the front window mechanism
.
4.11. Front door window
Remove the front door window
.

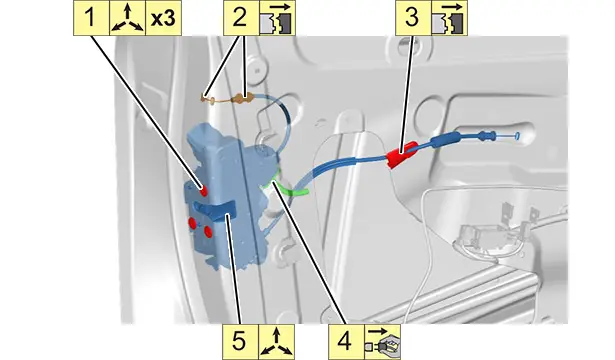

4.12. Front door lock
N.B. : (*) Release the lock through the interior opening of the door.

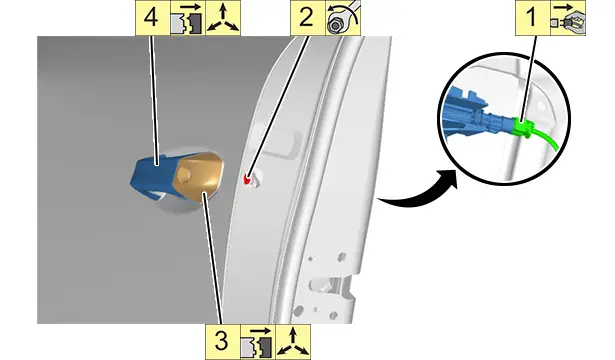

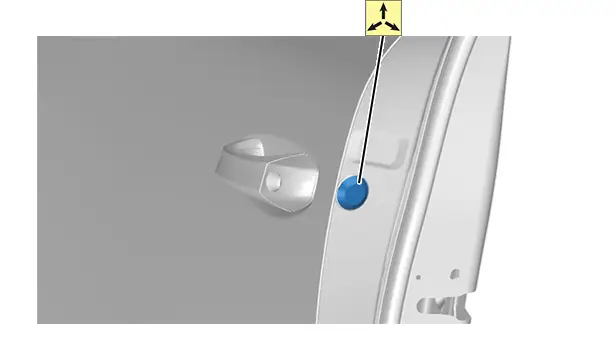

4.13. Front door external handle

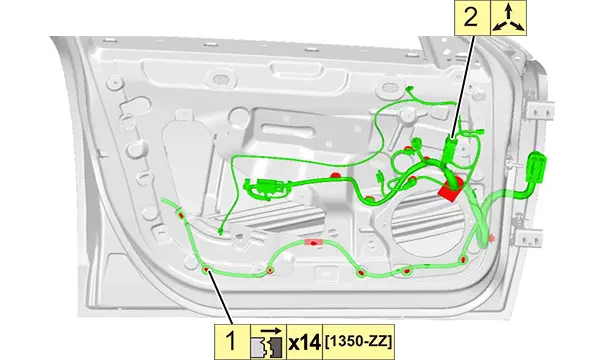

4.14. Electrical harness

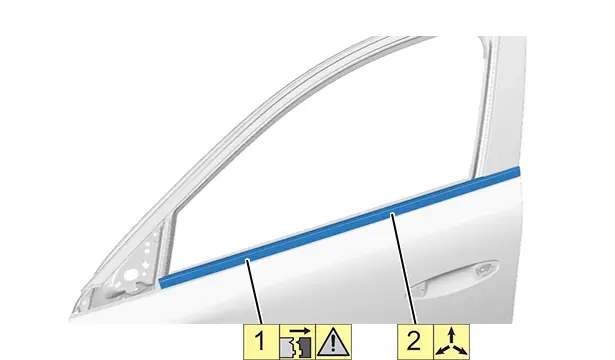

4.15. Window exterior weatherstrip seal
CAUTION : Carefully unclip the exterior weatherstrip seal .

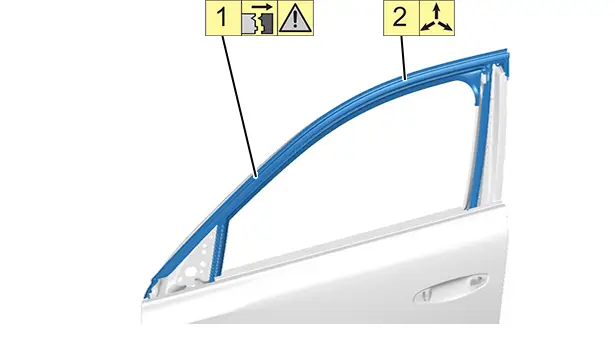

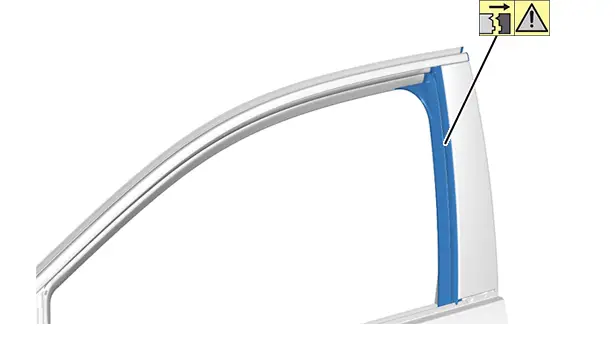

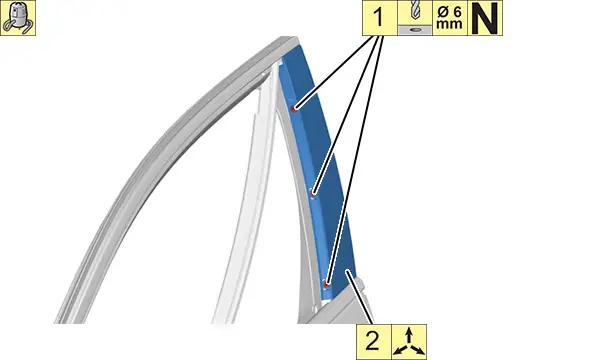

4.16. Front door pillar trim
CAUTION : Carefully dislodge the front door frame seal .

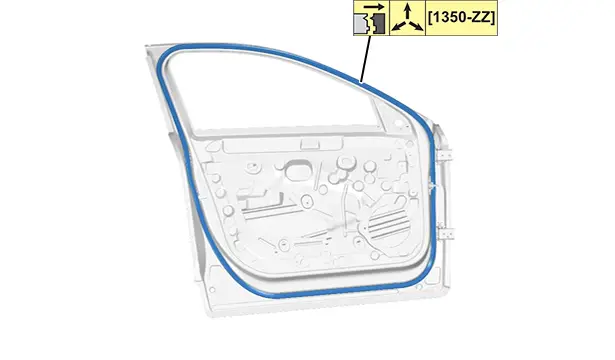

4.17. Door frame seals
CAUTION : Carefully dislodge the front door frame seal .

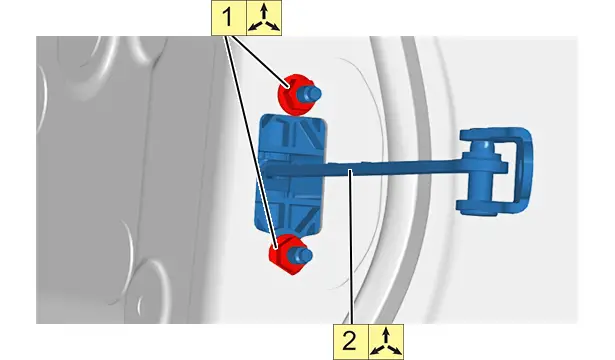

4.18. Door check strap

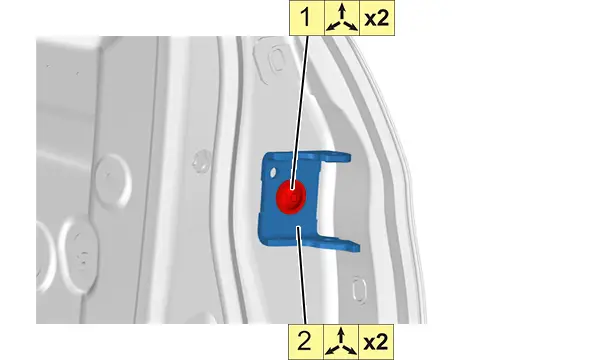

4.19. Door hinges
4.20. Seals
5. Assembling
N.B. : If replacing the front door interior trim, programme the ambiance lamp ; Using the tool Diagbox.
N.B. : Always replace clips and fasteners that are defective.
CAUTION : Fit new sealing components which must be fitted without folds and without tears . It is vital for the contact surface on the door panel to be perfectly clean. Apply a roller on the pre-bonded parts of the sheet. These requirements are essential in order to prevent any entry of water, dust or noise.
Carry out the operations in the reverse order to the stripping operations.
6. Additional operations
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries (depending on equipment).
7. Check
Check the operation of the various equipment.
