Peugeot 308: Front seats

Before moving the seat backwards, ensure that there is no person or object that might prevent the full travel of the seat.

There is a risk of trapping or pinching passengers if present in the rear seats or of jamming the seat if large objects are placed on the floor behind the seat.

• Front head restraints
• Memorising driving positions
• Multipoint massage

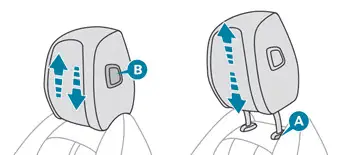

Front head restraints

Adjusting the height

Upwards:

► Pull the head restraint up to the desired position; you can feel the head restraint clicking into position.

Downwards:

► Depending on equipment, press lug A or button B and then, while still pressing, lower the head restraint.

The head restraint is correctly adjusted when its upper edge is level with the top of the head.

Removing a head restraint

► Pull the head restraint fully up.

► Press lug A to release the head restraint and raise it fully.

► Stow the head restraint securely.

Refitting a head restraint

► Insert the head restraint rods into the guides in the corresponding seat backrest.

► Push the head restraint fully down.

► Press the lug A to release the head restraint and push it down.

► Adjust the height of the head restraint.

Never drive with the head restraints removed; they should be in place and adjusted for the occupant of the seat.

Manual adjustments

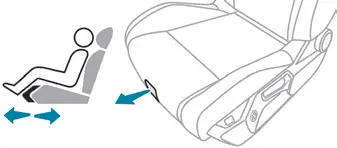

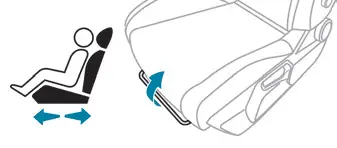

Longitudinal

► Raise the control bar and slide the seat forwards or backwards.

► Release the control bar to lock the seat in position on one of the notches.

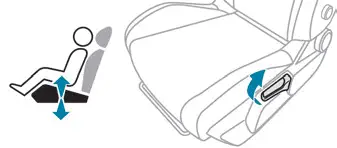

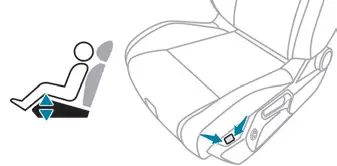

Height

► Pull the control upwards to raise or push it downwards to lower, until you obtain the position required.

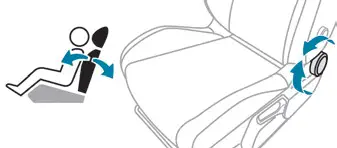

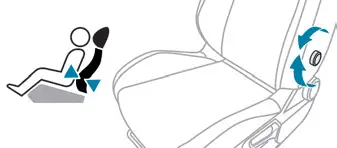

Backrest angle

► Turn the knob to obtain the desired angle.

Lumbar

► Turn the knob to obtain the desired level of lumbar support.

Seat cushion length

► Pull the handle forwards to release the cushion, then move the front part of the cushion forwards or backwards.

Electric adjustments

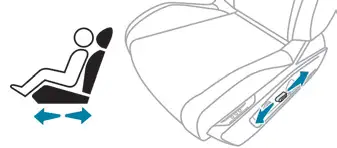

Longitudinal

► Push the control forwards or backwards to slide the seat.

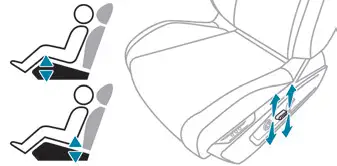

Cushion height and angle

► Tilt the rear of the control upwards or downwards to obtain the required height.

► Tilt the front of the control upwards or downwards to obtain the required angle.

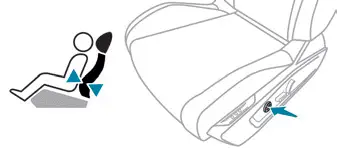

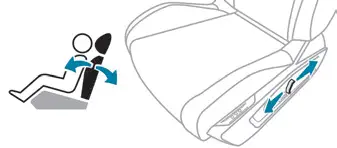

Backrest angle

► Tilt the control forwards or rearwards.

Lumbar

The control allows independent adjustment of the depth and vertical position of the lumbar support.

► Press and hold the front or rear of the control to increase or reduce the lumbar support.

► Press and hold the top or bottom of the control to raise or lower the lumbar support area.

Seat cushion angle

This electric adjustment control is present on "AGR" certified manually-adjustable seats.

► Press and hold the front or rear of the button to raise or lower the front part of the seat cushion.

Memorising driving positions

Associated with the electrically-adjusted driver's seat, this function allows two driving positions to be memorised, to make these adjustments easier if there are frequent driver changes.

It records the electric adjustments made to the seat and door mirrors.

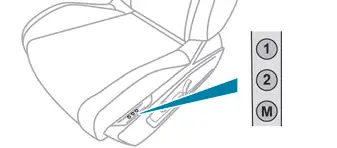

Using buttons 1/2/M

► Enter the vehicle and switch the ignition on.

► Adjust the seat and the door mirrors.

► Press button M, then press button 1 or 2 within 4 seconds.

An audible signal confirms the memorisation.

Memorising a new position cancels the previous position.

Recalling a stored position

While the seat is moving, take care that no person or object hinders the automatic movement of the seat.

With the ignition on or engine running

► Press button 1 or 2 to recall the corresponding position.

An audible signal sounds when adjustment is complete.

You can interrupt the current movement by pressing button M, 1 or 2 or by using one of the seat adjustment controls.

A stored position cannot be recalled while driving.

The recalling of stored positions is deactivated 45 seconds after switching off the ignition.

Heated seats

Without i-Toggles

On/Off

► Press the button corresponding to the seat.

► Each press changes the heating level; the corresponding number of indicator lamps come on.

► To switch off the heating, press the button until all of the indicator lamps are off.

The system status is memorised when the ignition is switched off.

With i-Toggles

Activation/Deactivation

In the Seats touch screen application, select the Seats tab.

► Select the driver or passenger seat.

The corresponding page is displayed with the last memorised settings.

If the settings are suitable, press to activate/deactivate the function in the Seats application.

If no action is taken, the display returns to its initial state.

The function status is not memorised when the ignition is switched off.

Changing settings

► In the Seats page, select the seat concerned.

► Select an intensity from the three preset levels: "1" (Low), "2" (Normal) or "3" (High).

The settings are memorised when the ignition is switched off.

Do not use the function when the seat is not occupied.

Reduce the heating intensity as soon as possible.

When the seat and passenger compartment have reached a satisfactory temperature, switch the function off; reducing electrical consumption in turn decreases energy consumption.

Prolonged use of heated seats is not recommended for people with sensitive skin.

There is a risk of burns for people whose perception of heat is impaired (e.g. illness, taking medication).

To keep the heated pad intact and to prevent a short circuit:

• Do not place heavy or sharp objects on the seat.
• Do not kneel or stand on the seat.
• Do not spill liquids onto the seat.
• Never use the heating function if the seat is damp.

Multipoint massage

System with a choice of type of massage and adjustment of its intensity.

This system operates with the engine running, as well as in STOP mode of the Stop & Start.

Activation/Deactivation

In the Seats touch screen application, select the Massage tab.

► Select the driver or passenger seat.

The corresponding page is displayed with the last memorised settings.

If the settings are suitable, press to activate/deactivate the function in the Seats application.

If no action is taken, the display returns to its initial state.

The function status is not memorised when the ignition is switched off.

Changing settings

► In the Massage page, select the seat concerned.

► Select a massage intensity from the three preset levels: "1" (Low), "2" (Normal) or "3" (High).

► Select another type of massage from those offered.

The modifications are taken into account immediately and memorised when the ignition is switched off.

Once activated, the system starts a one hour massage cycle, made up of sequences of 6 minutes of massage followed by 3 minutes at rest.

The system stops automatically at the end of the cycle.
