ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

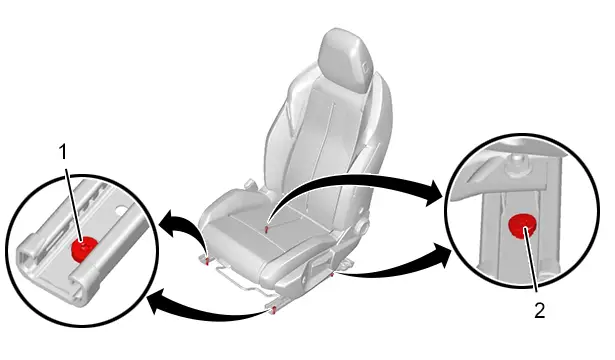

1. Front seat
Identification | Description | Tightening torque |
(1) | Bolt (Seat slide front fixing / Body) | 2,5 daNm |
(2) | Bolt (Seat slide rear fixing / Body) | 2,5 daNm |

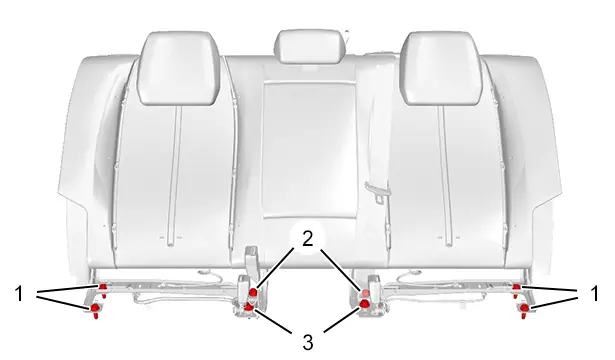

2. Rear seat
Identification | Description | Tightening torque |
(1) | Bolt (Rear bench seat backrest / Body) | 2,5 daNm |
(2) | Nut (Rear bench seat backrest / Body) | 2,5 daNm |
(3) | Bolt (Rear bench seat backrest / Body) | 2,5 daNm |

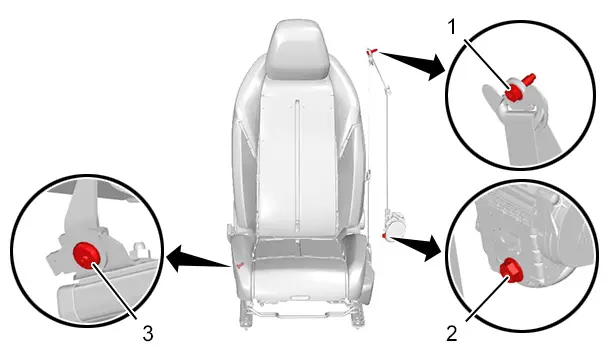

3. Front seat belt
Identification | Description | Tightening torque |
(1) | Bolt (Seat belt return / Body) | 2,5 daNm |
(2) | Bolt (Reel for seat belt) | 2,5 daNm |
(3) | Bolt (Seat belt fixed buckle / Seat) | 2,5 daNm |

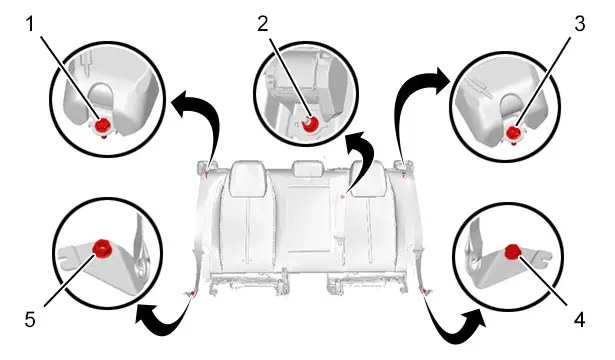

4. Rear seat belt
Identification | Description | Tightening torque |
(1) | Bolt (Reel for seat belt / Body) | 2,5 daNm |
(2) | Nut (Central seat belt inertia reel / Seat) | 2,5 daNm |
(3) | Bolt (Reel for seat belt / Body) | 2,5 daNm |
(4) | Bolt (Seat belt / Body) | 2,5 daNm |
(5) | Nut (Seat belt / Body) | 2,5 daNm |
