Peugeot 308: Removing - refitting : Badge

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

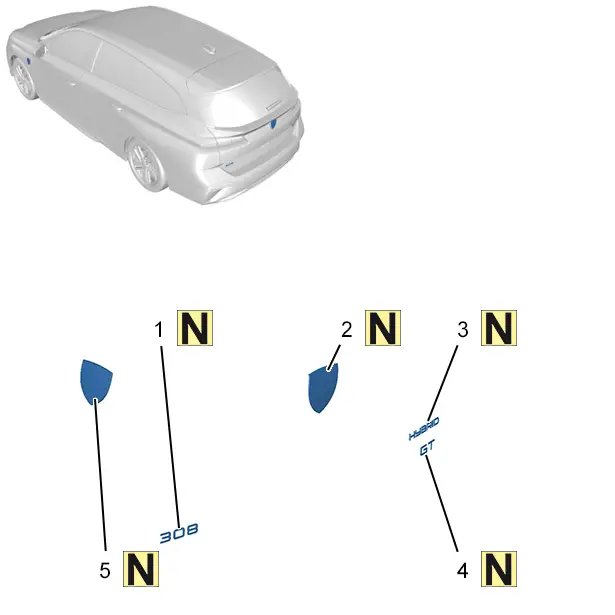

1. Location

Identification	Description	Quantity
(1)	"Model" badge	1 (N)
(2)	Brand logo	1 (N)
(3)	"trim level" badge (On the tailgate )	1 (N)
(4)	"trim level" badge (On the tailgate )	1 (N)
(5)	Brand logo (On the front left-hand wing)	1 (N)
(N) Always replace

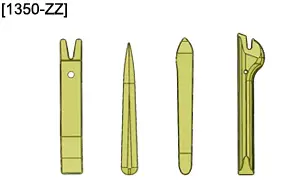

2. Tooling

Tool	Reference	Description
	[1350-ZZ] (*)	Stripping tools

3. Removing

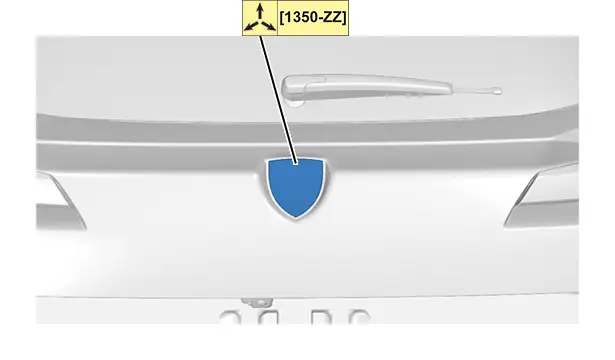

3.1. Brand logo

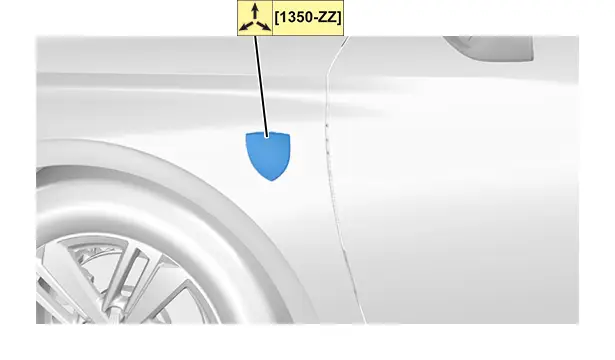

3.2. Brand logo (On the front left-hand wing)

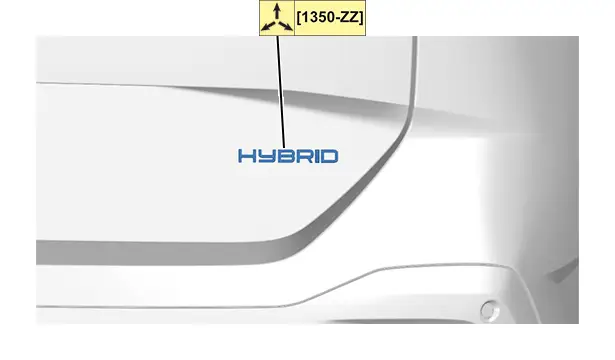

3.3. "trim level" badge (On the tailgate )

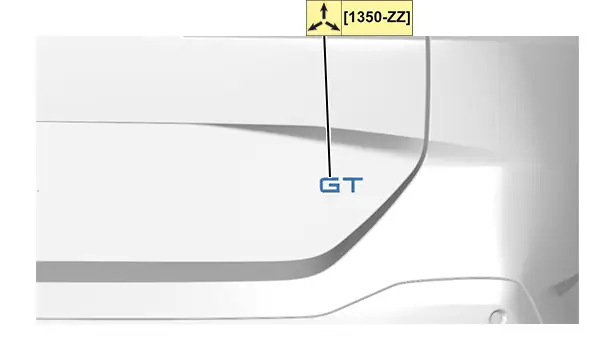

3.4. "trim level" badge (On the tailgate )

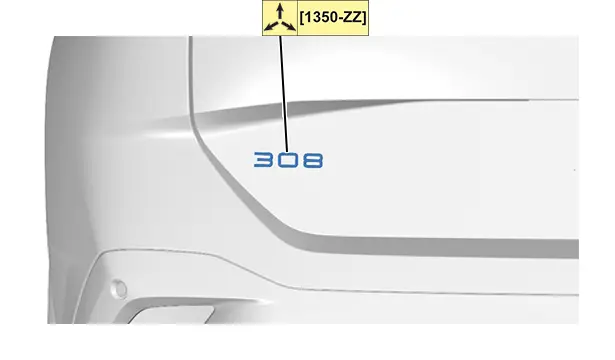

3.5. "Model" badge

4. Refitting

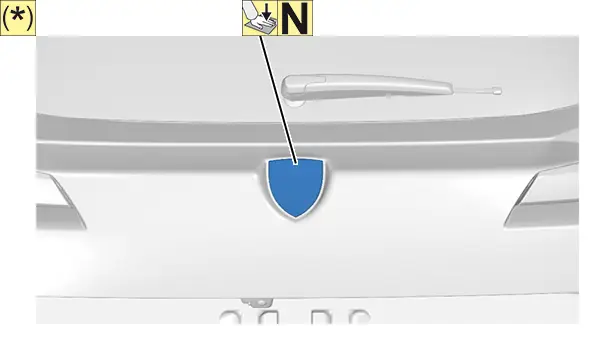

4.1. Brand logo

N.B. : Degrease the bonding surface ; Using degreaser index "J1" .

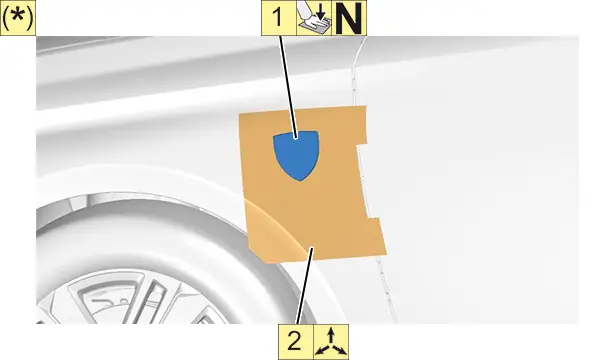

4.2. Brand logo (On the front left-hand wing)

N.B. : Degrease the bonding surface ; Using degreaser index "J1" .

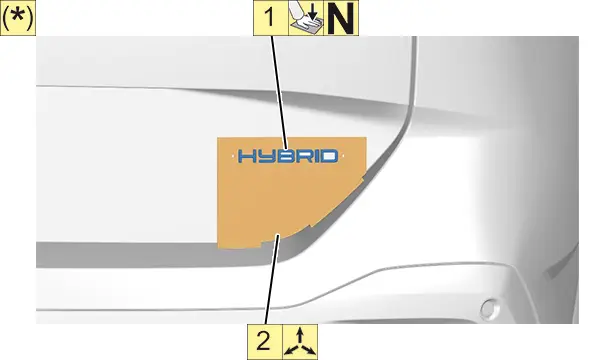

4.3. "trim level" badge (On the tailgate )

N.B. : Degrease the bonding surface ; Using degreaser index "J1" .

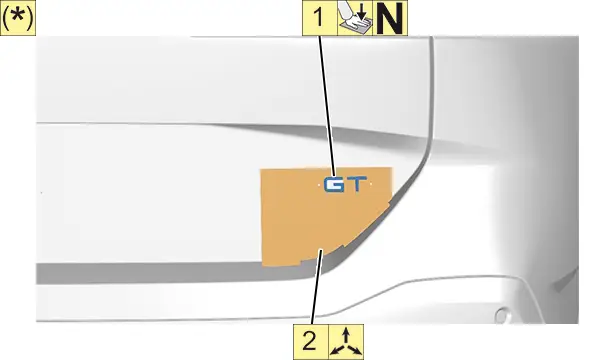

4.4. "trim level" badge (On the tailgate )

N.B. : Degrease the bonding surface ; Using degreaser index "J1" .

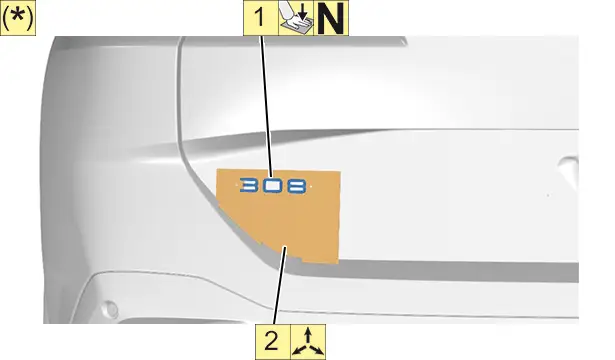

4.5. "Model" badge

N.B. : Degrease the bonding surface ; Using degreaser index "J1" .
