Peugeot 308: Removing - refitting : Front wing

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

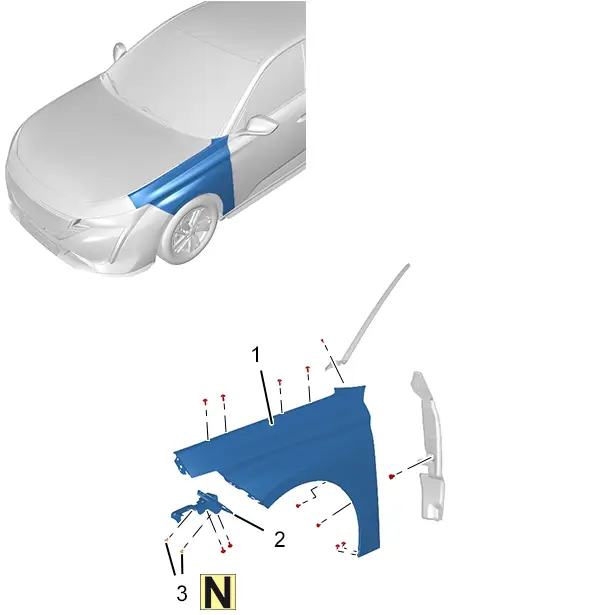

1. Location

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

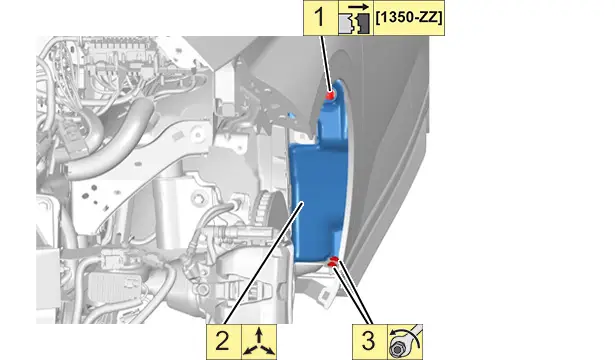

Remove :

• The scuttle panel
• The windscreen pillar trim
• The front mudguard
• The front bumper
• The headlamp

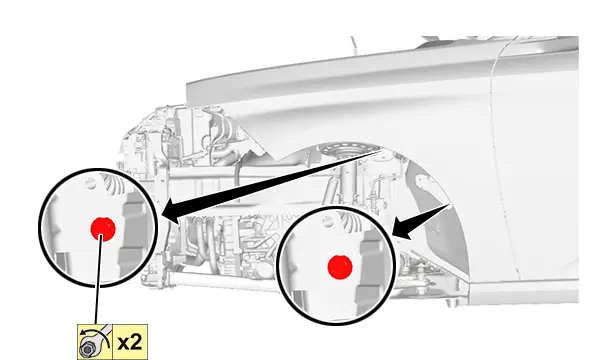

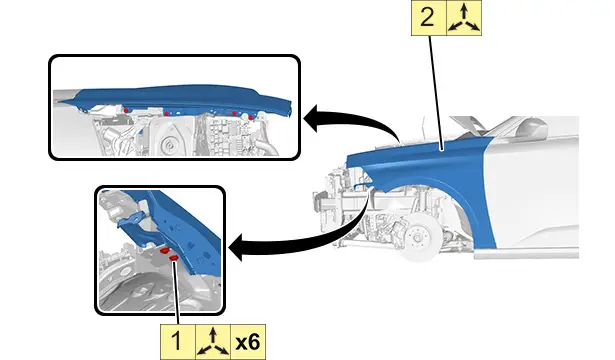

4. Removing

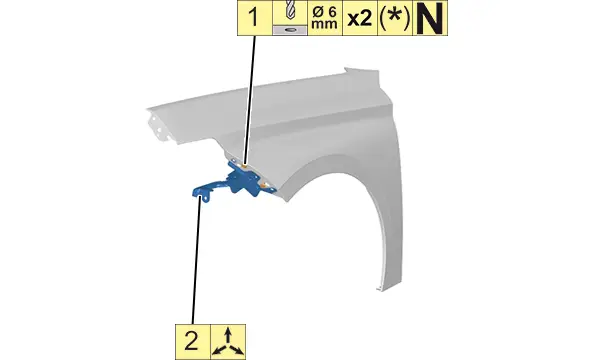

N.B. : (*) If replacing the front wing (1) support (2).

5. Refitting

CAUTION : Observe the tightening torques .

Proceed in the reverse order to removal.

Adjust the fits and clearances .

6. Additional operations

Refit :

• The headlamp
• The front bumper
• The front mudguard
• The windscreen pillar trim
• The scuttle panel

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Rebrancher la ou les batteries de servitude (suivant équipement).

Check the operation of the various equipment.
