Peugeot 308: Removing - refitting : Headlining

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

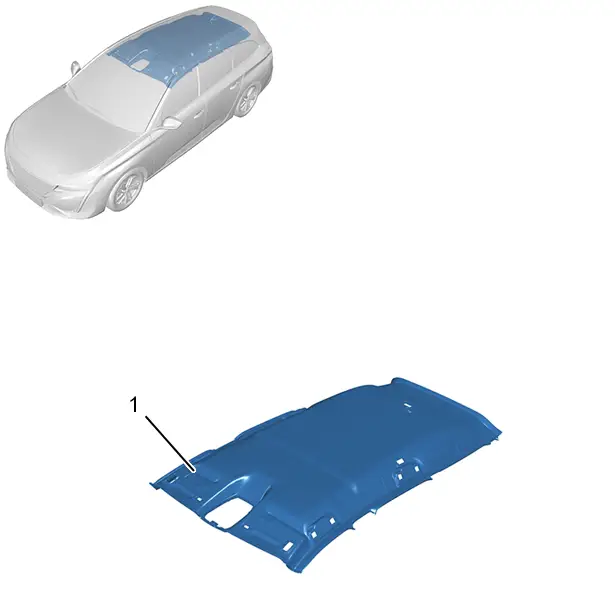

1. Location

Identification	Description	Quantity
(1)	Headlining	1

2. Tooling

Tool	Reference	Description
	[1350-ZZ]	Stripping tools

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove :

• The interior mirror
• The roof console
• The windscreen pillar trims
• The central pillar trims
• The quarter panel trims
• The front seat head restraints
• The rear screen

Fold down :

• The rear seat back rests
• The front seat back rests

Release the side door entry seals.

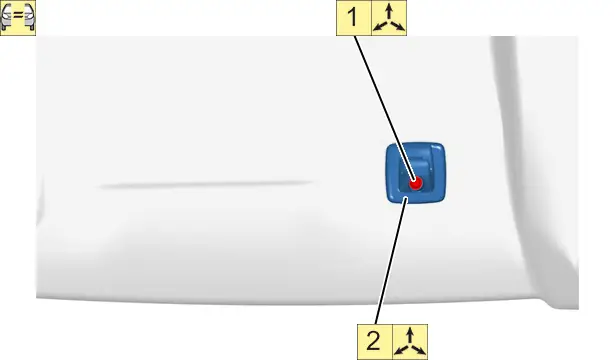

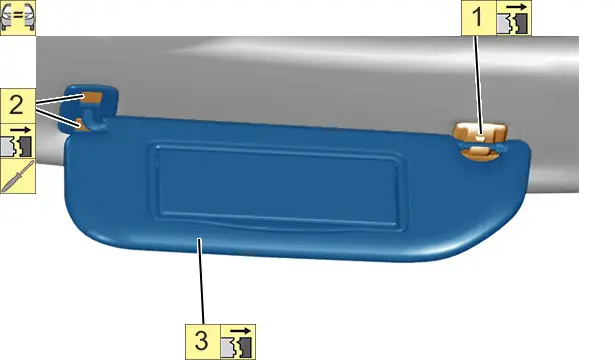

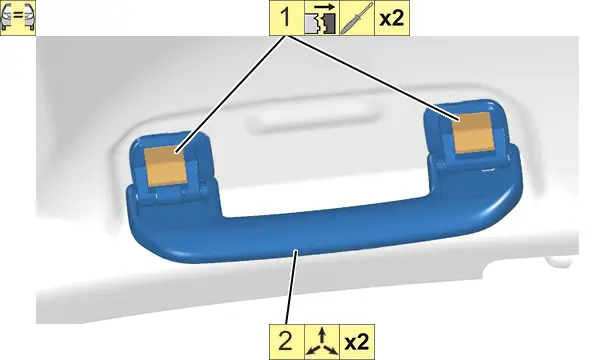

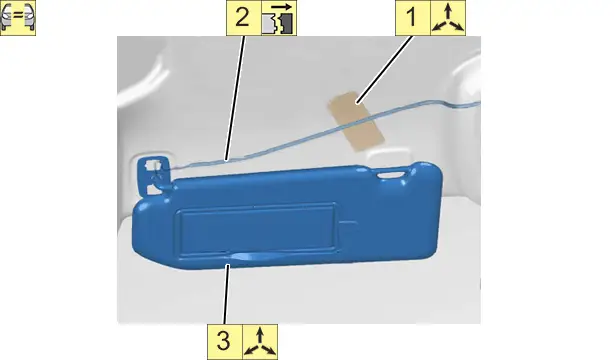

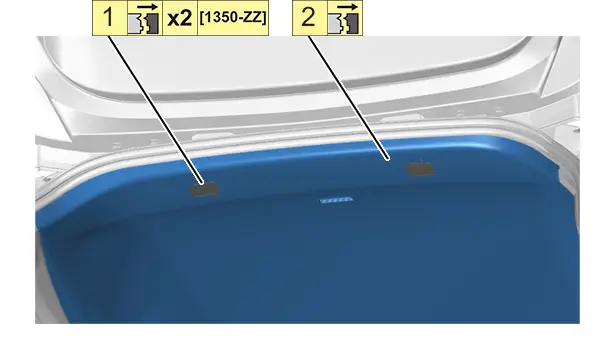

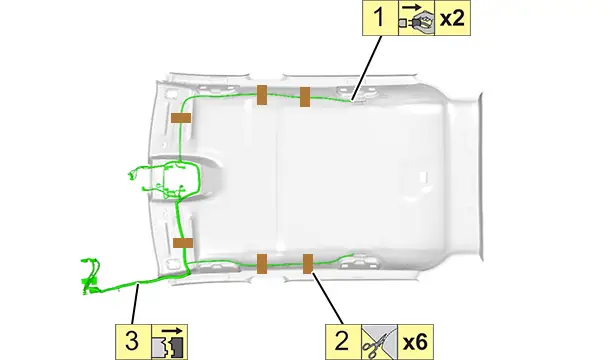

4. Removing

N.B. : Rest the headlining on the seats.

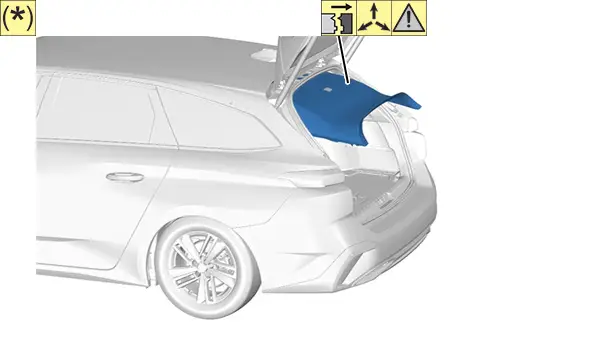

CAUTION : Extract the headlining via the tailgate (Carefully).

N.B. : Exert a moderate, even pressure to the entire surface of the headlining.

5. Refitting

CAUTION : The headlining must be handled with care to avoid any damage.

CAUTION : If there is damage or marking, always replace the headlining .

N.B. : For the following operation 2 people are necessary.

Refit the headlining .

Proceed in the reverse order to removal.

N.B. : Always replace the damaged fixings ; Clean the headlining with soap and water (if necessary).

6. Additional operations

Refit the door entry seals.

Refit :

• The front seat back rests
• The rear seat back rests
• The rear screen
• The front seat head restraints
• The quarter panel trims
• The central pillar trims
• The windscreen pillar trims
• The roof console
• The interior mirror

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
