Peugeot 308: Presentation

These illustrations and descriptions are provided for information. The presence and location of some elements vary depending on the version or trim level.

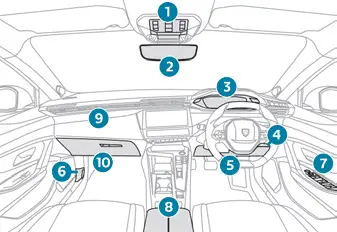

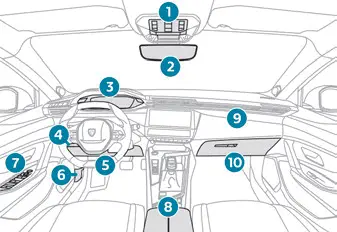

Instruments and controls

1. Emergency call/Assistance call
   Sunroof
   Alarm
   Courtesy lamp/Front reading lamps
2. Warning lamp display for seat belts and front passenger airbag Interior mirror
3. Instrument panel
4. Side control bar/Coin holder
5. Fusebox
6. Bonnet release
7. Door mirrors Electric windows Central locking
8. Front armrest USB sockets
9. Front passenger airbag
10. Glove box

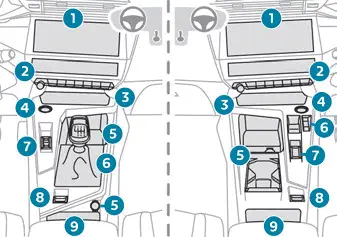

Centre console

1. 10-inch touch screen
2. Centre control bars
3. Storage compartment or Wireless smartphone charger
4. Starting/Switching off the engine with START/STOP
5. Storage
   USB socket
   12 V socket
   Cup holder
6. Gearbox or Drive selector
7. Driving mode selector
8. Electric parking brake
9. Storage compartment/Smartphone storage

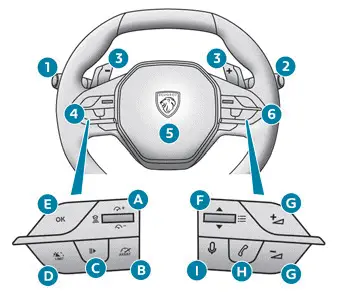

Steering-mounted controls

1. Exterior lighting controls/Direction indicators/ Instrument panel display page/Service indicator
2. Wiper controls/Screenwash/Trip computer
3. Automatic gearbox control paddles
4. Speed limiter/Cruise control/Adaptive cruise control/Drive Assist Plus or Drive Assist 2.0 controls

1. Increase/Decrease the speed setting
   Display and adjustment of the distance setting to the vehicle in front (Adaptive cruise control)
2. Select/Deselect the Cruise control
   Select/Deselect the Adaptive cruise control/ Drive Assist Plus
3. Start/Pause the Speed limiter or Cruise control with the speed setting saved
   Confirmation of vehicle restart after automatic stop (Adaptive cruise control with Stop&Go function)
4. Select/Deselect the Speed limiter
5. Activation of the Speed limiter or Cruise control with the speed setting saved
   Use the speed suggested by the Road signs recognition function

5. Horn/Driver front airbag
6. Audio system setting controls

6. Press: Display favourite radio stations/media
   Up/Down: previous/next radio/media/ smartphone selection
   Press: validation of a selection
7. Increase/Decrease the volume
8. Pick up/Hang up
   Access to the Phone application's call log
9. Short press: system voice commands
   Long press: smartphone voice commands

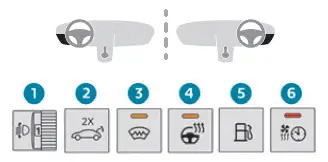

Side control bar

1. LED technology headlamps beam height adjustment
2. Motorised tailgate
3. Heated windscreen
4. Heated steering wheel
5. Opening the fuel filler flap
6. Temperature pre-conditioning operation indicator lamp

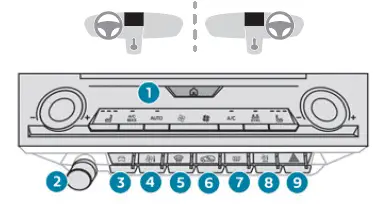

Centre control bars

1. Automatic air conditioning system controls/ HOME button or i-Toggles/HOME button
2. Audio system controls
3. Shortcuts for driving aids
4. Access to the Climate application
5. Windscreen and front windows demisting
6. Recirculation of interior air
7. Rear screen de-icing
8. Switching automatic air conditioning off
9. Hazard warning lamps
