Peugeot 308: Stripping-assembling : Rear bumper

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Tooling

2. Preliminary operations

Remove :

• The rear bumper
• The proximity sensors in the rear bumper / Blind spot monitoring sensors

3. Stripping

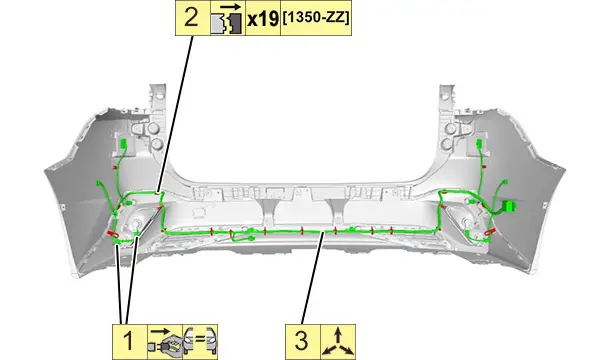

3.1. Electrical harnesses

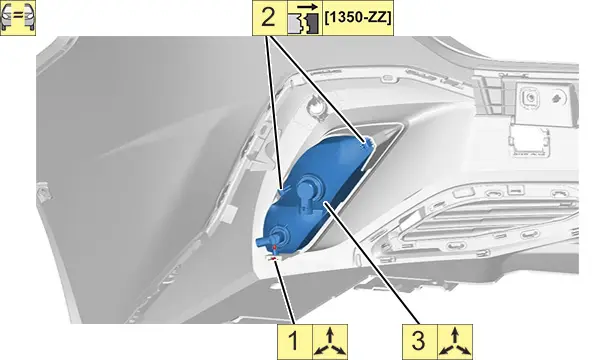

3.2. Rear lamps

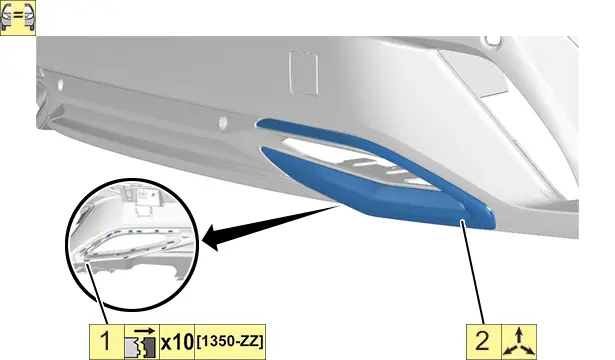

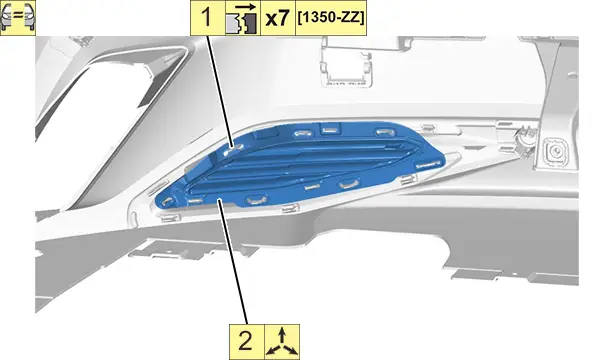

3.3. Trims

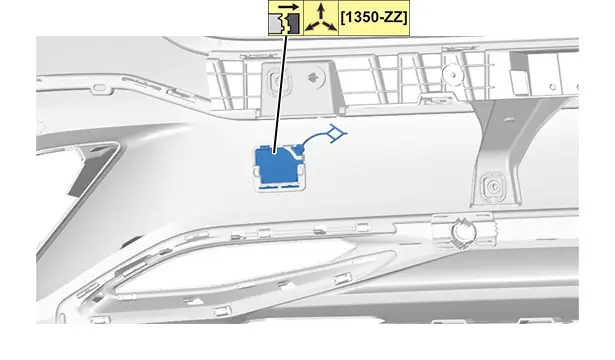

3.4. Access flap

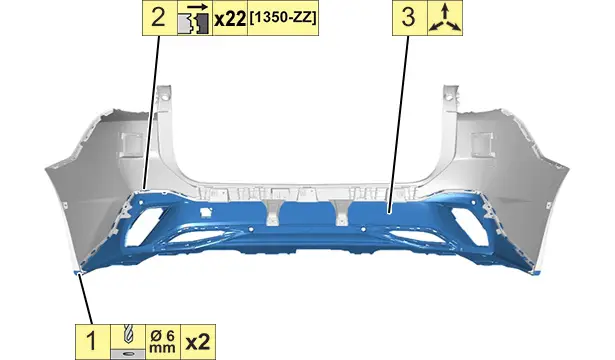

3.5. Rear bumper lower part

4. Assembling

Carry out the operations in the reverse order to the stripping operations.

5. Additional operations

Refit :

• The rear bumper
• The proximity sensors in the rear bumper / Blind spot monitoring sensors

Check the operation of the various equipment.
