ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.

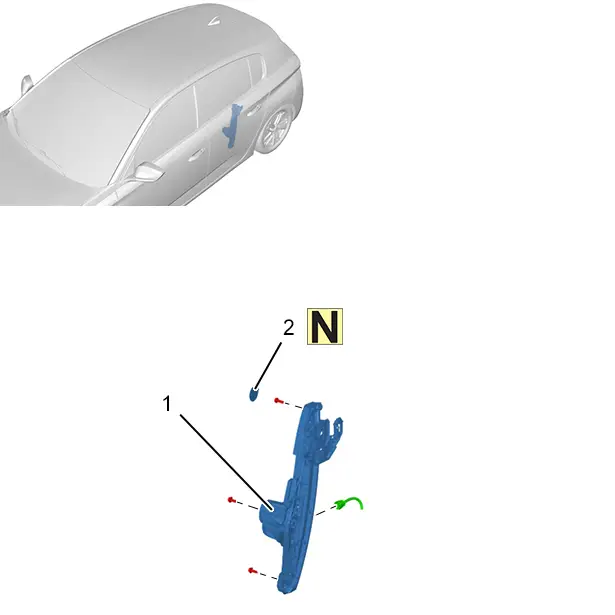

1. Location
Identification | Description | Quantity |
(1) | Rear electric window mechanism | 1 |
(2) | Adhesive disc | 1 (N) |
(N) Always replace |

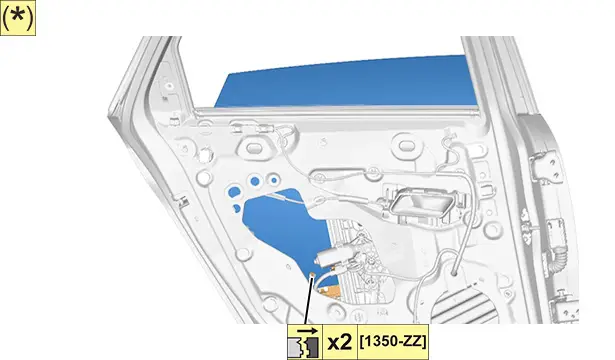

2. Tooling
Tool | Reference | Description |
| [1350-ZZ] | Stripping tools |
3. Preliminary operations
CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries (depending on equipment).
4. Common operations
Remove :

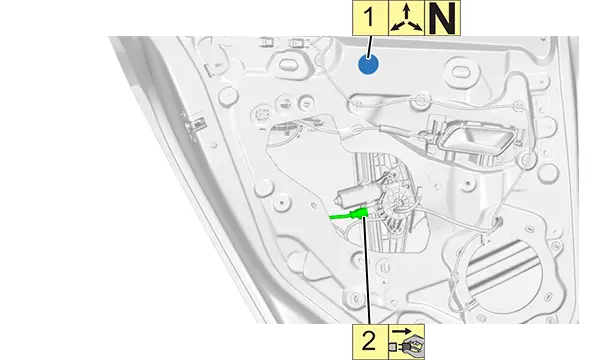

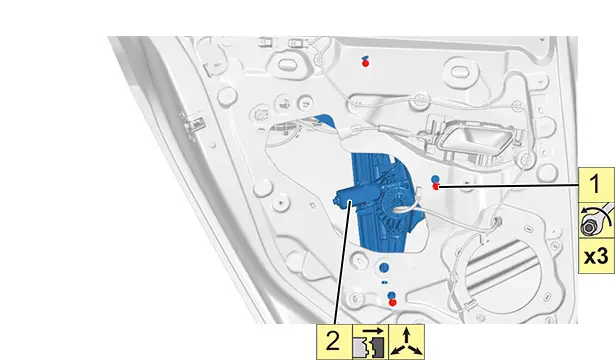

5. Removing
N.B. : Lower the rear door window.

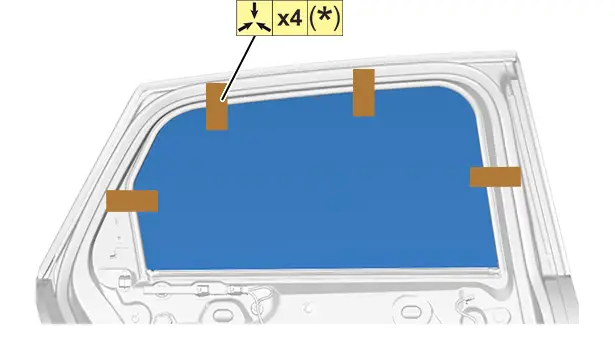

N.B. : Support the door window in position ; Using adhesive tape.
6. Refitting
Proceed in the reverse order to removal.
7. Additional operations
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries (depending on equipment).
8. Common operations
Refit :
Check the operation of the various equipment.
