Peugeot 308: Replacement : Load floor rear part

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be isolated by an authorised technician.

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : Any repair work carried out on a vehicle with on board electric energy (electric vehicle/hybrid vehicle) must be carried out by an authorised person.

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

1. Information

Types of spot welds or beads using the electric arc process :

• MIG braze welding with cupro-aluminium filler used with an inert gas
• MAG welding with steel filler metal and active gas

Designation of the high strength panels :

• High strength (HSS) : High strength steel
• Very high strength (VHSS) : Very high strength steel
• Ultra high strength (UHSS) : Ultra high strength steel

N.B. : Use the products recommended by the manufacturer .

2. Tooling

Workshop equipment :

• Swan’s neck drill for cutting out electric spot welds
• Hot air blower

Tool	Reference	Description
	[1366-ZZ]	Toolkit for testing electric spot welds
	[1366]	Samples for testing electric spot welds
	[1126]	Set of drill bits for removing spot welds

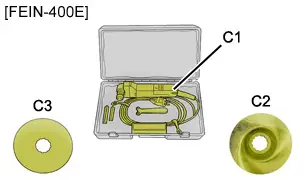

	[FEIN-400E]	"FEIN-400E" electric knife kit"C1" FEIN electric knife "400E""C2" offset hub saw blade- "C3" blade N°103

3. Preliminary operations

ESSENTIAL : Deactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required before disconnecting the ancillaries batteries .

Disconnect the ancillaries batteries (Following the specific procedure ).

CAUTION : Either remove or protect those components which are in the repair zone and risk being damaged by the heat or the dust.

Remove :

• The rear bumper
• The rear lamps
• The boot trims
• The rear suspension
• The traction battery

Release the electrical harnesses.

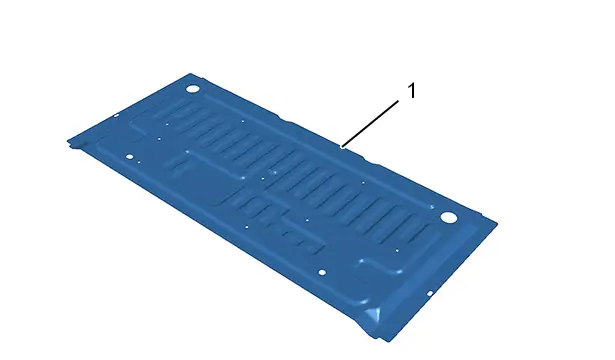

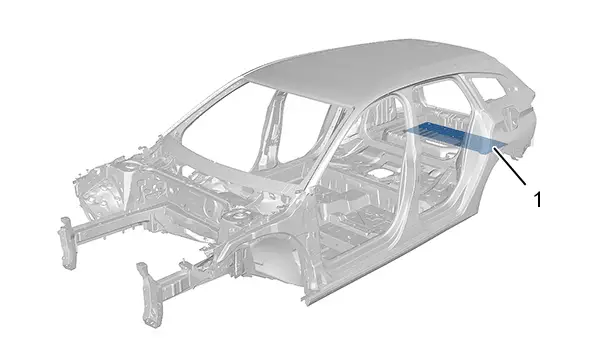

4. Location : Replacement part

Identification	Description
(1)	Load floor rear part

5. Identification of the replacement part

5.1. Composition : Load floor rear part

Identification	Description	Thickness	Nature/classification
(1)	Load floor rear part	0,65 mm	Very high strength (VHSS)

CAUTION : Take into account the difference in thickness of the part when setting the welding station.

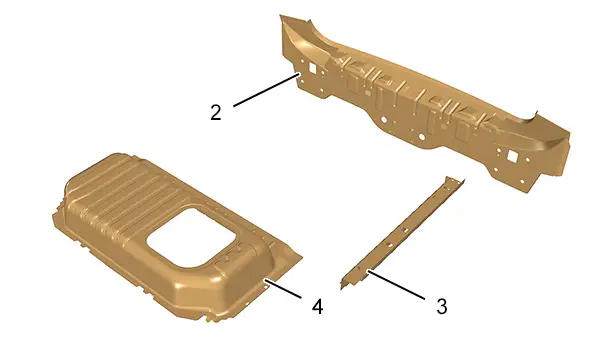

5.2. Identification of the parts adjacent to the replacement part

Identification	Description	Thickness	Nature/classification
(2)	Rear panel assembly	0,65 mm	High strength (HSS)
(3)	Rear upper side member	1,35 mm	Ultra high strength (UHSS)
(4)	Load floor front part	0,65 mm	Mild steel

6. Replacement part preparation

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

Prepare the mating edges and protect them using a weldable primer (index "C7").

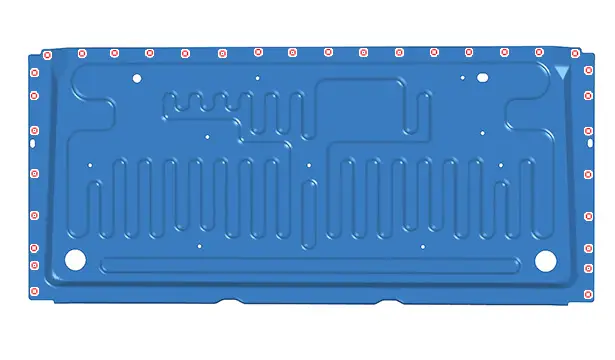

Mark then drill to a diameter of 7 mm for later plug welding.

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

7. Cutting of the part on the body

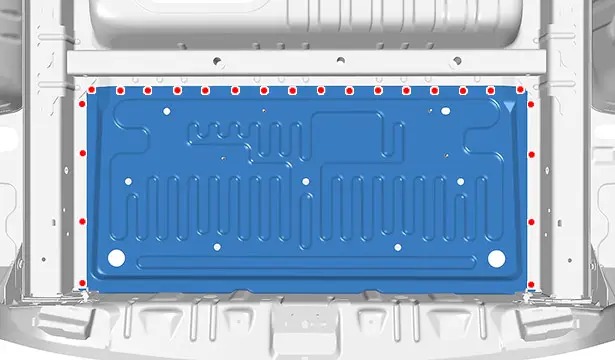

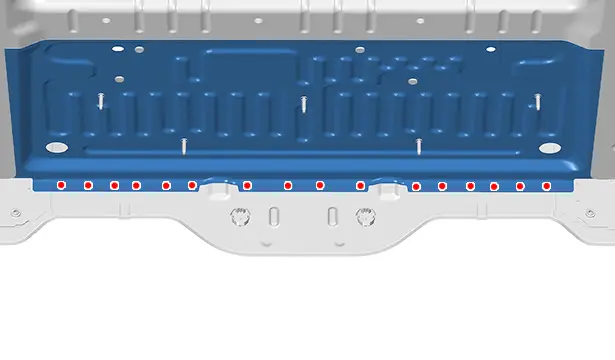

Cut out the spot welds .

Cut out the spot welds .

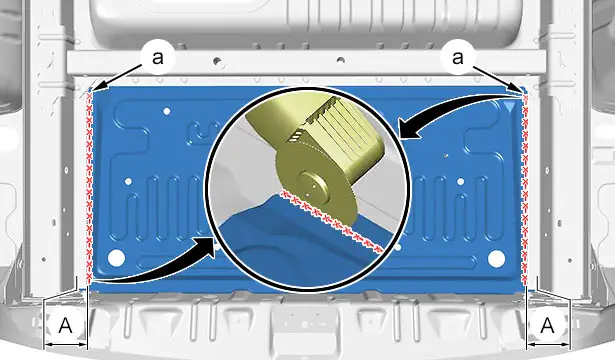

Dimension "A" = 18 mm.

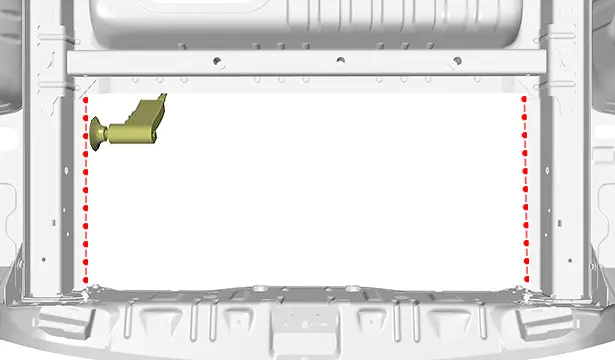

Mark (at "a") to the dimension "A", then cut ; Using the electric knife [FEIN-400E].

CAUTION : Do not damage the parts located under the load floor rear part when cutting.

Remove the load floor panel (Rear section).

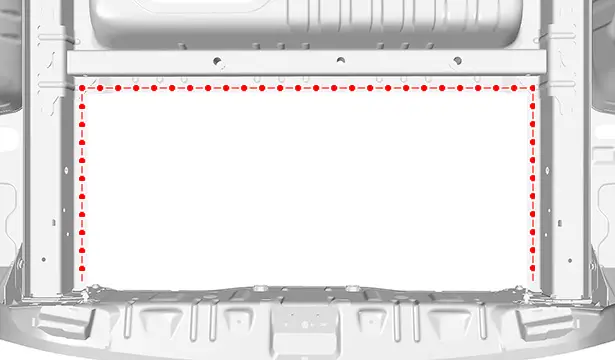

Level off the remaining flanges of the load floor.

8. Cleaning and preparation of the body

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

9. Adjustment

Position :

• The loading floor (Rear section)
• The components for adjusting

Clamp the part into position.

10. Welding

CAUTION : Set the welding station.

Setting of the welding station :

• Electric spot weld testing ; Using the tool [1366-ZZ]
• Samples for testing electric spot welds ; Using the tool [1366]

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

Weld with MAG plug welds.

Grind the MAG plug welds.

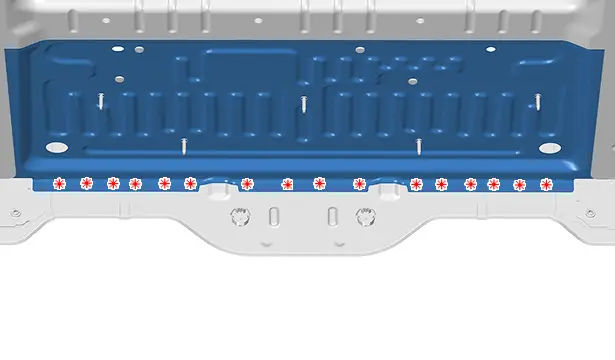

Weld with electric spot welds.

11. Sealing protection

Apply :

• A layer of etch primer to the zones exposed
• Sealing mastic (index "A1")
• Anti-chip protection (index "C4")

Painting, then spraying of the index "C5" product into the hollow sections in the repair zone.

12. Additional operations

Refit the electrical harnesses and reinstall all removed components.

13. Reinitialisation

ESSENTIAL : Reactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required after reconnecting the ancillaries batteries .

Reconnect the ancillaries batteries (Following the specific procedure ).
