Peugeot 308: Replacement : Rear side member end fitting

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be disconnected electrical supply.

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

1. Information

Types of spot welds or beads using the electric arc process :

• MIG braze welding with cupro-aluminium filler used with an inert gas
• MAG welding with steel filler metal and active gas

Designation of the high strength panels :

• High strength (HSS) : High strength steel
• Very high strength (VHSS) : Very high strength steel
• Ultra high strength (UHSS) : Ultra high strength steel

N.B. : Use the products recommended by the manufacturer .

2. Tooling

Workshop equipment :

• Swan’s neck drill for cutting out electric spot welds
• Hot air blower

Tool	Reference	Description
	[1366-ZZ]	Toolkit for testing electric spot welds
	[1366]	Samples for testing electric spot welds
	[1126]	Set of drill bits for removing spot welds

3. Preliminary operations

ESSENTIAL : Deactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries.

CAUTION : Either remove or protect those components which are in the repair zone and risk being damaged by the heat or the dust.

Remove :

• The rear lamp
• The rear bumper
• The rear mud guards
• The rear bumper frame
• The boot trims
• The boot carpet

Release the electrical harnesses.

Replace :

• The rear panel
• Extension of charge load floor

4. Location of the replacement part

Identification	Description

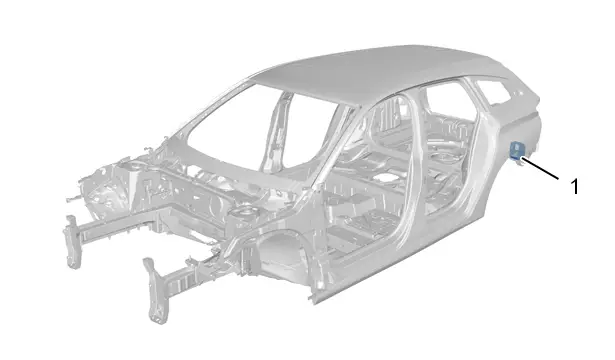

(1)	Rear side member end fitting

5. Identification of the replacement part

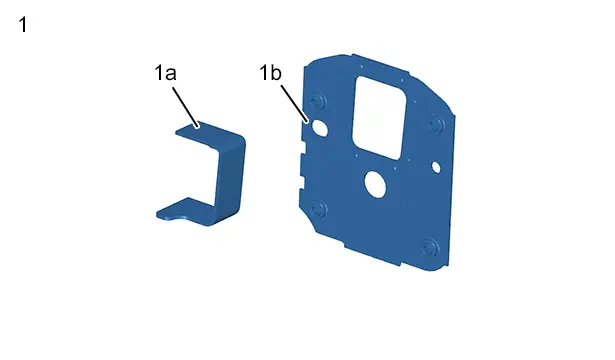

5.1. Composition : Rear side member end fitting

Identification	Description	Thickness	Nature/classification
(1)	Rear side member end fitting	-	-
(1a)	Rear side member endpiece strengthener	3,00 mm	Very high strength (VHSS)
(1b)	Rear side member end fitting	3,00 mm	Very high strength (VHSS)

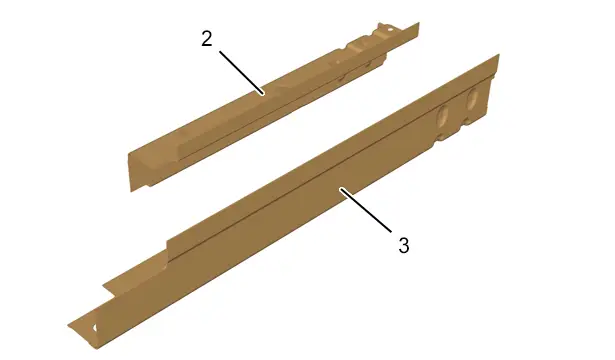

5.2. Identification of the parts adjacent to the replacement part

Identification	Description	Thickness	Nature/classification
(2)	Rear upper side member	1,35 mm	Ultra high strength (UHSS)
(3)	Rear lower side member	1,70 mm	Very high strength (VHSS)

CAUTION : Take into account the difference in thickness of the parts when adjusting the welding station.

6. Preparation of the replacement parts

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

7. Cutting of the parts on the body

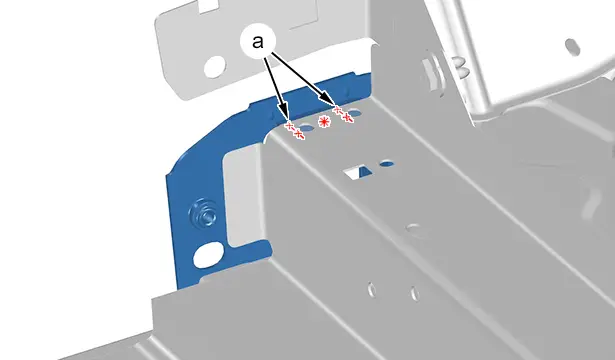

Grind away the MAG weld beads (at "a").

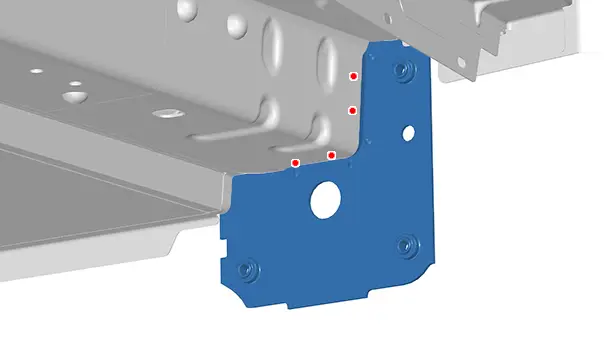

Cut out the spot weld .

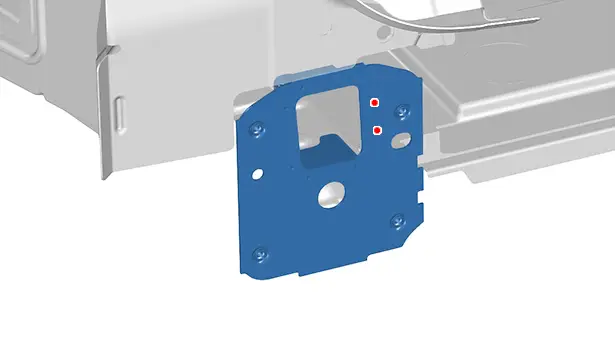

Cut out the spot welds .

Cut out the spot welds .

Remove the rear sidemember end piece .

8. Cleaning and preparation of the body

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

9. Adjustment

Position :

• The rear sidemember end piece
• The components for adjusting

Support the parts in position.

10. Welding

CAUTION : Set the welding station.

Setting of the welding station :

• Electric spot weld testing ; Using the tool [1366-ZZ]
• Samples for testing electric spot welds ; Using the tool [1366]

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

Weld :

• By means of a MAG plug weld

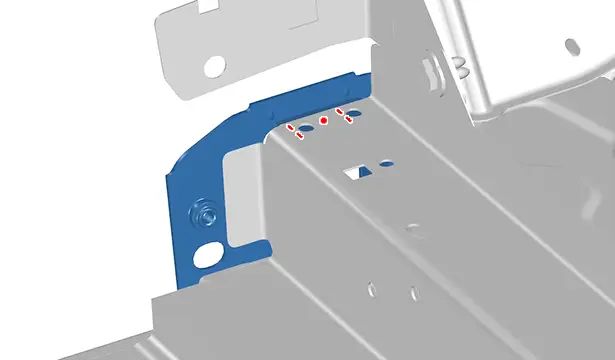

• By MAG beads (at "b")

Grind :

• The MAG plug welds
• The MAG beads

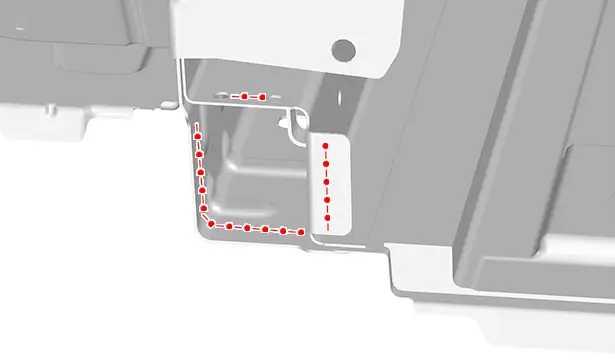

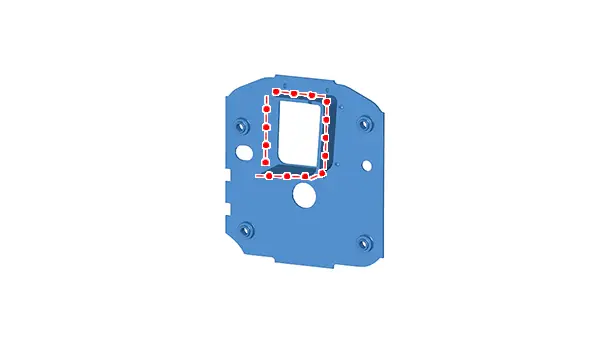

Weld with electric spot welds.

Weld with MAG plug welds.

Grind the MAG plug welds.

11. Sealing protection

Apply a phosphate-print layer to the zones laid bare.

Painting, then spraying of the index "C5" product into the hollow sections in the repair zone.

12. Additional operations

Refit the electrical harnesses and reinstall all removed components.

13. Reinitialisation

ESSENTIAL : Reactivate the pyrotechnic systems .

Restore the voltage supply to the vehicle.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries.
