Peugeot 308: Removing - refitting : Exterior mirror

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Front doors and trims / Rear view mirrors / Removing - refitting : Exterior mirror

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

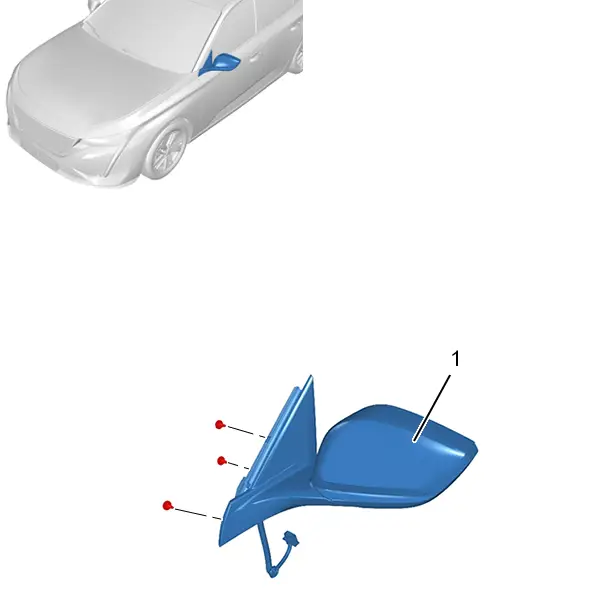

1. Location

INTERNAL COMBUSTION DRIVE TRAIN OR ELECTRIC DRIVE TRAIN OR MHEV DRIVE TRAIN OR PHEV DRIVE TRAIN

Identification Description Quantity
(1) Exterior mirror 1

2. Tooling

Tool Reference Description

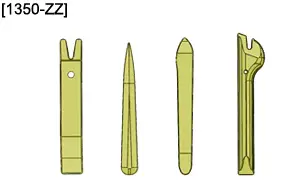

[1350-ZZ] Stripping tools

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Common operations

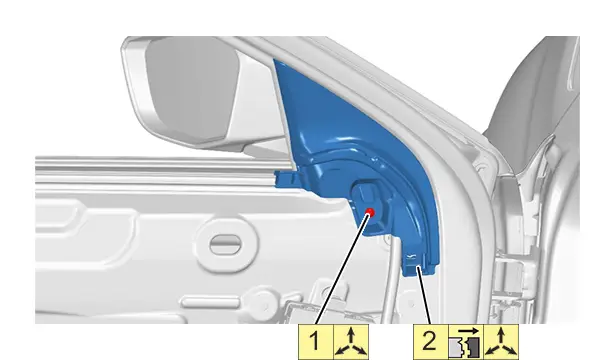

Remove the front door trim panel .

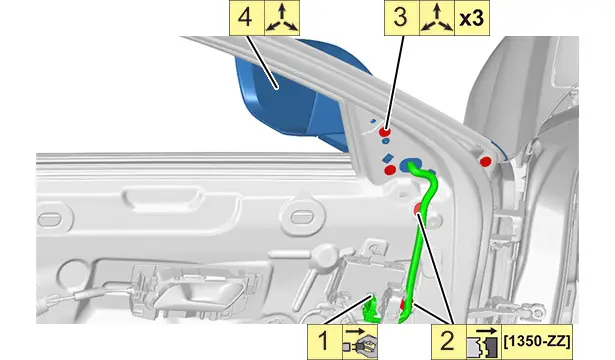

5. Removing

6. Refitting

Proceed in the reverse order to removal.

7. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Rebrancher la ou les batteries de servitude (suivant équipement).

8. Common operations

Refit the front door trim panel .

9. Check

Check the operation of the various equipment.
