Peugeot 308: Removing - refitting : Passenger airbag

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

ESSENTIAL : Apply the airbag safety procedures .

ESSENTIAL : Apply the procedure for switching off the central airbag system .

CAUTION : Carefully unlock and disconnect the connectors ; When connecting, check the routing and clipping of the electrical harnesses.

CAUTION : Disconnecting the connectors has to be done without exerting any stress on the electrical harnesses or the connectors (No pulling is allowed on the electrical harness).

Key : Operation symbols .

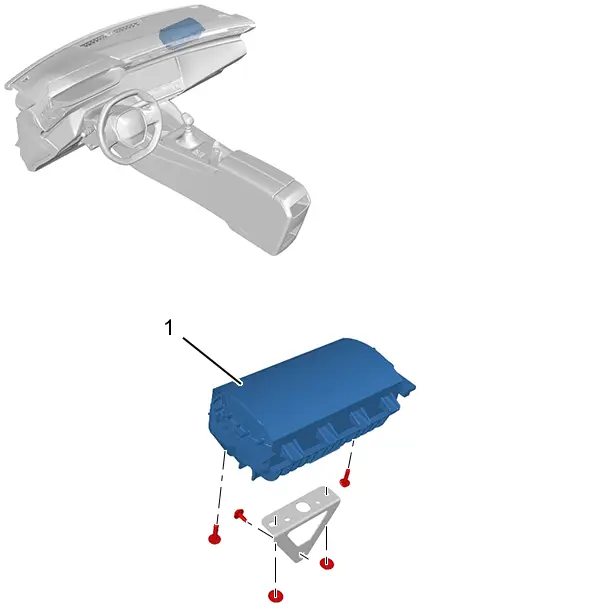

1. Location

LEFT-HAND DRIVE

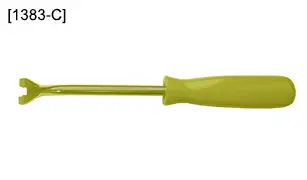

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove :

• The passenger storage compartment
• The IVI audio-navigation system

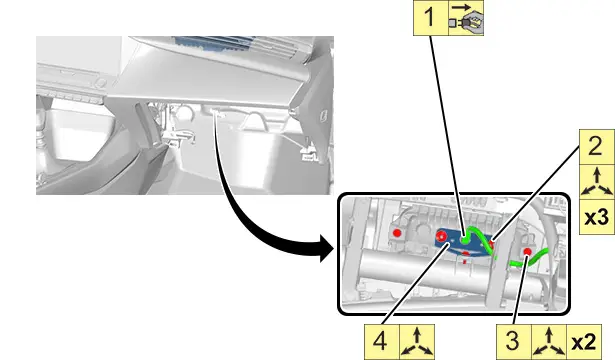

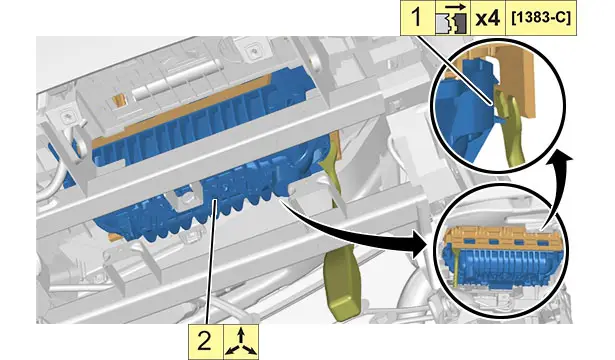

4. Removing

LEFT-HAND DRIVE

5. Refitting

CAUTION : Observe the tightening torques .

CAUTION : Check, before refitting the passenger airbag (1), that the connectors are properly locked on the ignition module.

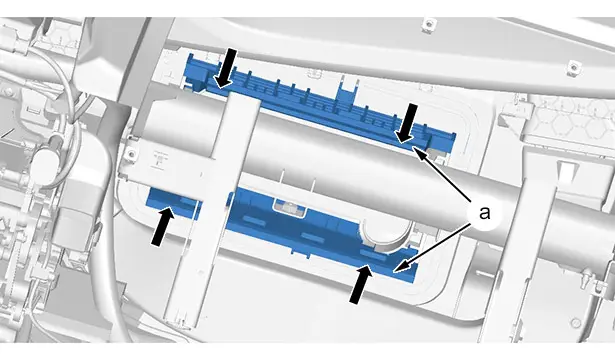

CAUTION : Exert pressure by hand (at "a") (In the direction of the arrows ).

Proceed in the reverse order to removal.

6. Additional operations

Refit :

• The IVI audio-navigation system
• The passenger storage compartment

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

ESSENTIAL : Apply the procedure for switching on the centralised airbag system .

Switch on the ignition.

Check the operation of the "airbags" warning lamp on the instrument panel.

N.B. : The warning lamp comes on for 6 to 8 seconds then goes off.

If the warning lamp does not switch off, read the fault codes.

Check the operation of the various equipment.
