Peugeot 308: Fitting : Number plate

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

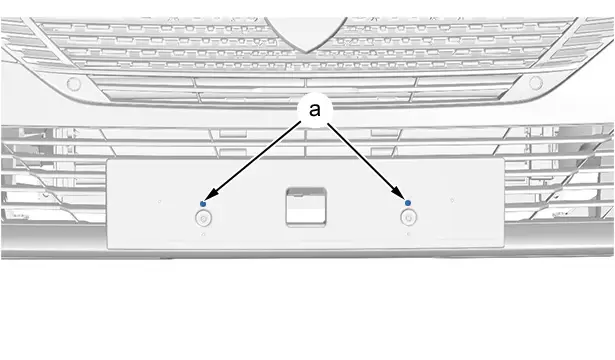

1. Front number plate

N.B. : The front bumper is pre-drilled(at "a").

Present the number plate on the front bumper.

Fix the number plate with rivets 4 mm in diameter (at "a") and cover them with caps the same colour as the number plate.

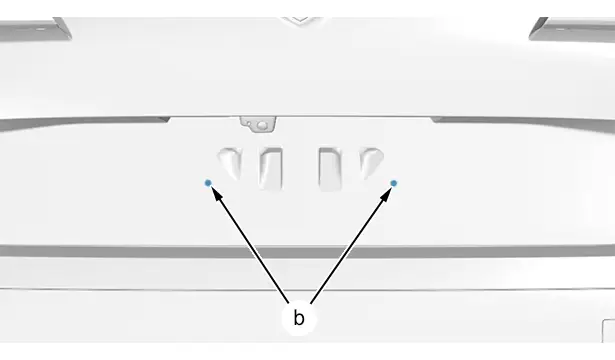

2. Rear number plate

N.B. : The front bumper is pre-drilled(at "b").

Present the number plate on the front bumper.

Fix the number plate with rivets 4 mm in diameter (at "b") and cover them with caps the same colour as the number plate.
