ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.

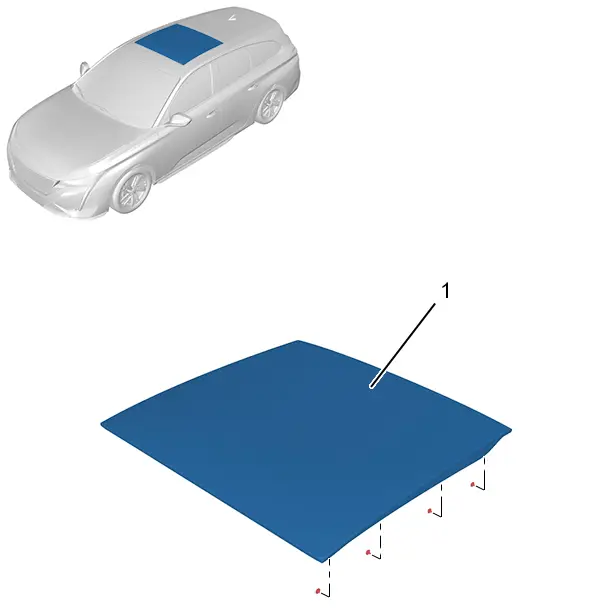

1. Location
Identification | Description | Quantity |
(1) | Sunroof glass | 1 |
2. Preliminary operation
Open the sunroof glass.

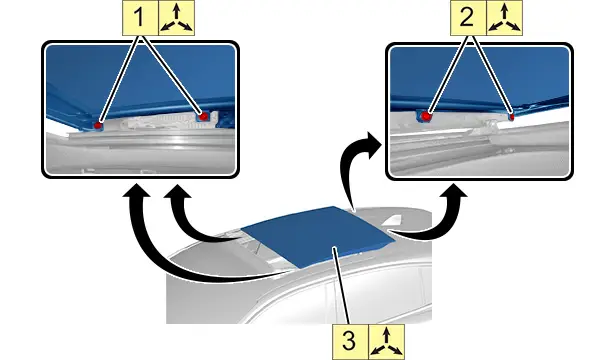

3. Removing
4. Refitting
Proceed in the reverse order to removal.
5. Additional operations
Close the sunroof .
Check the operation of the various equipment.
