Peugeot 308: Replacement : Roof crossmembers (Panoramic sunroof)

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Roof and headlining assembly / Roof panel / Replacement : Roof crossmembers (Panoramic sunroof)

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be disconnected electrical supply.

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

1. Information

Types of spot welds or beads using the electric arc process :

  • MIG braze welding with cupro-aluminium filler used with an inert gas
  • MAG welding with steel filler metal and active gas

Designation of the high strength panels :

  • High strength (HSS) : High strength steel
  • Very high strength (VHSS) : Very high strength steel
  • Ultra high strength (UHSS) : Ultra high strength steel

N.B. : Use the products recommended by the manufacturer .

N.B. : The roof crossmembers can be changed independently of one another.

2. Tooling

Workshop equipment :

  • Swan’s neck drill for cutting out electric spot welds
  • Hot air blower

Tool Reference Description

[1366-ZZ] Toolkit for testing electric spot welds

[1366] Samples for testing electric spot welds

[1126] Set of drill bits for removing spot welds

3. Preliminary operations

ESSENTIAL : Deactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries.

CAUTION : Either remove or protect those components which are in the repair zone and risk being damaged by the heat or the dust.

Remove :

  • The headlining
  • The panoramic sunroof
  • The windscreen
  • The tailgate
  • The interior trims

Release the electrical harnesses.

Replace the panoramic sunroof panel.

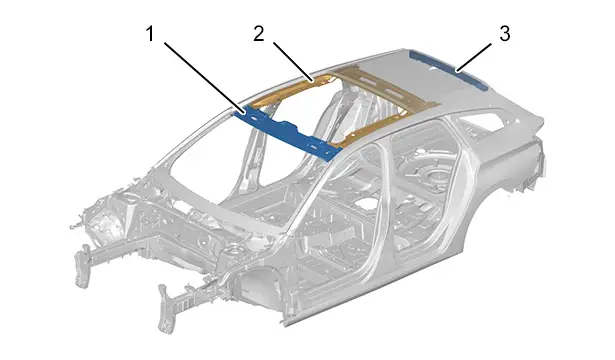

4. Location of the replacement part

Identification Description
(1) Roof front crossmember assembly
(2) Rear roof bow assembly
(3) Roof rear crossmember assembly

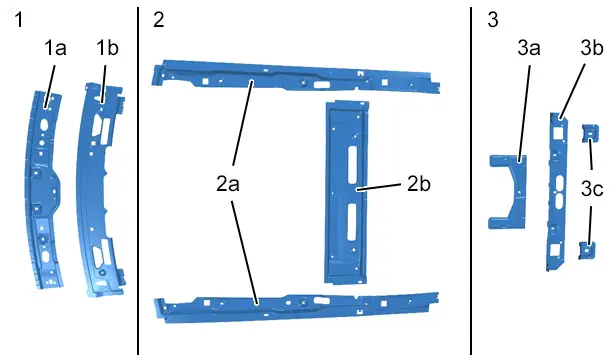

5. Identification of replacement parts

5.1. Composition : Roof crossmembers

Identification Description Thickness Nature/classification
(1) Roof front crossmember assembly - -
(1a) Roof front crossmember 0,90 mm Mild steel
(1b) Fastener of the roof front crossmember 0,65 mm Very high strength (VHSS)
(2) Rear roof bow assembly - -
(2a) Sunroof fixed frame support 2,00 mm High strength (HSS)
(2b) Rear roof bow 0,65 mm Very high strength (VHSS)
(3) Roof rear crossmember assembly - -
(3a) Roof stiffener 0,75 mm Mild steel
(3b) Roof rear crossmember 0,77 mm High strength (HSS)
(3c) Rear tailgate hinge strengthener 1,45 mm High strength (HSS)

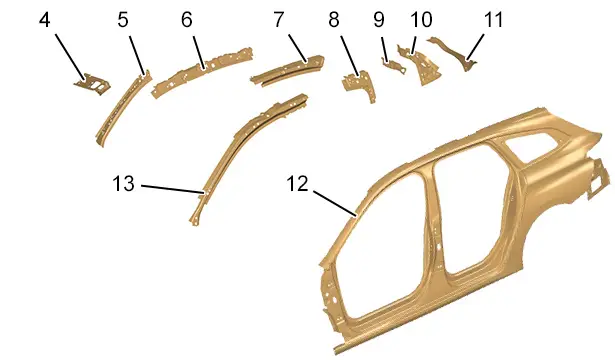

5.2. Identification of the parts adjacent to the replacement part

Identification Description Thickness Nature/classification
(4) Roof front crossmember bracket 1,45 mm Very high strength (VHSS)
(5) Windscreen pillar inner panel 1,10 mm Ultra high strength (UHSS)
(6) Roof arch inner panel 1,15 mm Ultra high strength (UHSS)
(7) Roof bow strengthener 1,10 mm Ultra high strength (UHSS)
(8) Upper quarter panel inner panel 0,65 mm Mild steel
(9) Rear quarter panel inner panel upper strengthener 0,65 mm High strength (HSS)
(10) Rear wing drip moulding gusset 1,05 mm Mild steel
(11) Tailgate aperture drip moulding 0,65 mm Mild steel
(12) Passenger compartment sides 0,65 mm Mild steel
(13) Windscreen pillar strengthener 1,10 mm Ultra high strength (UHSS)

CAUTION : Take into account the difference in thickness of the parts when adjusting the welding station.

6. Preparation of the replacement parts

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

6.1. Preparation : Roof front crossmember

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

6.2. Preparation : Roof rear crossmember

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

6.3. Preparation : Assembled rear roof cross member

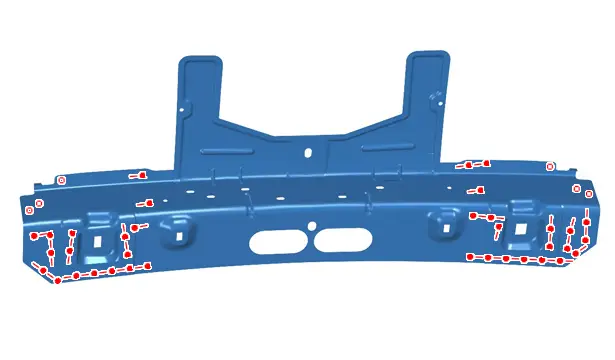

Mark then drill to a diameter of 7 mm for later plug welding.

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

7. Cutting of the parts on the body

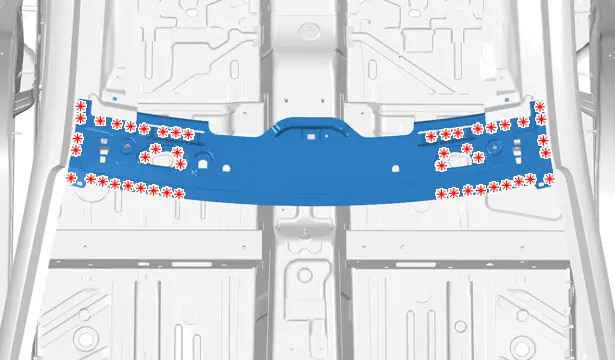

7.1. Cutting out : Roof front crossmember

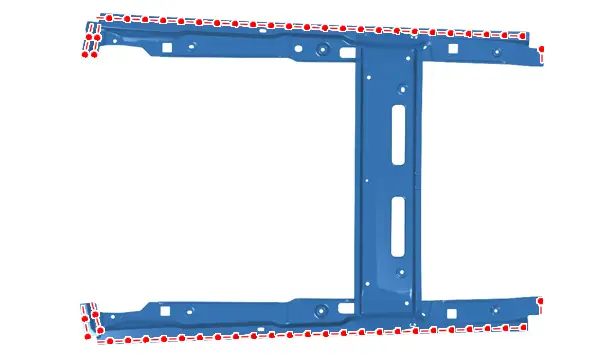

Cut out the spot welds .

Remove the front roof crossmember.

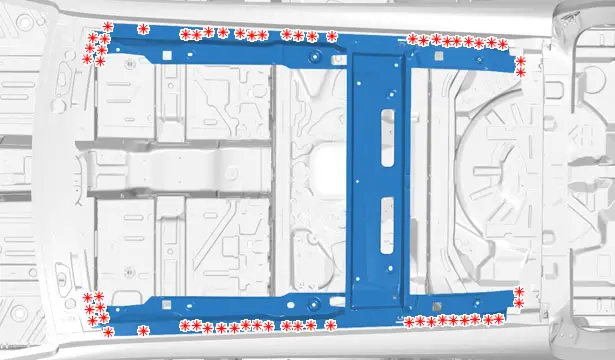

7.2. Cutting out : The roof rear bow

Cut out the spot welds .

Remove the roof rear bow .

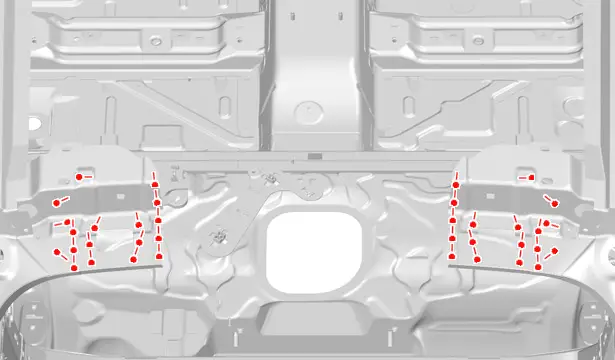

7.3. Cutting out : Roof rear crossmember

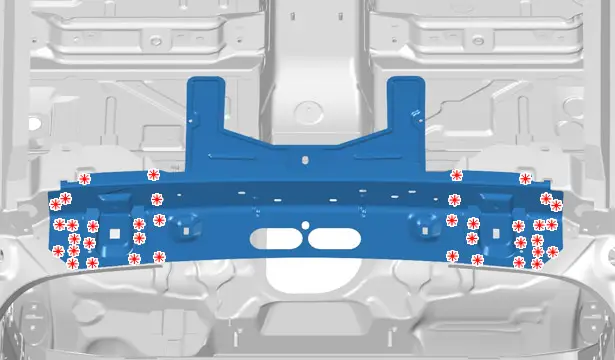

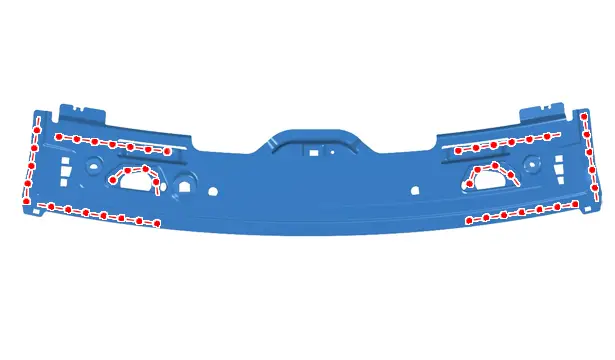

Cut out the spot welds .

Remove the rear roof crossmember.

8. Cleaning and preparation of the body

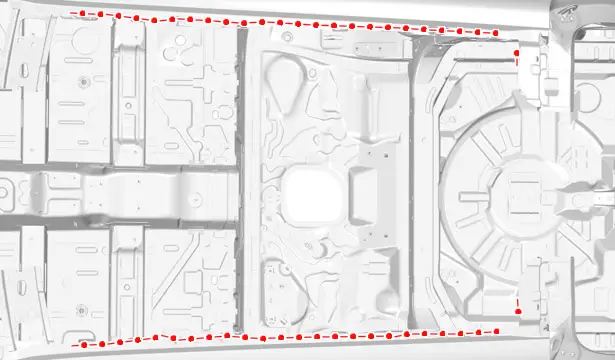

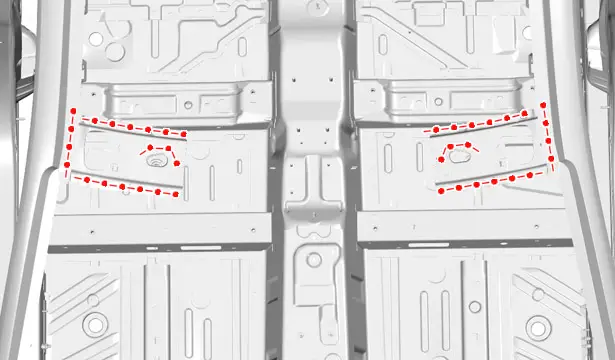

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

9. Adjustment

Position :

  • The front roof crossmember
  • The roof rear bow
  • The rear roof cross member
  • The components for adjusting

Support the parts in position.

10. Welding

CAUTION : Set the welding station.

Setting of the welding station :

  • Electric spot weld testing ; Using the tool [1366-ZZ]
  • Samples for testing electric spot welds ; Using the tool [1366]

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

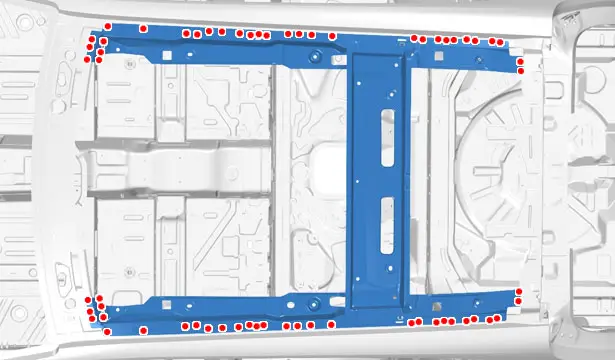

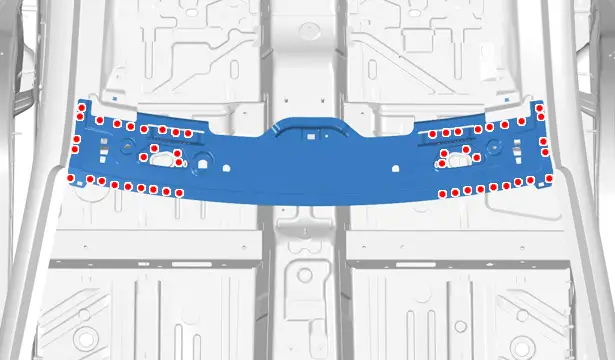

Weld with electric spot welds.

Weld with electric spot welds.

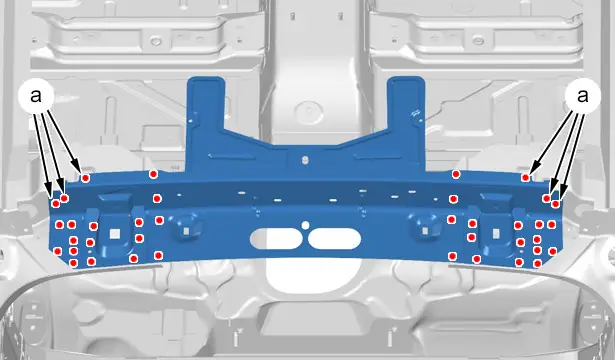

Weld :

  • By means of MAG plug welds (at "a")
  • With electric spot welds

Grind the MAG plug welds.

11. Sealing protection

Apply a phosphate-print layer to the zones laid bare.

Painting, then spraying of the index "C5" product into the hollow sections in the repair zone.

12. Additional operations

Refit the electrical harnesses and reinstall all removed components.

13. Reinitialisation

ESSENTIAL : Reactivate the pyrotechnic systems .

Restore the voltage supply to the vehicle.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries.
