Peugeot 308: Removing - refitting : Electrical harness (Rear section)

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Rear section / Towing ball and harnesses / Removing - refitting : Electrical harness (Rear section)

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

1. Tooling

Tool Reference Description

[1350-ZZ] (*) Stripping tools

2. Preliminary operation

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

3. Removing

CAUTION : Identify the routing of the electrical harness .

CAUTION : Unlock the connectors before disconnecting them. When connecting, check the routing and clipping of the electrical harnesses.

CAUTION : Disconnect the connectors without stressing either the harnesses or the connectors (No pulling on the harnesses is permitted).

Strip :

  • The tailgate
  • The rear bumper

Unclip ; Using the tool [1350-ZZ] :

  • The fasteners of the electrical harnesses
  • The tie wraps securing the electrical harnesses

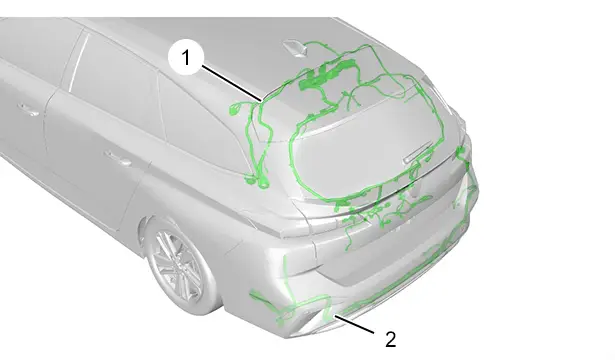

Remove the electrical harnesses (1), (2).

4. Refitting

CAUTION : Always replace the damaged fixings.

CAUTION : Refit the electrical harnesses (1), (2) in accordance with the routing noted prior to removal.

Proceed in the reverse order to removal.

5. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

6. Check

Check the operation of the various equipment.
