Peugeot 308: 10-inch touch screen

This system gives access to the following elements:

• Time and exterior temperature.
• Heating/air conditioning system controls and reminders of settings.
• Settings for driving aid functions, comfort and safety functions, audio equipment and digital instrument panel.
• Settings of functions specific to rechargeable hybrid vehicles.
• Settings of functions specific to electric vehicles.
• Display of visual manoeuvring aid functions.
• Interactive handbook.
• Video tutorials (e.g. screen management, driving aids, voice recognition).
• Audio equipment and telephone controls with display of associated information.
• Connected services and display of associated information.
• Navigation system controls and display of associated information (depending on equipment).
• Voice recognition (depending on equipment).

For safety reasons, always stop the vehicle before performing operations that require sustained attention.

Some functions are not accessible while driving.

• Recommendations
• Applications
• Energy application (Rechargeable hybrid or Electric)

Recommendations

These recommendations are valid for the touch screen and for the i-Toggles (depending on equipment).

The touch screen and the i-Toggles screen are capacitive touch screens.

Do not use pointed objects on the touch screen.

Do not touch the touch screen with wet hands.

► Use a soft, clean cloth to clean the touch screen.

Main controls

Access to one of the home pages Return to the first home page

Direct access to the Climate application

Direct access to the Shortcuts for driving aids

► Swipe down from the upper edge of the touch screen to access a list of quick settings (e.g. Brightness, Diagnostics).

► Depending on the pages displayed on the screen, with or without the context menu, scroll the text by swiping with your finger, as with a smartphone.

Show/Hide context menu

Return to the previous page

► To change the status of a function, press the description for the corresponding line (change confirmed by the slider moving to the right/left: function activated/deactivated).

Access additional information on the function

Access to function parameters

Adding/Removing shortcuts

Short press, ignition off: system on/off.

Short press, ignition on: mute/restore sound.

Long press, ignition on: start standby mode (mute sound, screens and clock display off).

Rotation: volume adjustment.

Applications

Press this button to access the applications wall.

From any page, press the touch screen with three fingers to display the applications wall.

To obtain information about the other applications not listed here, refer to the sections describing the audio and telematic systems.

ADAS

Activation/Deactivation and configuration of the driving aid functions.

Climate

Settings for temperature, air flow, etc.

For more information on Dual-zone automatic air conditioning, refer to the corresponding section.

Activation/Deactivation of the heated steering wheel.

For more information on the Heated steering wheel, refer to the corresponding section.

Seats

Activation/Deactivation and configuration of the seat comfort functions (heating and massages).

For more information on the Heated seats or on the Multi-point massages, refer to the corresponding section.

Settings

Main settings for the audio system, touch screen and digital instrument panel.

Activation/Deactivation and configuration of the exterior lighting, vehicle access and safety functions.

Energy

For rechargeable hybrid versions Access to the rechargeable hybrid system features (energy flow, consumption statistics, deferred charging, e‑SAVE function).

For electric versions Access to the charging system features (energy flow, consumption statistics, deferred charging).

Energy application (Rechargeable hybrid or Electric)

Energy Flow

 For rechargeable hybrid versions

The page shows the operation of the rechargeable hybrid system in real time.

1. Active driving mode
2. Petrol engine
3. Electric motor
4. Estimated traction battery charge level

The energy flows have a specific colour for each type of driving:

• Blue: 100% electrical energy.
• White: energy from the petrol engine.
• Green: energy recovery.

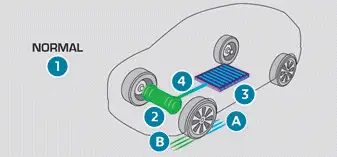

 For electric versions

The page shows the operation of the electric drive train in real time.

1. Active driving mode
2. Electric motor
3. Estimated traction battery charge level
4. Energy flows

The energy flows have a specific colour for each type of driving:

1. Blue: energy consumption
2. Green: energy recovery

Statistics

 For rechargeable hybrid versions

This page shows electrical energy and fuel consumption statistics.

1. Average electrical consumption for the current trip (kWh/100 km) and historical values:

• Blue graph: energy consumed directly from the traction battery.
• Green graph: energy regenerated during deceleration and braking phases used to recharge the traction battery.

2. Average fuel consumption for the current trip (l/100 km) and historical values (orange graph).

 For electric versions

This page shows electrical energy consumption statistics.

• Blue graph: energy consumed directly from the traction battery.
• Green graph: energy regenerated during deceleration and braking phases used to recharge the traction battery.

  The average result for the current trip is stated in kWh/100 km.

It is possible to view data for the last 30, 60 or 180 minutes by clicking on the corresponding value on the left of the graph.

Charging

This page allows you to programme deferred charging.

For more information on Charging the traction battery, refer to the corresponding section.

e‑SAVE (Rechargeable hybrid)

The e‑SAVE function makes it possible to reserve all or part of the electrical energy of the traction battery to be used later during a journey (e.g. passing through an urban area or an area reserved for electric vehicles).

► Activate the function by pressing Set e‑SAVE, then select the electric range to be reserved (6 miles (10 km), 12 miles (20 km) or the full range Maximum).

Activation of the function is confirmed by the lighting of this indicator lamp on the instrument panel and the indication of the energy reserve in miles or kms.

► To use the energy reserve, choose the Electric driving mode in the mode selector.

If the requested range exceeds the available range (not recommended), the internal combustion engine starts to recharge the traction battery up to the requested threshold. This leads to excessive fuel consumption.
