Peugeot 308: Trip computer

• Data displayed on the instrument panel
• Definitions

Data displayed on the instrument panel

Displaying the different tabs

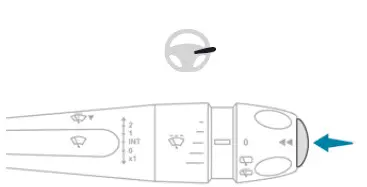

► Pressing the button located on the end of the wiper control stalk displays the following tabs in turn:

- Current information:

• Current consumption (Petrol, Diesel or Hybrid).
• Time counter for Stop & Start (Petrol or Diesel).
• Percentage of the current journey travelled in all-electric driving mode (Hybrid or Rechargeable hybrid).
• Total distance recorder (Rechargeable hybrid or Electric).

- Trips "1" then "2":

• Average speed.
• Average consumption.
• Distance travelled.

End of trip page

(Depending on version)

When the ignition is switched off, the instrument panel automatically displays an additional page of the trip computer that recapitulates information about the last trip.

The end of trip page contains the following information:

• Range.
• Trip time.
• Distance travelled.
• Percentage of the current journey travelled in all-electric driving mode (Hybrid or Rechargeable hybrid).
• Average consumption.

Trip reset

► When the desired trip is displayed, press the button on the end of the wiper control stalk for more than 2 seconds.

Trips "1" and "2" are independent and are used in the same way.

Definitions

Range

(miles or km)

(Traction battery charge level percentage)

(Electric)

Distance that can still be travelled with the fuel remaining in the tank (based on the average fuel consumption over the last few miles (kilometres) travelled).

Actual traction battery charge level and remaining range (Electric).

This value may vary following a change in driving style or terrain, leading to a significant change in current fuel consumption.

 For petrol or Diesel versions

When the range falls below 19 miles (30 km), dashes are displayed.

After filling with at least 5 litres of fuel, the range is recalculated and is displayed if it exceeds 62 miles (100 km).

Dashes appearing permanently in place of numbers while driving indicates a malfunction.

Consult a PEUGEOT dealer or a qualified workshop.

 For electric versions

Two successive alert levels indicate that the energy available has dropped to a low level.

For more information on the Indicators, and in particular the Charge level indicator, refer to the corresponding section.

Current consumption

(mpg or l/100 km or km/l)

(miles/kWh or kWh/100 km or km/kWh) (Electric)

Calculated during the last few seconds.

This function is only displayed at speeds above 19 mph (30 km/h).

Average consumption

(mpg or l/100 km or km/l)

(miles/kWh or kWh/100 km or km/kWh) (Electric)

Calculated since the last trip computer reset.

Average speed

(mph or km/h)

Calculated since the last trip computer reset.

Distance travelled

(miles or km)

Calculated since the last trip computer reset.

Stop & Start time counter

(minutes/seconds or hours/minutes)

If your vehicle is fitted with the Stop & Start function, a time counter calculates the time spent in STOP mode during a journey.

The time counter is reset each time the ignition is switched on.
