Peugeot 308: Removing - refitting : Inlet air pressure and temperature sensor

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

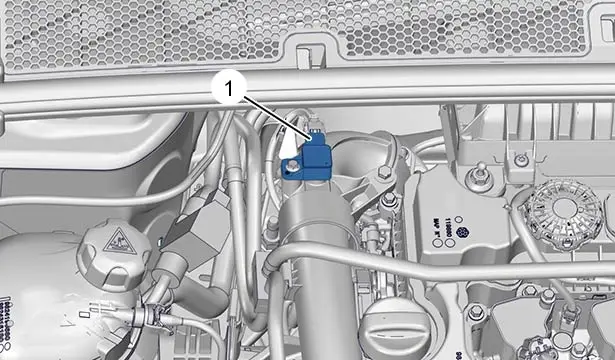

1. Location

(1) Inlet air pressure and temperature sensor.

2. Preliminary operation

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

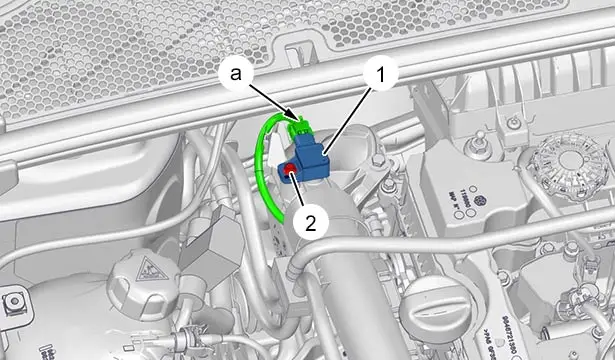

3. Removing

Disconnect the connector(at "a").

Remove :

• The bolt (2)
• The inlet air pressure and temperature sensor (1)

4. Refitting

CAUTION : Observe the tightening torques .

Refit :

• The inlet air pressure and temperature sensor (1)
• The bolt (2)

Reconnect the connector (at "a").

5. Additional operation

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).
