Peugeot 308: Removing - refitting : Motorised throttle housing

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

1. Parts which must always be replaced

2. Tooling

Workshop equipment : Diagnostic tool.

3. Preliminary operation

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Removing

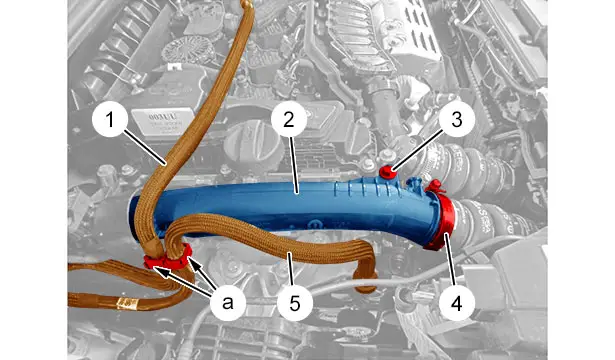

Slacken the clip (4).

Remove the bolt (3).

Unclip the clips (at "a").

Move aside the fuel supply pipes (1), (5).

Remove the air inlet union (2).

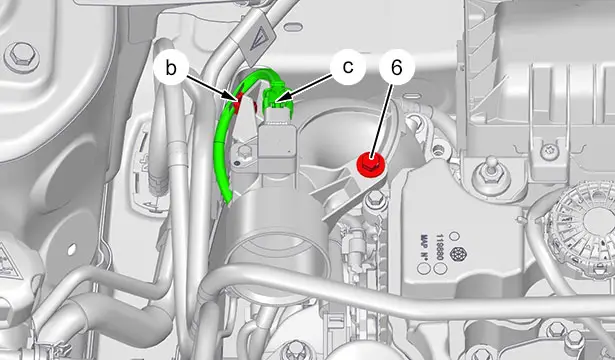

Disconnect the connector (at "c").

Unclip the electrical harness (at "b").

Remove the bolt (6).

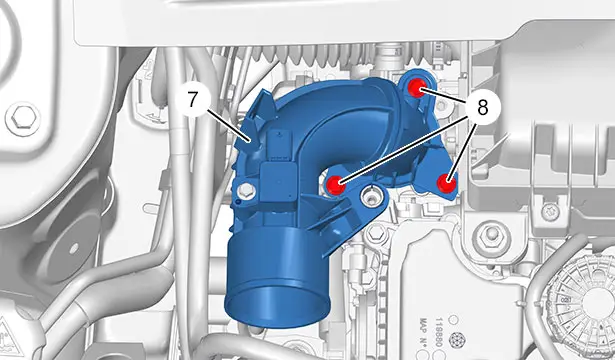

Remove :

• The 3 bolts (8)
• The motorised butterfly housing air inlet union (7)

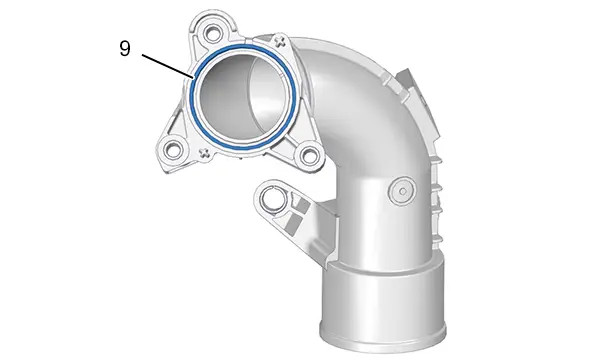

Remove the motorised throttle housing air inlet union (7) seal (9).

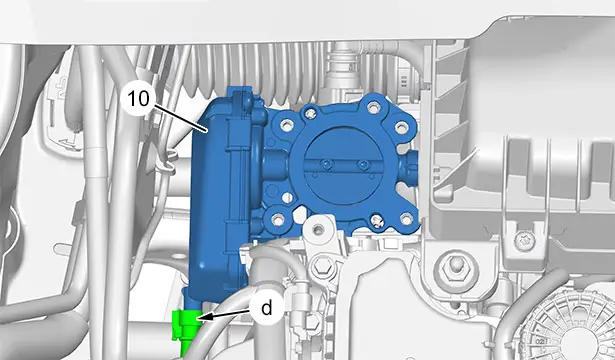

Disconnect the connector (at "d").

Remove the motorised throttle housing (10).

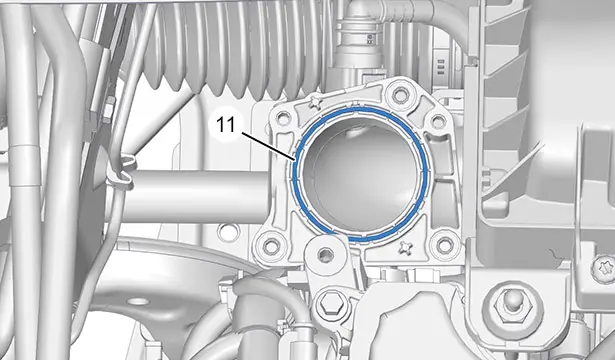

Remove the motorised throttle housing ‎(10) seal ‎(11).

5. Refitting

CAUTION : Observe the tightening torques .

CAUTION : Check the positioning of the new motorised throttle housing (10) seal (11).

Fit the new motorised throttle housing (10) seal (11).

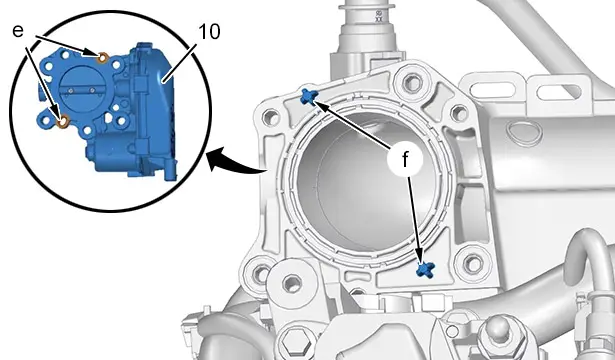

Refit the motorised throttle unit (10) (Align the marks "e", "f").

CAUTION : Check the positioning of the new motorised throttle housing (10) air inlet union (7) seal (9).

Fit the new motorised throttle housing (10) air inlet union (7) seal (9).

Refit :

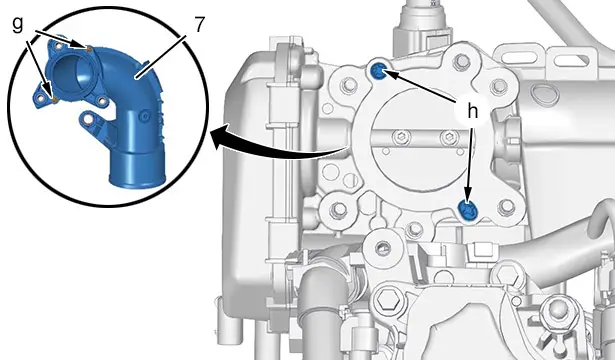

• The motorised butterfly housing (10) air inlet union (7) (Align the marks "g", "h")
• The 3 bolts (8)

Reconnect :

• The connector (at "d")
• The connector (at "c")

Refit the bolt (6).

Clip the electrical harness (at "b").

Refit the air inlet union (2).

Tighten the clip (4).

Refit the bolt (3).

Reclip the fuel pipes ‎(1), (5) (at "a").

6. Additional operation

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Initialisation

N.B. : If the motorised throttle housing is replaced : Carry out the necessary operations ; Using the diagnostic tool.

N.B. : Initialise the auto-adaptive values (Stops) ; Using the diagnostic tool. Follow the procedure indicated in the replacement parts menu : Motorised throttle housing.
