Peugeot 308: Check : Vacuum pump

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

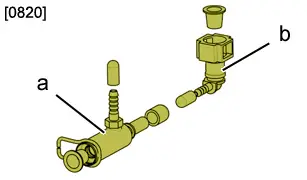

1. Tooling

2. Check

Remove :

• The engine cover
• The union of the turbocharger air inlet

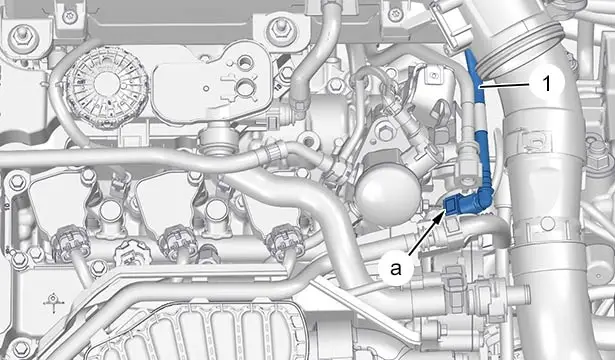

Uncouple the vacuum pipe (1) (at "a").

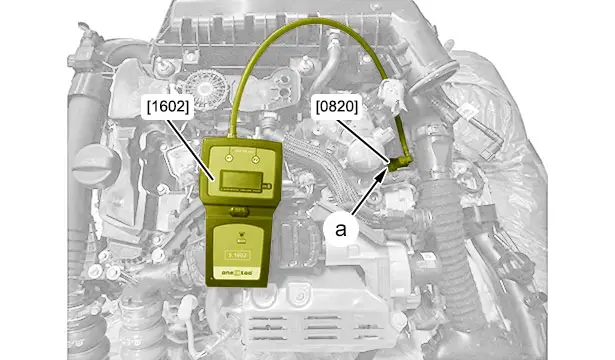

Connect the tool [1602] and the click-on connector of the tool [0820] (at "a").

Start the engine to run at idle.

Check the vacuum value.

CAUTION : If the value is outside the tolerance ; Check the vacuum pump directly ; Using the tools [1602], [0820] (at "a").

Remove the tools [1602], [0820].

Refit :

• The union of the turbocharger air inlet
• The engine cover

3. Checking values

Check the braking system .

CAUTION : If the value is outside the tolerance ; Check the sealing of the circuit at the link pipes and on the brake servo.
