Peugeot 308: Charging system (Electric)

• 400 V electrical system
• Charging connectors and indicator lamps

400 V electrical system

For more information, refer to the General recommendations on electrified vehicles and the Specific recommendations on rechargeable hybrid or electric vehicles.

The electric drive system, which operates at a voltage of approximately 400 V, is identified by orange cables and its components are marked with this symbol:

An electric vehicle's power train can become hot during use and after switching off the ignition.

Comply with the warning messages shown on the labels, particularly inside the charging flap.

Traction battery

This battery stores the energy that powers the electric motor and the thermal comfort equipment in the passenger compartment. It is discharged during use, and must therefore be regularly recharged. There is no need to wait for the traction battery to fall to its reserve level before recharging.

The range of the battery may vary according to the type of driving, the route, the use of thermal comfort equipment and the ageing of its components.

The lifespan of the traction battery depends on multiple factors, such as climatic conditions, distance travelled and how often it has been fast-charged.

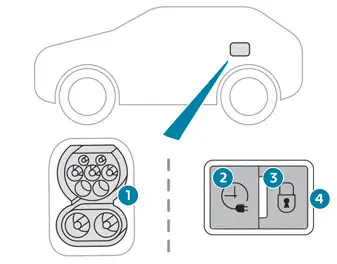

Charging connectors and indicator lamps

1. Charging connectors
2. Deferred charging activation button
3. Nozzle locking indicator lamp
   Fixed red: nozzle positioned correctly and locked in the connector.
   Flashing red: nozzle incorrectly positioned or locking not possible.

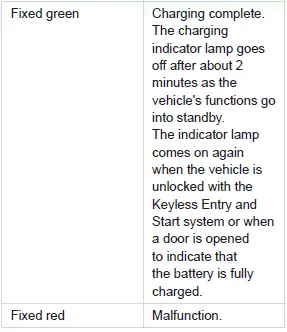

4. Charging indicator lamp

In case of impact, even light, against the charging flap, do not use it.

Do not dismantle or modify the charging connector - risk of electrocution and/or fire! Contact a PEUGEOT dealer or a qualified workshop.

Charging cables, sockets and chargers

The charging cable supplied with the vehicle (depending on version) is compatible with the electrical systems in the country of sale. When travelling abroad, check the compatibility of local electrical systems with the charging cable.

A full range of charging cables is available from your dealer.

Contact a PEUGEOT dealer or a qualified workshop for more information and to obtain suitable charging cables.

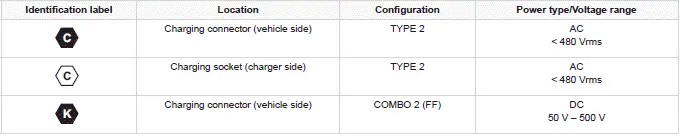

Identification labels on charging sockets/connectors

Identification labels are affixed to the vehicle, charging cable and charger to inform the user about which device needs to be used.

The meaning of each identification label is as follows:

Standard charging, mode 2

  Domestic socket

(standard charging - alternating current (AC) )

Mode 2 with a standard socket: 8 A maximum charging current.

Mode 2 with a Green'Up socket: 16 A maximum charging current.

To have this type of socket installed, call a professional installer.

  Specific domestic charging cable - mode 2 (AC)

Identification label C on the charging connector (vehicle side).

Specific domestic charging cable (mode 2)

You must not damage the cable.

In the event of damage, do not use it and contact a PEUGEOT dealer or a qualified workshop to replace it.

Accelerated charging, mode 3

  Accelerated charging unit (depending on version)

(accelerated charging - single-phase or three-phase alternating current (AC) )

In mode 3 with an accelerated charging unit: 32 A maximum charging current.

In mode 3 with an accelerated charging unit (Wallbox): 32 A maximum charging current.

  Charging cable, mode 3 (AC)

Identification labels C on the charging connector (vehicle side) and on the socket (charger side).

Accelerated charging unit

Do not disassemble or modify the charging unit - Risk of electrocution and/or fire! Refer to the charging unit manufacturer's user manual for the operating instructions.

Superfast charging, mode 4

  Fast public charger

(superfast charging - direct current (DC) )

  Charging cable, mode 4 (DC)

(integrated into the fast public charger)

Identification label K on the charging connector (vehicle side).

Only use fast public chargers where the cable length does not exceed 30 metres.
