Peugeot 308: Tightening torques : Hybrid drive train cooling circuit
Peugeot 308 2021-2024 (P5) Service Manual / Mechanical :: Engine / Cooling system / Tightening torques : Hybrid drive train cooling circuit
1. Hybrid drive train cooling circuit electric coolant pump
| Marking | Description | Tightening torque |

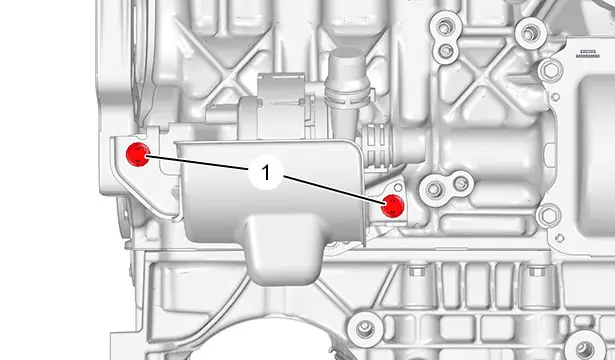

| (1) | Screw (Hybrid drive train cooling circuit electric coolant pump bracket / Cylinder block ) | 0,8 daNm |
| Marking | Description | Tightening torque |

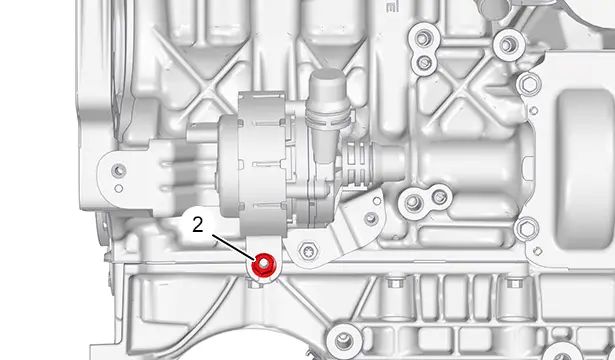

| (2) | Nut (Hybrid drive train cooling circuit electric coolant pump bracket / support ) | 0,8 daNm |
| Marking | Description | Tightening torque |

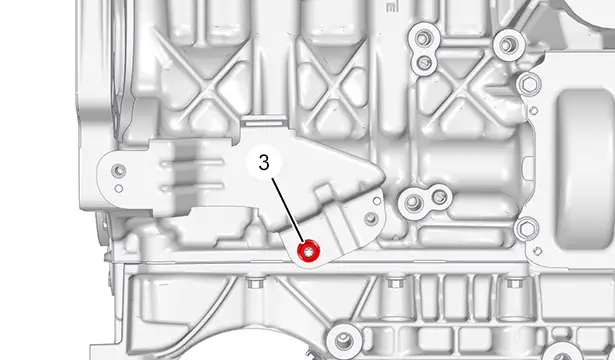

| (3) | Nut ( support / Cylinder block ) | 0,8 daNm |
2. Cooling fan
| Marking | Description | Tightening torque |

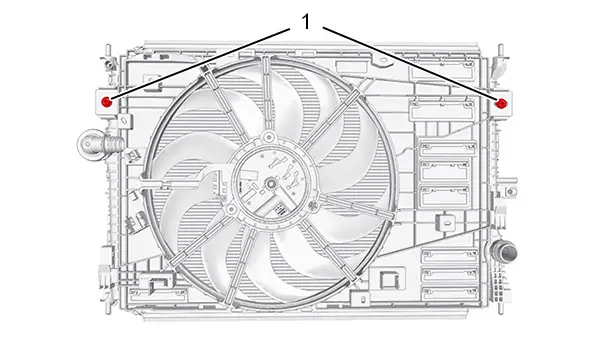

| (1) | Bolt (Cooling fan / Hybrid drive train cooling circuit radiator) | 0,4 daNm |
3. Drive train cooling circuit connector
| Marking | Description | Tightening torque |

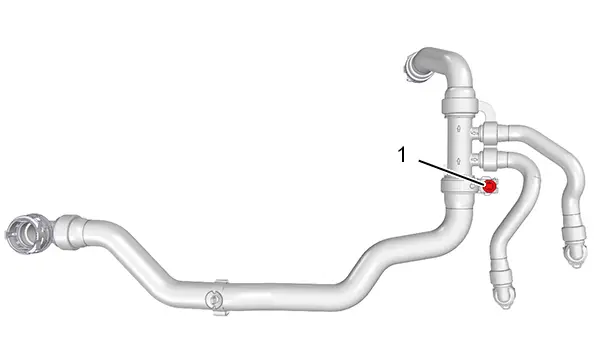

| (1) | Bolt (Drive train cooling circuit connector / Automatic gearbox) | 0,8 daNm |
