Peugeot 308: Replacement : Plenum chamber assembly

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be isolated by an authorised technician.

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : Any repair work carried out on a vehicle with on board electric energy (electric vehicle/hybrid vehicle) must be carried out by an authorised person.

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

1. Information

Types of spot welds or beads using the electric arc process :

• MIG braze welding with cupro-aluminium filler used with an inert gas
• MAG welding with steel filler metal and active gas

Designation of the high strength panels :

• High strength (HSS) : High strength steel
• Very high strength (VHSS) : Very high strength steel
• Ultra high strength (UHSS) : Ultra high strength steel

N.B. : Use the products recommended by the manufacturer .

2. Tooling

Operation to be carried out with one of the following systems :

• Swan’s neck drill for cutting out electric spot welds
• Hot air blower
• Electronic measurement system
• Mechanical measurement system

Tool	Reference	Description
	[1366-ZZ]	Toolkit for testing electric spot welds
	[1366]	Samples for testing electric spot welds
	[1126]	Set of drill bits for removing spot welds

3. Preliminary operations

ESSENTIAL : Deactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required before disconnecting the ancillaries batteries .

Disconnect the ancillaries batteries (Following the specific procedure ).

CAUTION : Either remove or protect those components which are in the repair zone and risk being damaged by the heat or the dust.

Remove :

• The windscreen
• The windscreen wiper motor
• The dashboard
• The heating unit
• The front door
• The interior trims
• The floor carpet

Release the electrical harnesses.

Replace the front wheel arch assemblies.

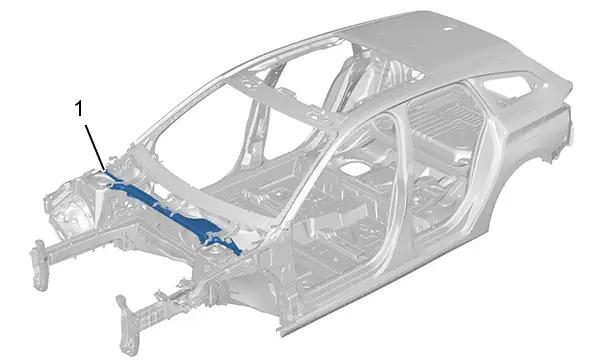

4. Location of the replacement part

Marking	Description
(1)	Plenum chamber assembly

5. Identification of the replacement part

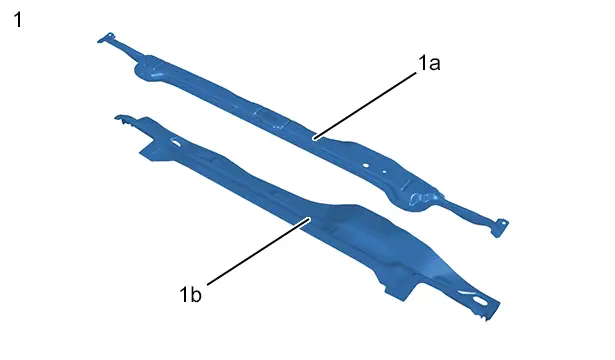

5.1. Composition : Plenum chamber assembly

Marking	Description	Thickness	Nature/classification
(1)	Plenum chamber assembly	-	-
(1a)	Scuttle closing panel central stiffener	1,05 mm	Very high strength (VHSS)
(1b)	Scuttle closing panel lower part	0,80 mm	High strength (HSS)

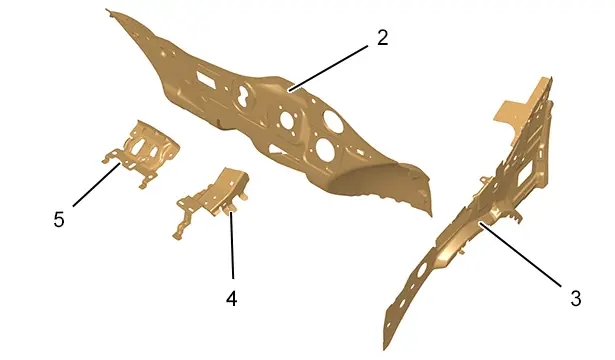

5.2. Identification of the parts adjacent to the replacement part

Marking	Description	Thickness	Nature/classification
(2)	Lower bulkhead	1,15 mm	High strength (HSS)
(3)	Front wing inner panel	0,95 mm	Very high strength (VHSS)
(4)	Scuttle spacer	1,25 mm	High strength (HSS)
(5)	Wiper motor bracket	0,95 mm	Mild steel

CAUTION : Take into account the difference in thickness of the parts when adjusting the welding station.

6. Replacement part preparation

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

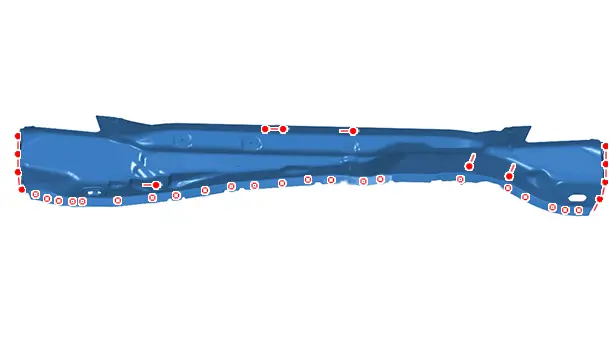

Mark then drill to a diameter of 7 mm for later plug welding.

Prepare the mating edges and protect them using a weldable primer  (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

7. Cutting of the part on the body

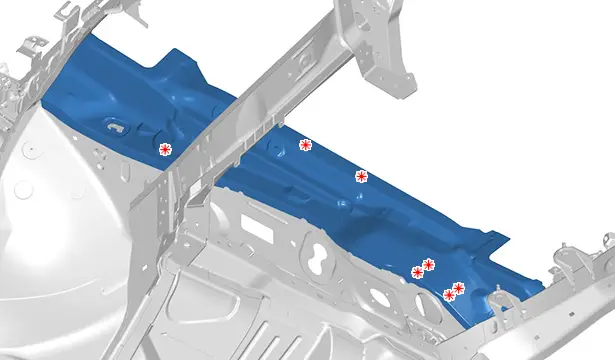

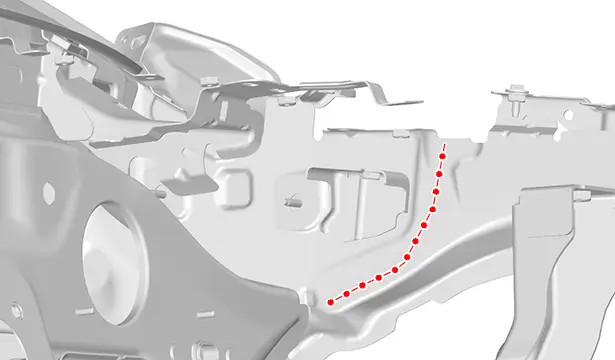

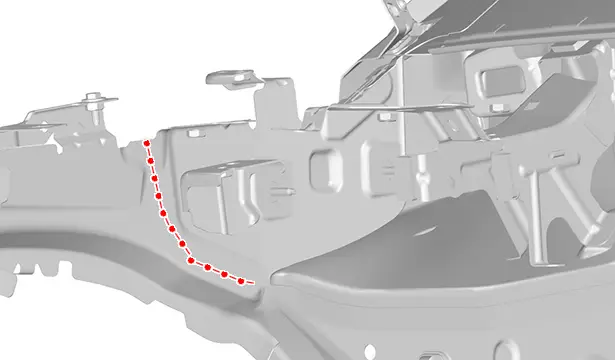

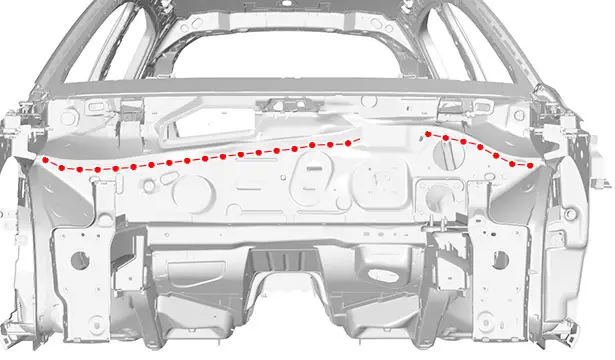

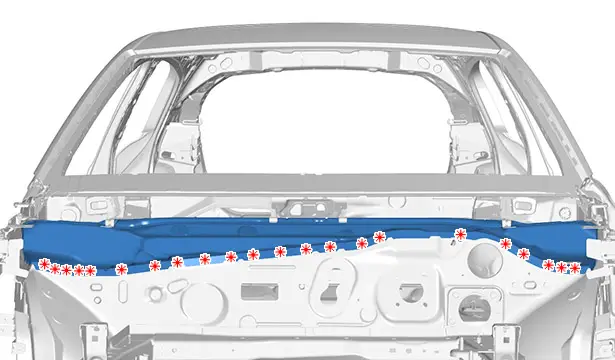

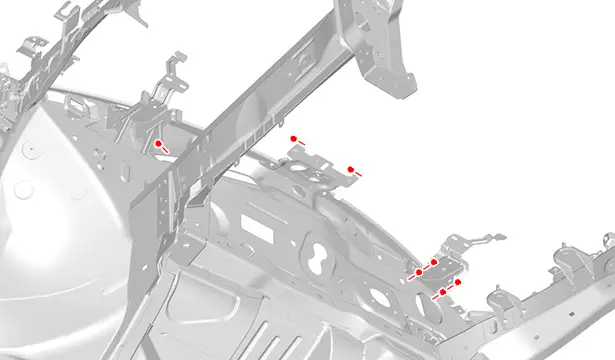

Cut out the spot welds .

Cut out the spot welds .

Cut out the spot welds .

Cut out the spot welds .

Remove the plenum chamber assembly .

8. Cleaning and preparation of the body

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

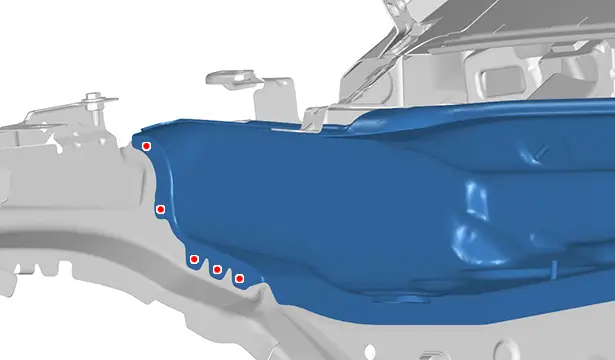

Prepare the mating edges and protect them using a weldable primer  (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

Prepare the mating edges and protect them using a weldable primer  (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

Prepare the mating edges and protect them using a weldable primer  (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

Prepare the mating edges and protect them using a weldable primer  (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

9. Adjustment

Position :

• The scuttle closing panel assembly
• The components for adjusting

Check :

• The position, using one of the approved measuring systems
• The fits and clearances

Clamp the part into position.

10. Welding

CAUTION : Set the welding station.

Setting of the welding station :

• Electric spot weld testing ; Using the tool [1366-ZZ]
• Samples for testing electric spot welds ; Using the tool [1366]

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

Weld with MAG plug welds.

Grind the MAG plug welds.

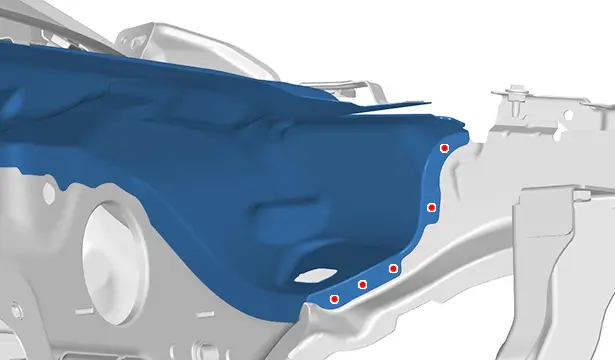

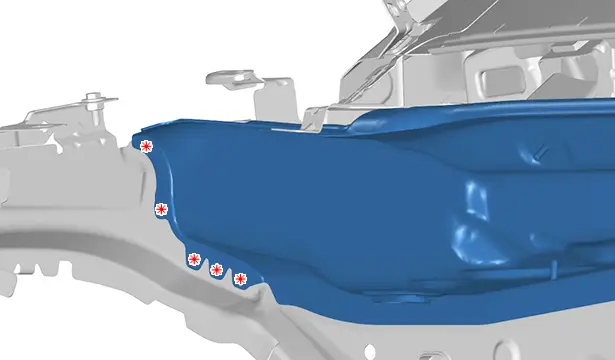

Weld with electric spot welds.

Weld with electric spot welds.

Weld with electric spot welds.

N.B. : The remaining electric spot welds will be applied during the welding of the wheel arch assembly.

11. Sealing protection

Apply :

• A layer of etch primer to the zones exposed
• Sealing mastic (index "A1")

Painting, then spraying of the index "C5" product into the hollow sections in the repair zone.

12. Additional operations

Refit the electrical harnesses and reinstall all removed components.

13. Reinitialisation

ESSENTIAL : Reactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required after reconnecting the ancillaries batteries .

Reconnect the ancillaries batteries (Following the specific procedure ).
