Peugeot 308: Stripping-assembling : Dashboard

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Tooling

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 1 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove :

• The dashboard
• The dashboard air vents
• The multifunction screen
• The instrument panel
• Dashboard switches
• The passenger storage compartment
• The audio system
• The passenger airbag
• The loudspeakers
• The hands-free unit

3. Stripping

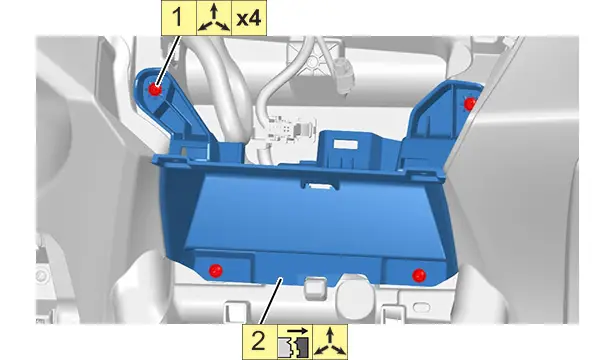

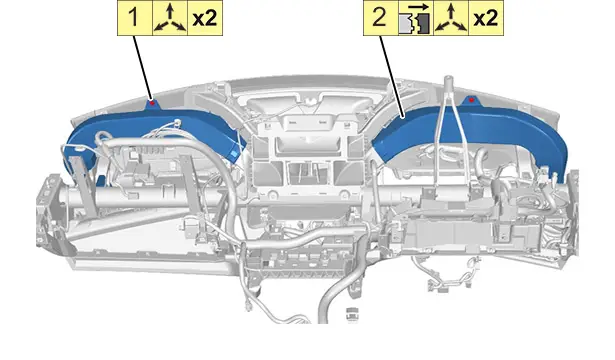

3.1. Dashboard front panel

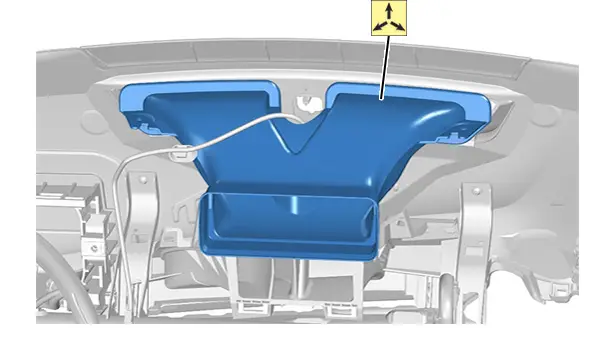

3.2. Air ducts

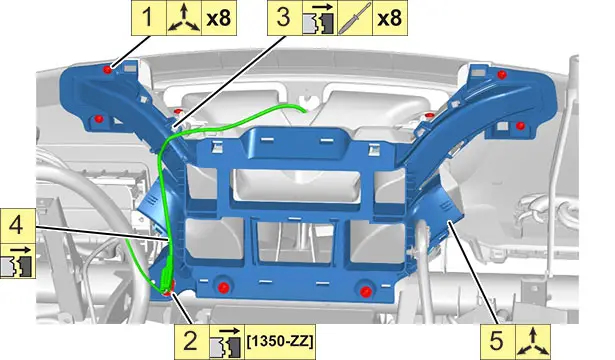

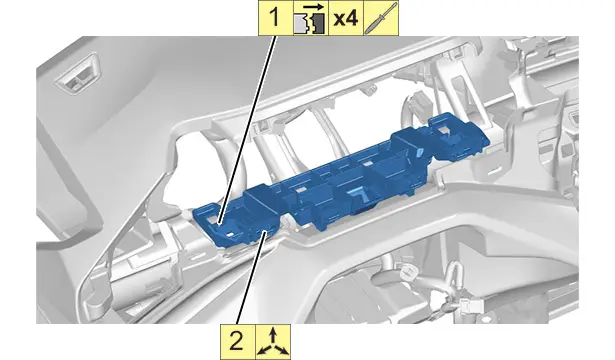

3.3. Dashboard support

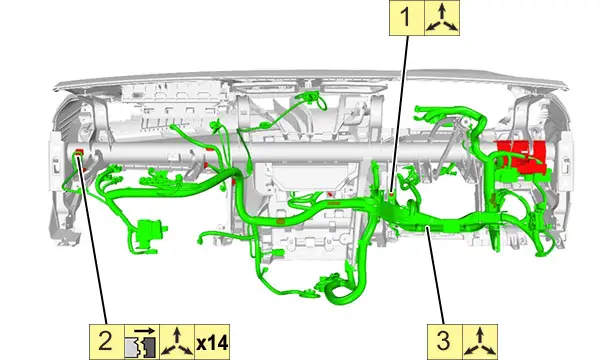

3.4. Electrical harnesses

4. Assembling

Carry out the operations in the reverse order to the stripping operations.

5. Additional operations

Refit :

• The hands-free unit
• The loudspeakers
• The passenger airbag
• The audio system
• The passenger storage compartment
• Dashboard switches
• The instrument panel
• The multifunction screen
• The dashboard air vents
• The dashboard

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

6. Check

Check the operation of the various equipment.
