ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.
1. Location

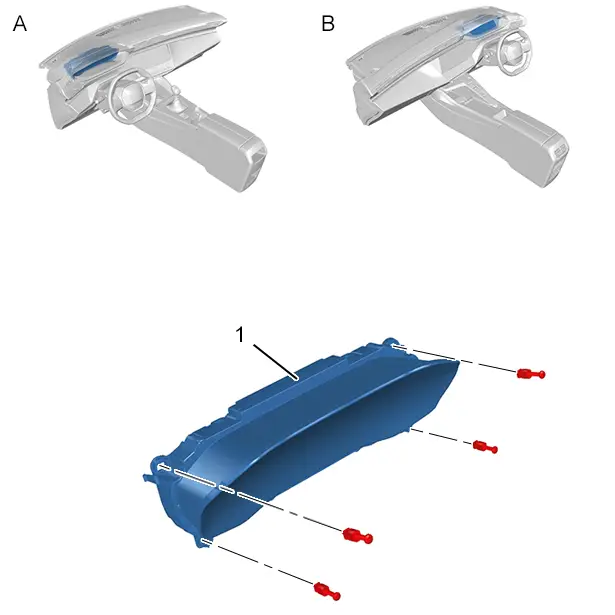

"A" : left-hand drive.
"B" : right-hand drive.
Identification | Description | Quantity |
(1) | Instrument panel | 1 |
2. Tooling
Tool | Reference | Description |
| [1350-ZZ] | Stripping tools |
3. Preliminary operations
CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries (depending on equipment).

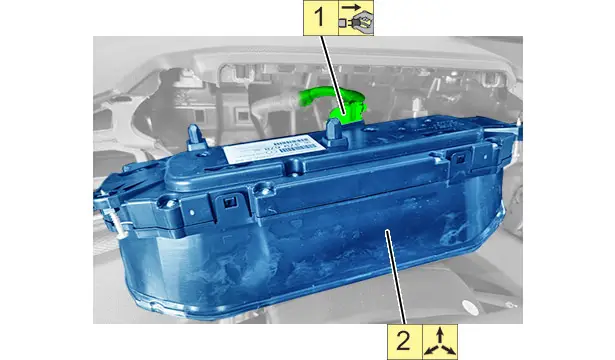

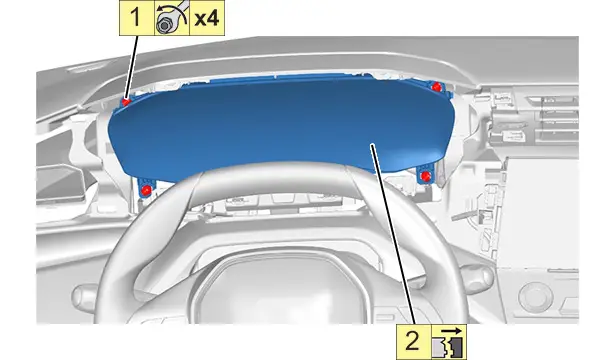

4. Removing

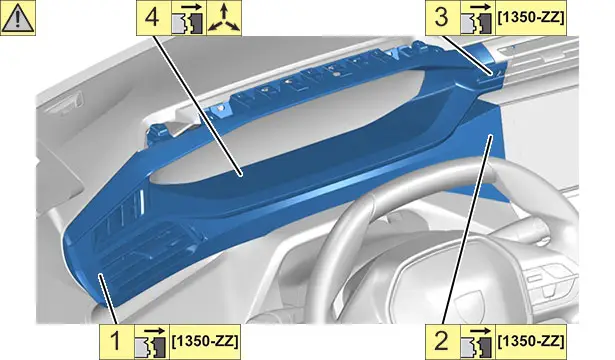

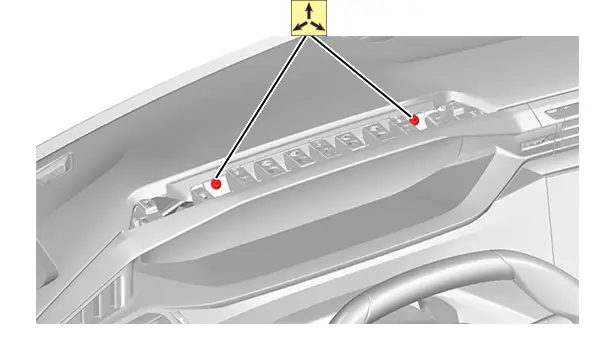

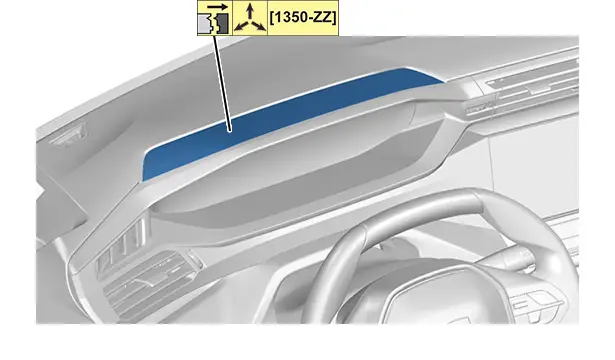

CAUTION : Observe the order of operations to avoid damaging the left-hand side air vent assembly and the adjacent parts.
5. Refitting
Proceed in the reverse order to removal.
6. Additional operations
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries (depending on equipment).
7. Check
N.B. : When replacing the instrument panel, carry out an automatic configuration ; Using the diagnostic tool.
Check the operation of the various equipment.
