Peugeot 308: Identification : Anti-chip protection
ESSENTIAL : Observe the safety and cleanliness recommendations
.
CAUTION : Use the products recommended by the manufacturer
.
1. Precautions
Do not block the drain holes in the inner sill.
All the cage nuts and welded studs must be protected prior to spraying on the anti-chip protection.
2. Identification : Anti-chip protection

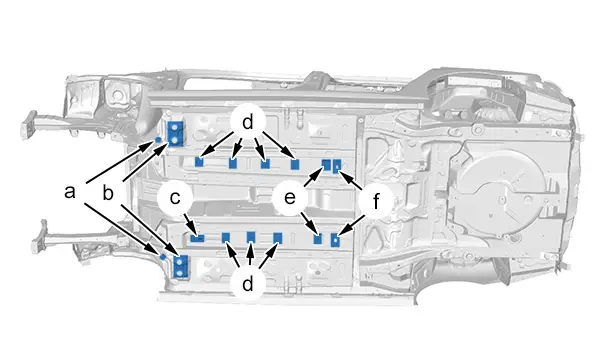

2.1. Exterior zones without anti-chip protection - Acoustic
| Identification | Description | Zone without anti-chip protection |
| "a" | Chassis leg to inner sill connection holes (right-hand and left-hand) | Pilot holes (front section) |
| "b" | Chassis leg to inner sill connection holes (right-hand and left-hand) | Front subframe support (Rear section)41,50 mm diameter |
| "c" | Front left floor | Pilot holes |
| "d" | Front floor (right-hand and left-hand) | Front floor drain hole |
| "e" | Front floor (right-hand and left-hand) | Front floor drain hole |
| "f" | Front floor / Heel plate (right-hand and left-hand) | Heel floor drain holes |

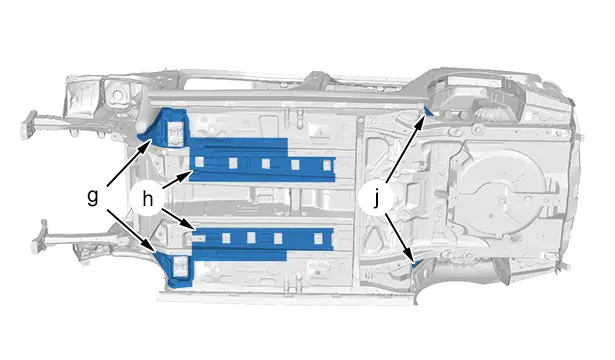

2.2. Exterior zones with light anti-chip protection with deflector under body
| Identification | Description | Vulnerability on the zone |
| "g" | Chassis leg/sill link (right-hand and left-hand) | Low vulnerability zones |
| "h" | Front floor (right-hand and left-hand) | Low vulnerability zones |
| "j" | Front upper side member (right-hand and left-hand) | Low vulnerability zones |
N.B. : Spray from the anti-chip protection product is admissible outside the specified zones, except on areas that must not have anti-chip protection, and trim items.

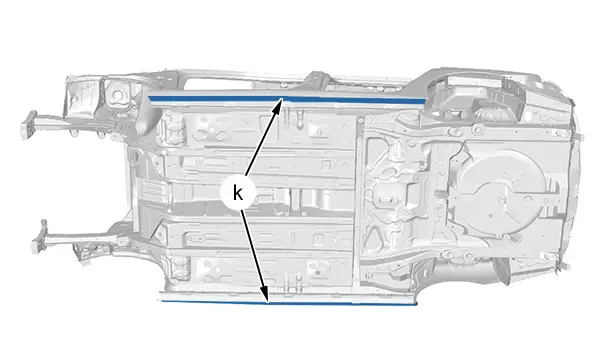

2.3. Exterior zones with normal anti-chip protection with underbody front deflector
| Identification | Description | Vulnerability on the zone |
| "k" | Outer sill (right-hand and left-hand) | Normal vulnerability zone |
N.B. : Spray from the anti-chip protection product is admissible outside the specified zones, except on areas that must not have anti-chip protection, and trim items.

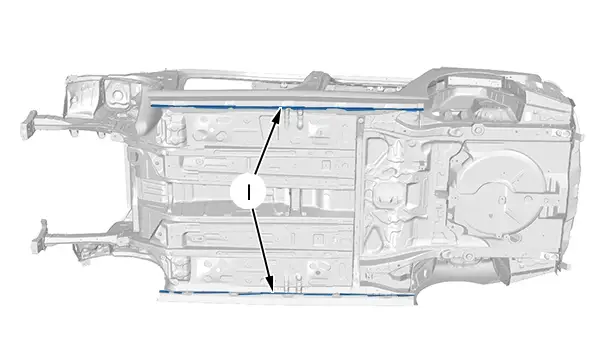

2.4. Exterior zones with reinforced anti-chip protection with or without deflector under body
| Identification | Description | Vulnerability on the zone |
| "l" | Inner sill (floor) | Strengthened vulnerability zone |
N.B. : Spray from the anti-chip protection product is admissible outside the specified zones, except on areas that must not have anti-chip protection, and trim items.

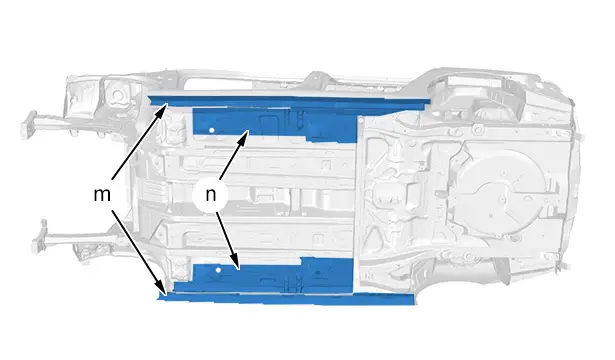

2.5. Exterior acoustic and strengthened attack zones with underbody front deflector
| Identification | Description | Vulnerability on the zone |
| "m" | Sill (floor) | Acoustic and high vulnerability zones |
| "n" | Front floor (right-hand and left-hand) | Acoustic and high vulnerability zones |
N.B. : Spray from the anti-chip protection product is admissible outside the specified zones, except on areas that must not have anti-chip protection, and trim items.

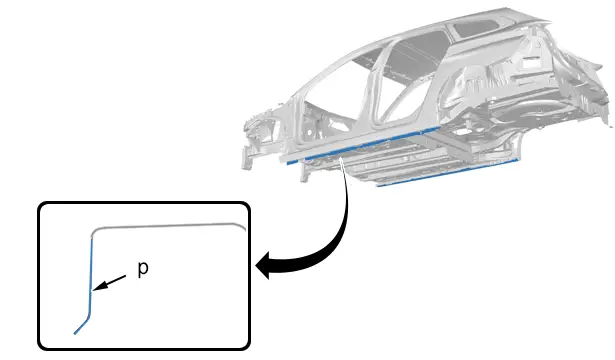

3. Detailed view : Outer sill (Body sill) Strengthened vulnerability zone
| Identification | Description | Vulnerability on the zone |
| "p" | Inner sill (floor) | Strengthened vulnerability zone |
N.B. : Spray from the anti-chip protection product is admissible outside the specified zones, except on areas that must not have anti-chip protection, and trim items.

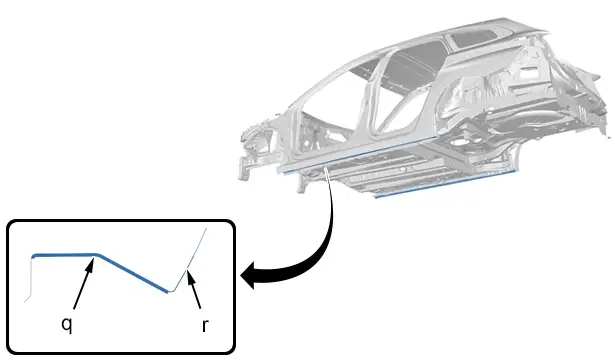

4. Detailed view : Outer sill (Body sill) Acoustic and high vulnerability zones
| Identification | Description | Vulnerability on the zone |
| "q" | Inner sill (floor) | Acoustic and high vulnerability zones |
| "r" | Passenger compartment side panel (floor) | Acoustic and high vulnerability zones |
N.B. : Spray from the anti-chip protection product is admissible outside the specified zones, except on areas that must not have anti-chip protection, and trim items.

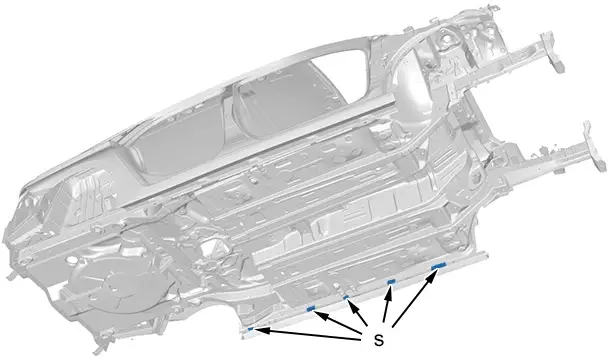

5. Check
| Identification | Description | Characteristic |
| "s" | Drain holes (Inner sill / Outer sill) (floor) | Water evacuation zone |
CAUTION : Do not block the inner sill drain holes (at "s").
