Peugeot 308: Location : Cold stamping of the VIN

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be disconnected electrical supply.

1. Characteristics of the VIN

The regulation size of the punches for cold stamping is 7 mm.

The VIN consists of 17 characters.

The VIN is always located on the right-hand section of the vehicle.

Depending on the vehicle, the VIN may be stamped on one or two lines.

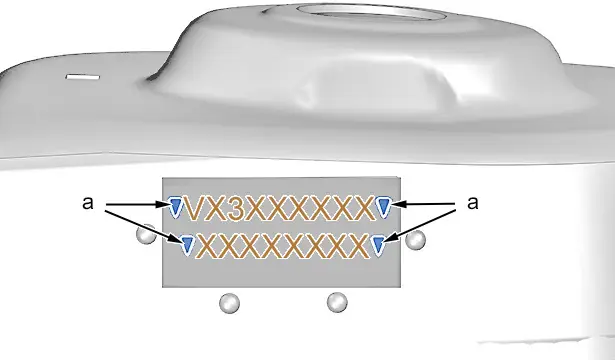

"a" Original punch.

Each line forming a VIN must have a non alphanumeric character "a" at each end.

2. Location of the original cold stampings

Identification	Vehicle	Location	Number of lines
"A"	307 (all types)407 (all types)806Expert IPartner IPartner II	Front right wing inner panel	1
"B"	308 (all types)	Front right suspension mounting (Wing side)	2
"C"	407 CoupÚ	Front right suspension mounting (Engine side)	1
"D"	3008 ( all models)5008 (all types)Partner IIIRCZ308 (T9)(all types)308 (P5)(all types)408 (P54)(all types)508 (R8) ( all models)208 (P21) ( all models)2008 (P24) ( all models)	Front right wheel arch (Upper section)	2
"E"	1007207 ( all models)208 (A9 )2008 (A94 )301	Bulkhead flange right-hand section	1
"F"	508 ( all models)4007EXPERT 4 (K0) ( all models)TRAVELLER (K0) ( all models)	Bulkhead flange right-hand central section	1
"G"	ION	Rear right hand wheel arch	1
"H"	Bipper	Front right floor	2
"J"	107108	Front right seat crossmember	1
"K"	206 ( all models)206+	Rear panel  (right-hand side)	1
"L"	BOXER ( all models)	Front right wheel arch	2
"M"	807Expert III	Lower windscreen aperture	1
"N"	Landtrek	Rear right-hand wheel arch on chassis	1

3. Location of the VIN cold stamping areas

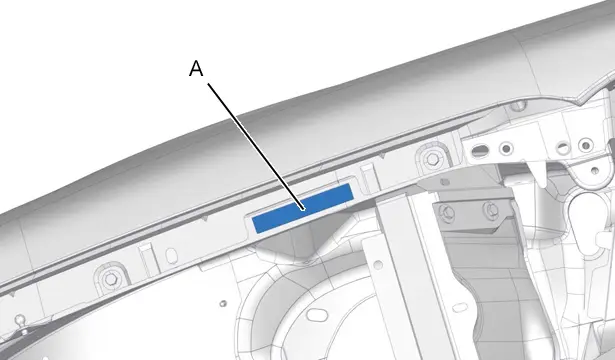

3.1. Front wing inner panel zone location (Right-hand side )

"A" : Cold stamping of the VIN.

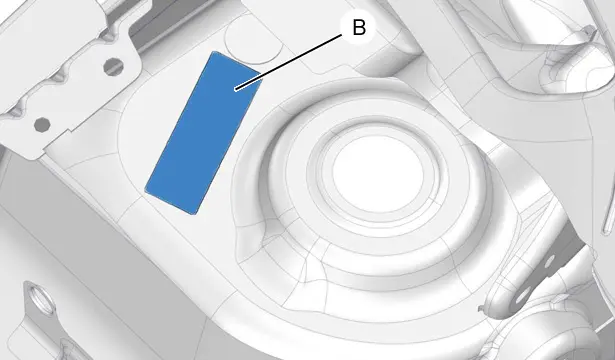

3.2. Front right suspension mounting zone location (Wing side)

"B" : Cold stamping of the VIN.

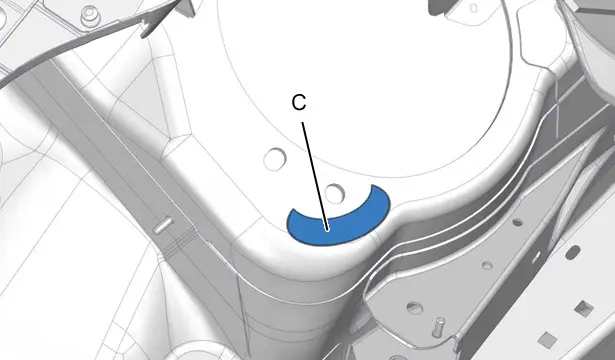

3.3. Front right suspension mounting zone location (Engine side)

"C" : Cold stamping of the VIN.

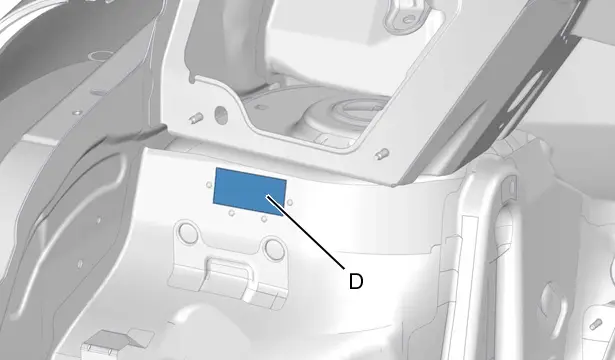

3.4. Front right wheel arch upper section zone location

"D" : Cold stamping of the VIN.

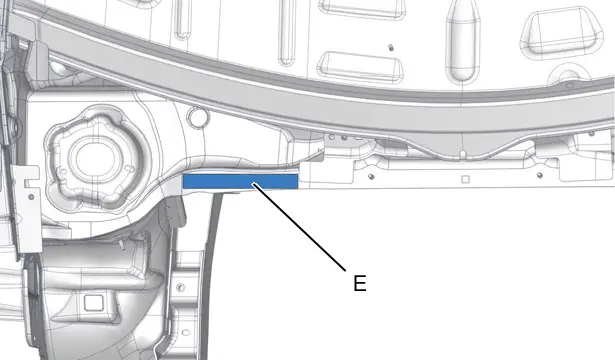

3.5. Bulkhead flange right-hand section zone location

"E" : Cold stamping of the VIN.

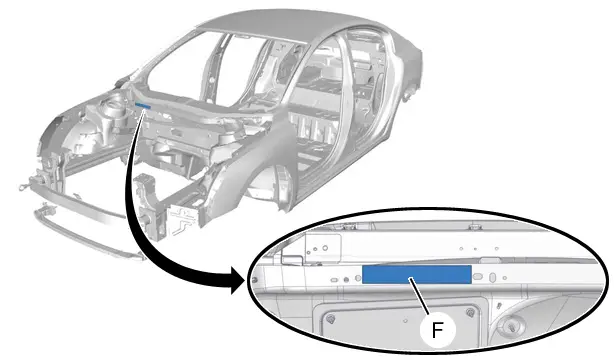

3.6. Bulkhead flange right-hand section zone location

"F" : Cold stamping of the VIN.

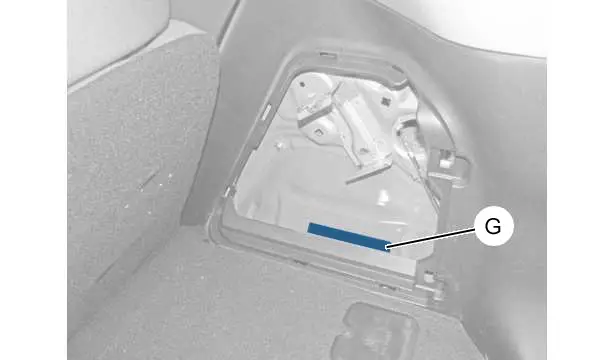

3.7. Rear right wheel arch zone location

"G" : Cold stamping of the VIN.

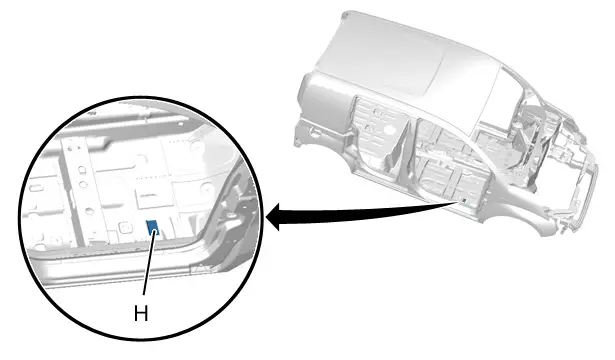

3.8. Front right floor zone location

"H" : Cold stamping of the VIN.

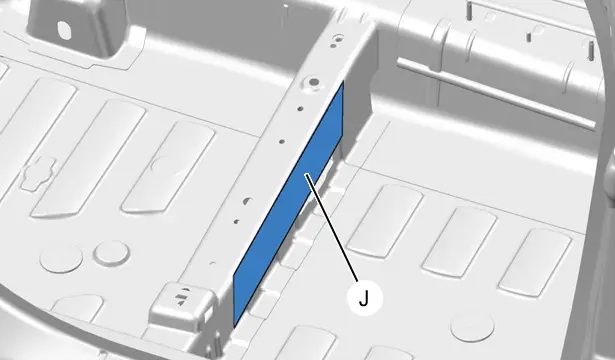

3.9. Front right seat crossmember zone location

"J" : Cold stamping of the VIN.

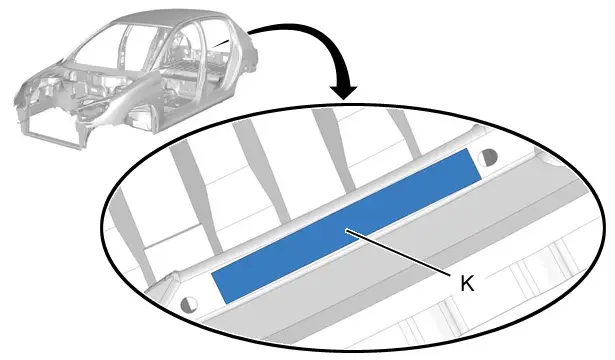

3.10. Rear panel zone location (Right-hand side )

"K" : Cold stamping of the VIN.

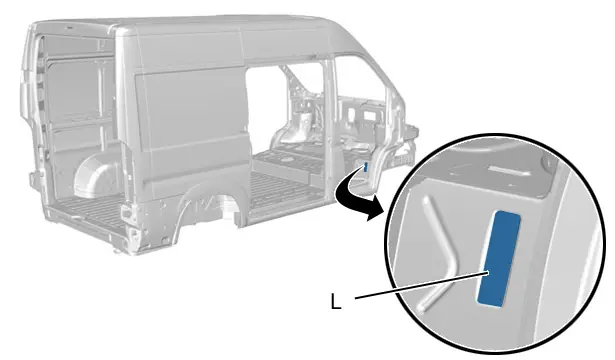

3.11. Front right wheel arch zone location

"L" : Cold stamping of the VIN.

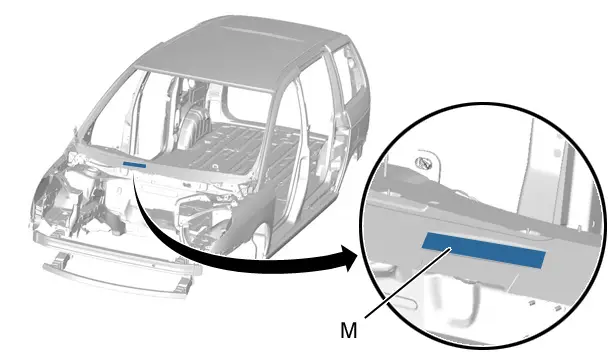

3.12. Lower windscreen aperture zone location

"M" : Cold stamping of the VIN.

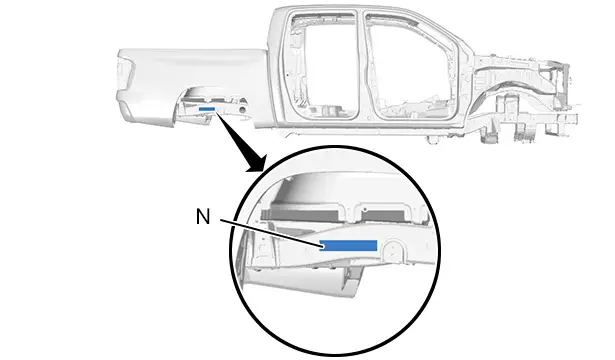

3.13. Rear right-hand wheel arch on chassis zone location

"N" : Cold stamping of the VIN.
