1. Introduction
The structural inserts contribute to making the vehicle lighter and improving the safety of the occupants.
The bodies are delivered with structural inserts.
When replacing a component on the vehicle which includes a structural insert, the repairer must carry out the following operations :
- Position the structural insert in the component
- Create a seal on the periphery of the structural insert using a sealing product, index "B10"
2. Location of the structural inserts

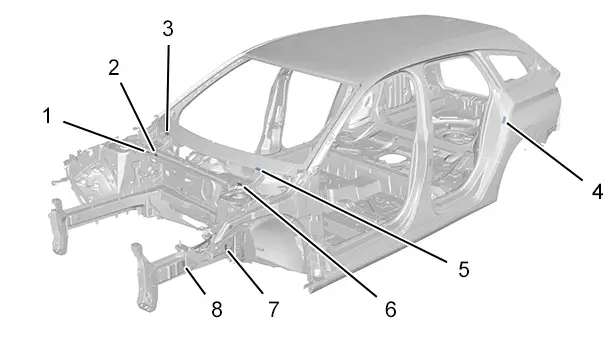

| Identification | Description | Left-hand side | Right-hand side |
| (1) | Scuttle spacer exterior structural insert | - | X |
| (2) | Scuttle spacer interior structural insert | - | X |
| (3) | Steering column strengthener structural insert | - | X |
| (4) | Rear door striker fixing strengthener structural insert | X | X |
| (5) | Steering column strengthener structural insert | X | - |
| (6) | Scuttle spacer structural insert | X | - |
| (7) | Front chassis leg (rear section) front partition structural insert | X | X |
| (8) | Front chassis leg (front section) front partition structural insert | X | X |
3. Identification of the structural inserts
| Identification | Description | Function | Characteristic |

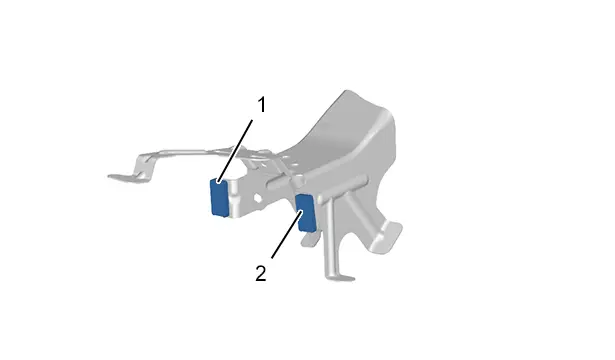

| (1) | Scuttle spacer interior structural insert (right-hand side) | Helps to stiffen the scuttle spacer | - |
| (2) | Scuttle spacer exterior structural insert (right-hand side) | Helps to stiffen the scuttle spacer | - |
| Identification | Description | Function | Characteristic |

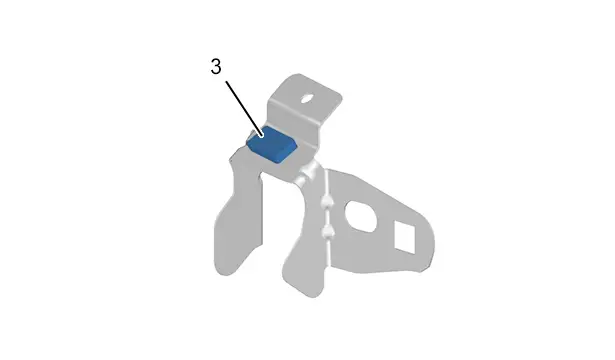

| (3) | Steering column strengthener structural insert (right-hand side) | Helps to stiffen the steering column strengthener | - |
| Identification | Description | Function | Characteristic |

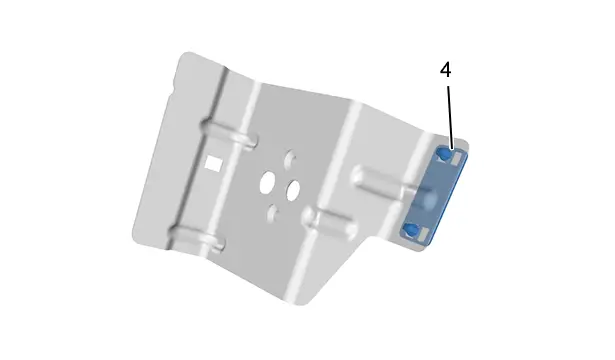

| (4) | Rear door striker fixing strengthener structural insert | Helps to stiffen the rear door striker fixing strengthener | - |
| Identification | Description | Function | Characteristic |

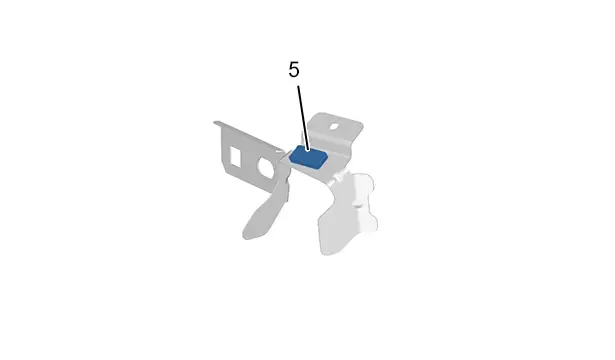

| (5) | Steering column strengthener structural insert (left-hand side) | Helps to stiffen the steering column strengthener | - |
| Identification | Description | Function | Characteristic |

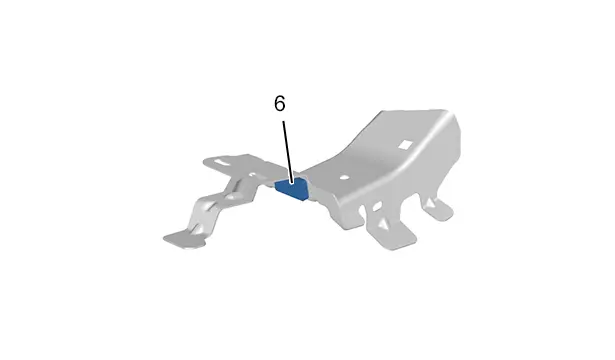

| (6) | Scuttle spacer structural insert (left-hand side) | Helps to stiffen the scuttle spacer | - |
| Identification | Description | Function | Characteristic |

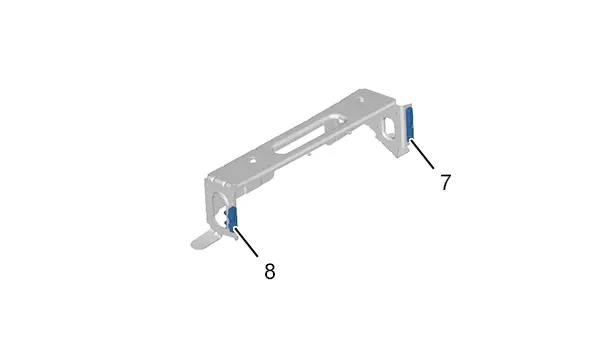

| (7) | Front chassis leg (rear section) front partition structural insert | Helps to stiffen the chassis leg front partition | - |
| (8) | Front chassis leg (front section) front partition structural insert | Helps to stiffen the chassis leg front partition | - |
