Peugeot 308: Organisation bulletin : Commercial launch of the MB6 manual gearbox

This bulletin presents all the technical information required by authorised repairers and new vehicle and replacement parts distributors for the launch of the new MB6 manual gearboxes.

This bulletin must be presented and distributed in each dealership of the network by each department manager.

New vehicle sales : The sales manager must present this bulletin to all new vehicle sales staff and give them a copy.

Service : Service managers must present this bulletin to all aftersales service staff and give them copies.

Replacement parts activity : The parts manager must present this bulletin to all parts staff and give them a copy.

Main information and key points in the bulletin ; The manual gearbox MB6.

To be noted in particular.

The manual gearbox MB6 :

• Is a manual gearbox with 6 speeds and reverse gear
• Maintenance free
• Requires special tools

1. Product description

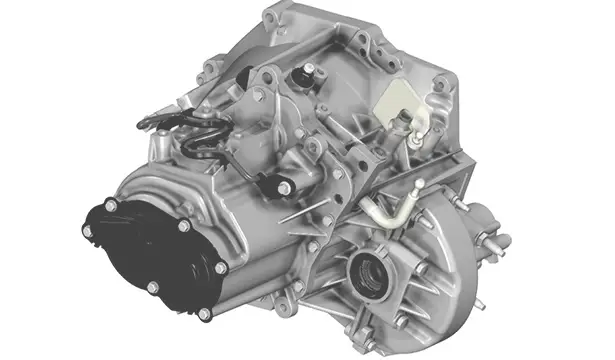

MB6 manual gearbox.

The manual gearbox MB6 :

• Is a manual gearbox with 6 speeds and reverse gear
• Is designed for the DV and EB engine families
• Is intended for the entire global market
• Was designed internally by PSA and is assembled in Valenciennes (France)
• Includes many components in common with the BE manual gearbox

N.B. : The coupling unit on the MB6 manual gearbox is a double damping flywheel (ADF).

2. Technical data

	MB6	BE
Type of gearbox	BVM	BVM
Number of gears	6	5
Maximum torque ( Nm)	250	250
Associated engines	DV, EB	DV, EB, EP6C, TU5, EC5
Associated coupling	Double damping flywheel (DVA)	Double damping flywheel, single flywheel

3. Aftersales domain training courses

3.1. Distance learning modules

There is no specific training for the MB6 manual gearbox as it has no special features in comparison to other manual gearboxes.

3.2. Attended training courses

No face-to-face training.

Face- to-face training will take place subsequently when new (K9) vehicles are launched in order to teach technicians about the incorrect removal of the double damping flywheel (ADF).

3.3. Hand-down kit

No dissemination kit is provided.

4. Aftersales documentation

The technical documentation for the MB6 manual gearbox can be found on the manufacturer’s aftersales documentation portal.

5. Diagnosis

As on other manual gearboxes, the MB6 manual gearbox has a neutral sensor. The fault codes associated with the malfunctioning of the gearbox have been created and integrated into the diagnostic tool .

The MB6 manual gearbox also has a reverse gear sensor, the diagnostics of which are processed in the same way as other manual gearboxes.

The diagnostics of the MB6 manual gearbox are carried out exclusively with the diagnostic tool .

6. Maintenance

Maintenance free.

7. Indicator plate

No indicator plate.

8. gearbox oil

8.1. Check the oil level

Check the oil level : None.

Lubrication interval : Lubricated for life.

Use the exact oil quantity when filling with oil.

Type of gearbox	MB6
Oil quantity	1,8 ± 0,2 litres
Volume remaining after draining	0,1 ± 0,1 litres
Filling volume in aftersales	1,7 ± 0,1 litres

To determine the quantity of oil to pour in after draining and to benefit from the latest updates : Refer to the "Draining - filling - level: MB6 manual gearbox" method available on the manufacturer’s aftersales documentation portal .

8.2. oil

CAUTION : Only manual gearbox oils that comply with PSA Group standards are authorised for use .

Only the following oil is permitted for the MB6 manual gearbox.

Type of oil permitted (grade)	Specifications
75 W	HBVFE2

9. Repair

Refer to the repair procedures.

CAUTION : Special attention must be paid to the adjustment of the control cables.

Refer to the method "Adjustment: MB6 gearbox control" available on the aftersales documentation portal .

N.B. : Special feature on the MB6 manual gearbox : The control cables must be adjusted after stalling in second gear.

The specific tools must be used to ensure the correct positioning of the gear lever in the passenger compartment and the positioning of the MB6 manual gearbox control in the engine compartment.

An incorrect adjustment can lead to :

• A reversal of first gear and reverse gear (A high safety risk)
• A failure to change gears

10. Incorrect removal of the double damping flywheel (ADF)

A double damping flywheel (ADF) is used for the MB6 manual gearbox coupling.

It is normal for there to be play in the double damping flywheel (ADF), even when it is new.

CAUTION : Do not remove or systematically replace the double damping flywheel (ADF).

To prevent the incorrect removal of the double damping flywheel (ADF), a video illustrating the normal clearance and the method for checking it are available on the manufacturer’s aftersales documentation portal ; "Diagnostic assistance: engine double damping flywheel (demo video) ".

CAUTION : Reverse gear must be engaged when the vehicle is stationary.

CAUTION : If the vehicle is in motion, even slightly, this may generate noise and damage the gears.

11. Special tools

The MB6 manual gearbox requires special tools.

Part number of the tool in the repair methods	Replacement Part references	Description
[0355-A]	16 231 378 80	Tool for positioning the control on the gearbox (Stalling in second gear)
[0355-B]		Gear selection lever positioning gauge (Stalling in second gear)
[0346-W]	16 267 283 80	Differential seal fitting drift (Left-hand side )
[0346-X]		Differential seal fitting drift (Right-hand side )

12. Warranty

No notable special feature.

13. Recall campaigns

No notable special feature.

14. Reporting of information

Refer to the document "Organisation bulletin: feedback to customers" for the vehicle.

Manufacturer’s Aftersales documentation portal : "DOCUMENTATION" tab ↦Vehicle / General ↦Repair procedures ↦Data - Identifications.

15. Technical assistance

The "Dealer Issue Detection Assistance" (DID-A) is used to contact technical assistance.

Observe the DID standards (Manufacturer’s Aftersales documentation portal : "Incidents-Assistance" tab ↦DID practical information ↦DID standards) :

• Relevance standard
• Quality standard

N.B. : Refer to the organisation bulletin which covers this subject.
