Peugeot 308: Recommended consumables : Engine oils

An engine oil is defined by :

• A grade
• An approval according to the specifications laid down by the ACEA (European Automobile Manufacturers’ Association)
• One or more of approvals in accordance with manufacturers’ specifications (Manufacturers’ recommendations )

1. Grade of engine oil

N.B. : The grade of the engine oil is defined by the standards of the SAE (society automotive engineers).

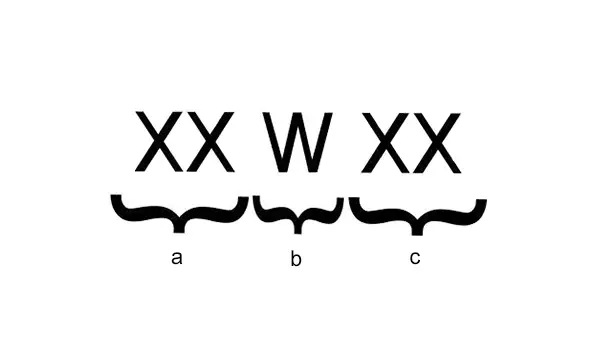

The grade of an engine oil is represented by XX W XX.

(a) Digit or number corresponding to the grade of the engine oil when cold (the smaller the number, the easier it is to start from cold).

(b) Letter W for winter.

(c) Number indicating the grade of the engine oil when hot (the higher the number, the easier it is for the engine oil to withstand high temperatures and remain viscous).

An engine oil is developed to be highly efficient over a considerable temperature range (0W30 applicable between -45 and 45°C)).

N.B. : The grade of an engine oil is not linked to its performance with ageing, soiling or wear.

Example :A 5W30 oil is not necessarily more effective than an 0W30 oil and vice versa.

2. Technical specifications of the ACEA standards

The ACEA standards indicate minimum oil performance. The requirements imposed do not correspond to the oil performance recommended by PEUGEOT/CITROËN/DS/OPEL/VAUXHALL.

These standards are only a basis for performance.

N.B. : The specifications of the ACEA (Association des Constructeurs Européens d’Automobiles - European automobile manufacturers association) standards do not correspond to the requirements of PEUGEOT/CITROËN/DS/OPEL/VAUXHALL.

-	Performance with ageing	Engine protection	Performance relating to CO2	Post-processing compatibility, EURO 6 emission control standard
ACEA A3 / B4	+ +	+ +	-	-
ACEA C2, C3 or C4	+	+	+	+
ACEA C5	+	+	+ +	+
PEUGEOT/CITROËN/DS requirements	+ + +	+ + +	+ + +	+ + +

Key :

• + : Medium
• + + : Correct
• + + + :Very good

3. PEUGEOT/CITROËN/DS/OPEL/VAUXHALL recommendations

Exclusive use of one of the following oils :

• The TotalEnergies oils listed in the table below
• All other oils complying with PEUGEOT/CITROËN/DS/OPEL/VAUXHALL standards (Refer to the recommendations tables)

The oils recommended by PEUGEOT/CITROËN/DS/OPEL/VAUXHALL standards have characteristics that are superior to the oils defined by ACEA standards.

CAUTION : The use of additives in engine oil is strictly prohibited.

Petrol and diesel engines

Recommended oil (*)	PEUGEOT / CITROËN / DS standards
QUARTZ INEO XTRA FIRST 0W20	B71 2010
QUARTZ INEO FIRST 0W30	B71 2312 / B71 2302
D-XITY PCI ECO 0W30
QUARTZ INEO ECS 5W30	B71 2290
QUARTZ INEO HTC 5W30
QUARTZ INEO RCP 5W30
DPCA 5W30 ECS
D-XITY AMQ ECO 5W30
QUARTZ INEO HTC 5W30	B71 2297
QUARTZ INEO RCP 5W30
DPCA 5W30 HTC
QUARTZ INEO RCP 5W30	FPW9.55535/03
QUARTZ 9000 5W40	B71 2296
QUARTZ 9000 DIESEL 5W40
QUARTZ 9000 ESSENCE 5W40
DPCA 5W40
D-XITY AMQ 5W40
QUARTZ 7000 10W40	B71 2300
QUARTZ 7000 DIESEL 10W40
QUARTZ 7000 ESSENCE 10W40
QUARTZ 7000 S 10W40
QUARTZ 7000 DIESEL S 10W40
QUARTZ EV3R 10W40
QUARTZ INEO PRO 0W30	FPW9.55535 / DH1
(*) Or any other lubricant complying with PEUGEOT/CITROËN/DS/OPEL/VAUXHALL standards

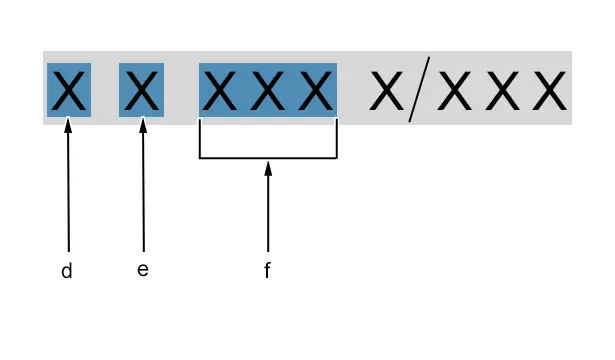

4. Identification of the engine specifications

"d" Vehicle family.

"e" Body style.

"f" engine (Legislative code).

On receipt of the vehicle in the workshop :

• Note the country in which the vehicle is used(Group "A", "B" or "C")
• Identify the engine legislative code on the vehicle identification plate(In "e")
• Make a note of the engine legislative code
• Refer to the section "Presentation of country groupings" and then the section "Oil recommendations per group of countries"

5. Presentation of country groupings

All countries are grouped into 3 groups of countries :

• Unit A : Temperate or cold countries / Europe fuel types (not sulphur)
• Unit B : Countries outside Europe
• Unit C : Argentina / Brazil
• Unit D : China

N.B. : Refer to the table below to find out which group the country of use of the vehicle is in.

5.1. Unit A : Temperate or cold countries / Europe fuel types (not sulphur)

-	List of countries affected	List of countries affected	List of countries affected	List of countries affected
-	Albania	Spain	Kazakhstan	Portugal
	Germany	Estonia	Kosovo	Czech Republic
	Austria	Finland	Latvia	Roumania
	Azerbaïdjan	France	Lithuania	Russia
	Belgium	Georgia	Luxembourg	Serbia
	Belorussia	Great Britain	Macedonia	Slovakia
	Bosnia-Herzegovina	Greece	Malta	Slovenia
	Bulgaria	Hungary	Moldavia	Sweden
	Canada	Canary Isles	Montenegro	Switzerland
	Cyprus	Ireland	Norway	Ukraine
	Korea	Iceland	New Zealand	-
	Croatia	Italy	Netherlands	-
	Denmark	Japan	Poland	-

5.2. Unit B : Countries outside Europe

-	List of countries affected	List of countries affected	List of countries affected	List of countries affected
-	Afghanistan	United States	Macao	Saint Martin
	South Africa	Ethiopia	Madagascar	São Tomé and Príncipe
	Algeria	Fiji	Malaysia	Saint Vincent and the Grenadines
	Angola	Gabon	Malawi	Saint Lucia
	Antigua and Barbuda	Gambia	Mali	Samoa
	Saudi Arabia	Ghana	Morocco	Senegal
	Armenia	Grenada	Martinique	Seychelles
	Aruba	Guadeloupe	Mauritania	Singapore
	Australia	Guam	Mayotte	Somalia
	Bahamas	Guatemala	Mexico	Sudan
	Bahrain	Guinea	Mongolia	Sri Lanka
	Bangladesh	Guinea-Bissau	Mozambique	Surinam
	Barbados	Equatorial Guinea	Namibia	Swaziland
	Belize	Guyana	Nepal	Syria
	Benin	French Guiana	Nicaragua	Tadjikistan
	Bermuda	Haiti	Niger	Taiwan
	Bhutan	Hawaii	Nigeria	Tanzania
	Bolivia	Honduras	New Caledonia	Chad
	Botswana	Hong Kong	Oman	Thailand
	Brunei	Cayman Islands	Uganda	East Timor
	Burkina Faso	Reunion Island	Uzbekistan	Togo
	Burundi	Mariana Islands	Pakistan	Tonga
	Cambodia	Mauritius	Palestine	Trinidad and Tobago
	Cameroon	Virgin Islands	Panama	Tunisia
	Cape Verde	India	Papua New Guinea	Turkmenistan
	Central African Republic	Indonesia	Paraguay	Turkey
	Chile	Iraq	Peru	Union of Myanmar
	Columbia	Iran	Philippines	Uruguay
	Comores	Israel	French Polynesia	Vanuatu
	Costa Rica	Jamaica	Puerto Rico	Venezuela
	Ivory Coast	Jordan	Qatar	Vietnam
	Cuba	Kenya	Democratic Republic of Congo	Yemen
	Curacao	Kirghizistan	Lao People’s Democratic Republic	Zambia
	Djibouti	Kuwait	Dominican Republic	Zimbabwe
	Egypt	Lesotho	Republic of the Congo	-
	El Salvador	Lebanon	British Solomon Islands	-
	United Arab Emirates	Liberia	Rwanda	-
	Ecuador	Libya	Saint Kitts and Nevis	-

5.3. Unit C : Argentina / Brazil / Chile

-	List of countries affected	List of countries affected	List of countries affected
-	Argentina	Brazil	Chile

5.4. Unit D : China

-	List of countries affected
-	China

6. Oil recommendations per group of countries

6.1. Unit A : Temperate or cold countries - Europe fuel types (not sulphur)

CAUTION : Category ACEA 5W30 C2, 0W30 C1 / C2 oil must not be used in engines earlier than 2000 (7/99) model yearThe use of additives in engine oil is strictly prohibited.

6.1.1 - TU / ET engines.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
TU1TU1A	HFX / HFY / HFZ / HFV	OK	OK	OK	OK
TU3 / ET3 / TU3A	KFW / KFV / K6D / K6E / KFU / K6F / KFX / K6C / KFS / KFT	OK	OK	OK	OK
TU5	NFV / NFS / NFU / N6A / NFT / N6B / NFR	OK	OK	OK	OK

6.1.2 - EW engines.

Engine type	Engine identification	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
EW7A	6FY	-	OK	OK
EW7J4	6FZ	OK	OK	OK
EW10A	RFJ / RFH	-	OK	OK
EW10J4	RFN / RFM / RFP / RFR	OK	OK	OK
EW10J4S	RFK	-	OK	-
EW12E4	3FY	-	OK	OK
EW12J4	3FZ	-	OK	OK

6.1.3 - TOYOTA engines.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
384F	CFA / CFB	OK	OK	OK	OK
1KR-FE	CFB	-	OK	-	OK

6.1.4 - MITSUBISHI engines.

Engine type	Engine identification	0W20 oilB71 2010	0W30 oilB71 2312	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
2.4 MMC	SFZ / SFY	-	OK	OK	OK	OK
2.0 MMC	AFZ / AFX / FZ9 / FZP / AFY / FZC / FZH / FZE / FZF	-	OK	OK	OK	OK
1.8 D MMC	6HZ / 6HY	-	OK	OK	-	-
1.6 MMC	NKZ	-	OK	OK	OK	OK
4K22T	TGT	OK	OK	-	-	-

6.1.5 - EP engines.

Engine type	Engine identification	0W20 oilB71 2010	0W30 oilB71 2312	5W30 oilB71 2290
EP3	8FS	-	OK	OK
EP3C	8FP / 8FR / 8FN	-	OK	OK
EP6	5FW / 5FP	-	OK	OK
EP6C	5FS / 5FK / 5FL / 5FJ / 5FH	-	OK	OK
EP6CDT	5FN / 5FV / 5F2 / 5FA	-	OK	-
EP6CDTX	5FU / 5FB	-	OK	-
EP6CDT M	5FE / 5FC / 5FM	-	OK	-
EP6CDTR	5FG	-	OK	-
EP6DT	5FX / 5FT / 5FR / 5F4	-	OK	-
EP6DTS	5FY / 5FF / 5FD	-	OK	-
EP6FADTXD	5GF	-	OK	-
EP6FADTR	EGX	-	OK	-
EP6FADTX	5GG	-	OK	-
EP6FADTXM	EGP / EGY / EGZ	-	OK	-
EP6FADTX HP	5GB	-	OK	-
EP6FDT	5GZ / 5GW / 5GL	-	OK	-
EP6FDT M	5GY / 5GX / 5GV	-	OK	-
EP6FDTX	5GR / 5GM / 5GT	-	OK	-
EP6FDTR	5GN / 5GP	-	OK	-
EP6LTC / EP6LTCH	DGC / DGR	OK	-	-

6.1.6 - EB engines.

Engine type	Engine identification	0W20 oilB71 2010	0W30 oilB71 2312	5W30 oilFPW9.55535/03	5W30 oilB71 2290	5W40 oilB71 2296
EB0	ZMZ	-	OK	-	OK	OK
EB2	HMX / HMW / HMZ / HMT / HMU	-	OK	-	OK	OK
EB2 FF	HMZ	-	OK	-	-	-
EB2 M	HMY	-	OK	-	OK	OK
EB2ADT	HNE / HNK / HNP	OK	-	OK	-	-
EB2ADT M	HN7 / HNB	OK	-	OK	-	-
EB2ADTS	HNS	OK	-	OK	-	-
EB2ADTS M	HNL	OK	-	OK	-	-
EB2ADTX	HNJ / HNN	OK	-	OK	-	-
EB2DTS	HNY	-	-	OK	-	-
EB2DTSD	HNX	-	-	OK	-	-
EB2DTS M	HNW	-	-	OK	-	-
EB2DT	HNZ	-	-	OK	-	-
EB2DT M	HNV	-	-	OK	-	-
EB2FA / EB2FAD	HMR / HMM / HMH	OK	-	-	-	-
EB2FA FF	HMN	-	OK	-	-	-
EB2FA FK	HMF	-	OK	-	-	OK
EB2FA M	HMJ	-	OK	-	-	-
EB2FA MK	HMG	-	OK	-	-	OK
EB2LTDEB2LTED	TBD	OK	-	-	-	-
EB2LTDH2EB2LTEDH2	TBD	OK	-	-	-	-

6.1.7 - EC engine.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
EC5	NFP	OK	OK	OK	OK
EC5 (E100)	NFN	OK	-	-	-

6.1.8 - DV engines.

Engine type	Engine identification	0W20 oilB71 2010	0W30 oilB71 2312	5W30 oilFPW9.55535/03	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
DV4C	8HR / 8HP	-	OK	-	OK	-	-
DV4TD	8HT / 8HZ / 8HX	-	OK	-	OK	OK	OK
DV4TED	8HS	-	OK	-	OK	OK	OK
DV4TED4	8HV / 8HY	-	OK	-	OK	OK	OK
DV5RC / DV5RCD / DV5RCE /DV5RCF / DV5RD / DV5RE / DV5RUC / DV5RUD	YHX / YHZ / YHP / YHS / YHT / YHY / YHW / YHV / YHR	-	-	OK	-	-	-
DV6ATED4 / DV6AUTED4	9HX	-	OK	-	OK	OK	OK
DV6BTED4 / DV6BUTED4	9HW / 9HT	-	OK	-	OK	OK	OK
DV6C / DV6UC	9HR / 9HC / 9HM / 9HL / 9HD	-	OK	-	OK	-	-
DV6C M	9HG	-	OK	-	-	OK	-
DV6D	9HP / 9HF	-	OK	-	OK	-	-
DV6D M	9HE / 9HJ	-	OK	-	-	OK	-
DV6DU M	9HH	-	OK	-	-	OK	-
DV6E	9HN	-	OK	-	OK	-	-
DV6E M	9HK	-	OK	-	-	OK	-
DV6FC	BHZ	-	OK	-	-	-	-
DV6FCU	BHX	-	OK	-	-	-	-
DV6FD	BHY	-	OK	-	-	-	-
DV6FDU	BHV / BHS	-	OK	-	-	-	-
DF6FE	BHW	-	OK	-	-	-	-
DV6TED4	9HY	-	OK	-	OK	OK	OK
DV6TED4( with particle filter)	9HZ	-	OK	-	OK	OK	OK
DV6TED4B ( with particle filter)	9HV	-	OK	-	OK	OK	OK
DV6TED4BU ( with particle filter)	9HS	-	OK	-	OK	OK	OK
DV6UTED4	9HU	-	OK	-	OK	OK	OK

N.B. : FAP : Particle filter.

6.1.9 - DW engines.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	5W30 oilFPW9.55535 / 03	5W40 oilB71 2296	10W40 oilB71 2300
DW8	WJZ	-	OK	-	OK	OK
DW8B	WJY / WJX	-	OK	-	OK	OK
DW10ATED	RHZ	-	OK	-	OK	OK
DW10ATED( with particle filter)	RHS	-	OK	-	OK	OK
DW10ATED4	RHW	-	OK	-	OK	OK
DW10ATED4 ( with particle filter)	RHT / RHM	-	OK	-	OK	OK
DW10BTED	RHX	-	OK	-	OK	OK
DW10BTED4 ( with particle filter)	RHR / RHL / RHJ	-	OK	-	OK	OK
DW10BTED4Euro 5 emission control standard ( with particle filter)	RHF	-	OK	-	OK	-
DW10CTED4	RHE / RHH / RHD / AHY / AHZ / RHB / RHC / RHA	OK	OK	-	-	-
DW10FC	AHW / AHH / EHZ / EHY	OK	-	-	-	-
DW10FD	AHX / AHV / AHR / AHS / AHF	OK	-	-	-	-
DW10FE	AHJ / AHK / AHD	OK	-	-	-	-
DW10FU	AHP / AHN / AHM	OK		-
DW10TD	RHY / RHV / RHU	-	OK	-	OK	OK
DW10UTED4	RHK	-	OK	-	OK	OK
DW10UTED4 ( with particle filter)	RHG	-	OK	-	OK	OK
DW12BTED4 ( with particle filter)	4HP / 4HR / 4HS / 4HT	-	OK	-	OK	OK
DW12C	4HL	OK	OK	-	-	-
DW12MTED4 ( with particle filter)	4HN	-	OK	-	OK	OK
DW12RU	4HH / 4HJ / 4HK	-	-	OK	-	-
DW12TED4 ( with particle filter)	4HW / 4HX / 4HZ	-	OK	-	OK	OK
DW12UTED	4HY	-	OK	-	OK	OK

6.1.10 - DT engines.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
DT17	UHZ	-	OK	OK	OK
DT20	X8Z	OK	OK	-	-

6.1.11 - PUMA engines.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
PUMA (Euro 4 emission control standard)	4HV / 4HU / 4HM / MFB	-	OK	OK	OK
PUMA C	4HG / 4HH / 4HJ / 4HF	OK	OK	-	-

6.1.12 - SOFIM engines.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	5W40 oilB71 2296	10W40 oilB71 2300
F28DT	8140.43S / 8040.23	-	OK	OK	OK
F28DTGV	8140.43 N	-	OK	OK	OK
F30DTE	F1CE0481D / F1CE3481DM	-	OK	OK	OK
F30DTE	F1CE348IN / D / E	OK	OK	-	-

6.1.13 - FIAT engine.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290	0W30 oilFPW9.55535 / DH1
1.3 HDi 75	FHZ	OK	OK	-
B2.2	E6F / F6F / G6F / G6H / G8F	-	-	OK

6.1.14 - YUNNEI engine.

Engine type	Engine identification	0W30 oilB71 2312	5W30 oilB71 2290
D20T	FHZ	-	OK

6.2. Unit B : Countries outside Europe

CAUTION : Category ACEA 5W30 C2 , 0W30 C1 / C2 oil must not be used in engines earlier than 2000 (7/99) model yearThe use of additives in engine oil is strictly prohibited.

6.2.1 -TU / ET engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
TU1 / TU1A	HFX / HFY / HFZ / HFV	OK	OK
TU3 / ET3 / TU3A	KFW / KFV / K6D / K6E / KFU / K6F / KFX / K6C / KFS / KFT	OK	OK
TU4 M	YFZ	OK	-
TU5	NFV / NFS / NFU / N6A / NFT / N6B / NFR	OK	OK

6.2.2 - EW engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
EW7A	6FY	-	OK
EW7J4	6FZ	OK	OK
EW10A	RFJ / RFH	-	OK
EW10J4	RFN / RFM / RFP / RFR	OK	OK
EW10J4S	RFK	-	OK
EW12E4	3FY	-	OK
EW12J4	3FZ	-	OK

6.2.3 - TOYOTA engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
384F	CFA / CFB	OK	OK
1KR-FE	CFB	OK	-

6.2.4 -MITSUBISHI engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
2.4 MMC	SFZ / SFY	OK	OK
2.0 MMC	AFZ / AFX / FZ9 / FZP / AFY / FZC / FZH / FZE / FZF	OK	OK
1.8 D MMC	6HZ / 6HY	OK	-
1.6 MMC	NKZ	OK	OK
4K22T	TGT	OK	-

6.2.5 - EP engines.

Engine type	Engine identification	5W30 oilB71 2297
EP3	8FS	OK
EP3C	8FP / 8FR / 8FN	OK
EP6	5FW / 5FP	OK
EP6C	5FS / 5FK / 5FL / 5FJ / 5FH	OK
EP6CDT	5FN / 5FV / 5F2 / 5FA	OK
EP6CDTX	5FU / 5FB	OK
EP6CDT M	5FE / 5FC / 5FM	OK
EP6CDTR	5FG	OK
EP6DT	5FX / 5FT / 5FR / 5F4	OK
EP6DTS	5FY / 5FF / 5FD	OK
EP6FADTXD	5GF	OK
EP6FADTX	5GG	OK
EP6FADTXM	EGP / EGY / EGZ	OK
EP6FADTX HP	5GB	OK
EP6FDT	5GZ / 5GW / 5GL	OK
EP6FDT M	5GY / 5GX / 5GV	OK
EP6FDTX	5GR / 5GM / 5GT	OK
EP6FDTR	5GN / 5GP	OK
EP6LTC / EP6LTCH	DGC / DGR	OK
EP6LTC M	DGP	OK

6.2.6 -EB engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
EB0	ZMZ	OK	OK
EB2	HMX / HMW / HMZ / HMT / HMU	OK	OK
EB2FF	HMZ	OK	-
EB2M	HMY	OK	OK
EB2AFF	HMN	OK	-
EB2ADT	HNE / HNK / HNP	OK	-
EB2ADT I	HNP	OK	-
EB2ADT M	HN7 / HNB / HNM	OK	-
EB2ADTD B	HNE	OK	-
EB2ADTD I	HNK	OK	-
EB2ADTS	HNS	OK	-
EB2ADTS C	HNT	OK	-
EB2ADTS I	HNS	OK	-
EB2ADTS M	HNL	OK	-
EB2ADTX	HNJ / HNN	OK	-
EB2DT	HNZ	OK	-
EB2DT M	HNV	OK	-
EB2DTS	HNY	OK	-
EB2DTS M	HNW	OK	-
EB2FA / EB2FAD	HMR / HMM / HMH	OK	-
EB2FA FK	HMF	OK	OK
EB2FA M	HMJ	OK	-
EB2FA MK	HMG	OK	OK
EB2LTD	TBD	OK	-

6.2.7 - EC engine.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
EC5	NFP	OK	OK
EC5 (E100)	NFN	OK	-
EC8	WFZ	OK	-

6.2.8 - DV engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
DV4C	8HR / 8HP	OK	-
DV4TD	8HT / 8HZ / 8HX	OK	OK
DV4TED	8HS	OK	OK
DV4TED4	8HV / 8HY	OK	OK
DV5RC	YHX / YHZ	OK	-
DV5RD	YHY	OK	-
DV5RUC	YHV	OK	-
DV5RUC D	YHR	OK	-
DV6ATED4 / DV6AUTED4	9HX	OK	OK
DV6BTED4 / DV6BUTED4	9HW / 9HT	OK	OK
DV6C / DV6UC	9HR / 9HC / 9HM / 9HL / 9HD	OK	-
DV6C M	9HG	OK	OK
DV6D	9HP / 9HF	OK	-
DV6D M	9HE / 9HJ	OK	OK
DV6DU M	9HH	OK	OK
DV6E	9HN	OK	-
DV6E M	9HK	OK	OK
DV6FC	BHZ	OK	-
DV6FCU	BHX	OK	-
DV6FD	BHY	OK	-
DV6FDU	BHV / BHS	OK	-
DV6FE	BHW	OK	-
DV6TED4	9HY	OK	OK
DV6TED4 / DV6TED4B / DV6TED4BU ( with particle filter)	9HZ / 9HV / 9HS	OK	OK
DV6UTED4	9HU	OK	OK

N.B. : FAP : Particle filter.

6.2.9 -DW engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
DW8	WJZ	OK	OK
DW8B	WJY / WJX	OK	OK
DW10ATED	RHZ	OK	OK
DW10ATED ( with particle filter)	RHS	OK	OK
DW10ATED4	RHW	OK	OK
DW10ATED4( with particle filter)	RHT / RHM	OK	OK
DW10BTED	RHX	OK	OK
DW10BTED4( with particle filter)	RHR / RHL / RHJ	OK	OK
DW10BTED4 ( with particle filter)Euro 5 emission control standard	RHF	OK	OK
DW10CTED4	RHE / RHH / RHD / AHY / AHZ / RHB / RHC / RHA	OK	-
DW10FC	AHW / AHH / EHZ / EHY	OK	-
DW10FD	AHX / AHV / AHR / AHS / AHF	OK	-
DW10FE	AHJ / AHK / AHD	OK	-
DW10FU	AHP / AHN / AHM	OK	-
DW10TD	RHY / RHV / RHU	OK	OK
DW10UTED4	RHK	OK	OK
DW10UTED4( with particle filter)	RHG	OK	OK
DW12BTED4( with particle filter)	4HP / 4HR / 4HS / 4HT	OK	OK
DW12C	4HL	OK	-
DW12MTED4( with particle filter)	4HN	OK	OK
DW12RU	4HH / 4HJ / 4HK	OK	-
DW12RL	4HY / 4HZ	OK	-
DW12TED4( with particle filter)	4HW / 4HX / 4HZ	OK	OK
DW12UTED	4HY	OK	OK

N.B. : FAP : Particle filter.

6.2.10 - DT engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
DT17	UHZ	-	OK
DT20	X8Z	OK	-

6.2.11 - PUMA engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
PUMA(Euro 4 emission control standard)	4HV / 4HU / 4HM / MFB	-	OK
PUMA C	4HG / 4HH / 4HJ / 4HF	OK	-

6.2.12 - SOFIM engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296
F28DT	8140.43S / 8040.23	-	OK
F28DTGV	8140.43 N	-	OK
F30DTE	F1CE0481D / F1CE3481DM	-	OK
F30DTE	F1CE348IN / D / E	OK	-

6.2.13 - FIAT engine.

Engine type	Engine identification	5W30 oilB71 2297	0W30 oilFPW9.55535 / DH1
1.3 HDi 75	FHZ	OK	-
B2.2	E6F / F6F / G6F / G6H / G8F	-	OK

6.2.14 - YUNNEI engine.

Engine type	Engine identification	5W30 oilB71 2297
D20T	-	OK

6.3. Unit C : Argentina / Brazil / Chile

CAUTION : Category ACEA 5W30 C2 , 0W30 C1 / C2 oil must not be used in engines earlier than 2000 (7/99) model yearThe use of additives in engine oil is strictly prohibited.

6.3.1 - TU / ET engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
TU1 / TU1A	HFX / HFY / HFZ / HFV	OK	OK	OK	OK
TU3 / ET3 / TU3A	KFW / KFV / K6D / K6E / KFU / K6F / KFX / K6C / KFS / KFT	OK	OK	OK	OK
TU4 M	YFZ	-	OK	-	OK
TU4 FF	YZY	-	OK	-	-
TU5	NFV / NFS / NFU / N6A / NFT / N6B / NFR	OK	OK	OK	OK

6.3.2 - EW engines.

Engine type	Engine identification	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
EW7A	6FY	-	OK	OK
EW7J4	6FZ	OK	OK	OK
EW10A	RFJ / RFH	-	OK	OK
EW10J4	RFN / RFM / RFP / RFR	OK	OK	OK
EW10J4S	RFK	-	OK	-
EW12E4	3FY	-	OK	OK
EW12J4	3FZ	-	OK	OK

6.3.3 - TOYOTA engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
384F	CFA / CFB	OK	OK	OK	OK
1KR-FE	CFB	-	OK	-	OK

6.3.4 - MITSUBISHI engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
2.4 MMC	SFZ / SFY	OK	OK	OK	OK
2.0 MMC	AFZ / AFX / FZ9 / FZP / AFY / FZC / FZH / FZE / FZF	OK	OK	OK	OK
1.8 D MMC	6HZ / 6HY	OK	OK	-	-
1.6 MMC	NKZ	OK	OK	OK	OK
4K22T	TGT	-	OK	-	-

6.3.5 - EP engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297
EP3	8FS	OK	OK
EP3C	8FP / 8FR / 8FN	OK	OK
EP6	5FW / 5FP	OK	OK
EP6C	5FS / 5FK / 5FL / 5FJ / 5FH	OK	OK
EP6CDT	5FN / 5FV / 5F2 / 5FA	-	OK
EP6CDTX	5FU / 5FB	-	OK
EP6CDT M	5FE / 5FC / 5FM	-	OK
EP6CDTR	5FG	-	OK
EP6DT	5FX / 5FT / 5FR / 5F4	OK	OK
EP6DTS	5FY / 5FF / 5FD	OK	OK
EP6FADTXD	5GF	OK	OK
EP6FADTX	5GG	OK	OK
EP6FADTXM	EGP / EGY / EGZ	OK	OK
EP6FADTX HP	5GB	OK	OK
EP6FDT	5GZ / 5GW / 5GL	OK	OK
EP6FDT M	5GY / 5GX / 5GV	OK	OK
EP6FDTX	5GR / 5GM / 5GT	OK	OK
EP6FDTR	5GN / 5GP	OK	OK
EP6LTD	TBD	OK	OK

6.3.6 - EB engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296
EB0	ZMZ	OK	OK	OK
EB2	HMX / HMW / HMZ / HMT / HMU	OK	OK	OK
EB2 FF	HMZ	OK	OK	-
EB2 M	HMY	OK	OK	OK
EB2A FF	HMN	OK	OK	-
EB2A FK	HMF	OK	OK	OK
EB2ADT	HMK / HNE / HNP	OK	OK	-
EB2ADT I	HNP	OK	OK	-
EB2ADT M	HN7 / HNB / HNM	OK	OK	-
EB2ADT S	HNS	OK	OK	-
EB2ADTD B	HNE	OK	OK	-
EB2ADTD I	HNK	OK	OK	-
EB2ADTS C	HNT	OK	OK	-
EB2ADTS I	HNS	OK	OK	-
EB2ADTS M	HNL	OK	OK	-
EB2ADTX	HNJ / HNN	OK	OK	-
EB2DT	HNZ	OK	OK	-
EB2DT M	HNV	OK	OK	-
EB2DTS	HNY	OK	OK	-
EB2DTS M	HNW	OK	OK	-
EB2FA / EB2FAD	HMR / HMM / HMH	OK	OK	-
EB2FA M	HMJ	OK	OK	-
EB2FA MK	HMG	OK	OK	OK
EB2LTD	TBD	OK	OK	-

6.3.7 - EC engine.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
EC5	NFP	OK	OK	OK	OK
EC5 (E100)	NFN	OK	OK	-	-
EC8	-	OK	OK	-	-

6.3.8 - DV engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297
DV4C	8HR / 8HP	OK	OK
DV4TD	8HT / 8HZ / 8HX	OK	OK
DV4TED	8HS	OK	OK
DV4TED4	8HV / 8HY	OK	OK
DV5RC	YHX / YHZ	OK	OK
DV5RD	YHY	OK	OK
DV5RUC	YHV	OK	OK
DV5RUC D	YHR	OK	OK
DV5RE	YHW	OK	OK
DV6ATED4 / DV6AUTED4	9HX	OK	OK
DV6BTED4 / DV6BUTED4	9HW / 9HT	OK	OK
DV6C / DV6UC	9HR / 9HC / 9HM / 9HL / 9HD	OK	OK
DV6C M	9HG	OK	OK
DV6D	9HP / 9HF	OK	OK
DV6D M	9HE / 9HJ	OK	OK
DV6DU M	9HH	OK	OK
DV6E	9HN	OK	OK
DV6E M	9HK	OK	OK
DV6FC	BHZ	OK	OK
DV6FCU	BHX	OK	OK
DV6FD	BHY	OK	OK
DV6FDU	BHV / BHS	OK	OK
DF6FE	BHW	OK	OK
DV6TED4	9HY	OK	OK
DV6TED4 / DV6TED4B / DV6TED4BU( with particle filter)	9HZ / 9HV / 9HS	OK	OK
DV6UTED4	9HU	OK	OK

6.3.9 - DW engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297
DW8	WJZ	OK	OK
DW8B	WJY / WJX	OK	OK
DW10ATED	RHZ	OK	OK
DW10ATED ( with particle filter)	RHS	OK	OK
DW10ATED4	RHW	OK	OK
DW10ATED4( with particle filter)	RHT / RHM	OK	OK
DW10BTED	RHX	OK	OK
DW10BTED4( with particle filter)	RHR / RHL / RHJ	OK	OK
DW10BTED4 ( with particle filter)Euro 5 emission control standard	RHF	OK	OK
DW10CTED4	RHE / RHH / RHD / AHY / AHZ / RHB / RHC / RHA	OK	-
DW10FC	AHW / AHH / EHZ / EHY	OK	-
DW10FD	AHX / AHV / AHR / AHS / AHF	OK	-
DW10FE	AHJ / AHK / AHD	OK	-
DW10FU	AHP / AHN / AHM	OK	-
DW10TD	RHY / RHV / RHU	OK	OK
DW10UTED4	RHK	OK	OK
DW10UTED4( with particle filter)	RHG	OK	OK
DW12BTED4( with particle filter)	4HP / 4HR / 4HS / 4HT	OK	OK
DW12C	4HL	OK	-
DW12MTED4( with particle filter)	4HN	OK	OK
DW12RU	4HH / 4HJ / 4HK	OK	OK
DW12RL	4HY / 4HZ	-	OK
DW12TED4( with particle filter)	4HW / 4HX / 4HZ	OK	OK
DW12UTED	4HY	OK	OK

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296
DW10FC	AHW / AHH / EHZ / EHY	OK	OK	-
DW10FU	AHP / AHN / AHM	OK	OK	-

N.B. : FAP : Particle filter.

6.3.10 - DT engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
DT17	UHZ	-	-	OK	OK
DT20	X8Z	OK	OK	-	-

6.3.11 - PUMA engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
PUMA(Euro 4 emission control standard)	4HV / 4HU / 4HM / MFB	-	-	OK	OK
PUMA C	4HG / 4HH / 4HJ / 4HF	OK	OK	-	-

6.3.12 - SOFIM engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
F28DT	8140.43S / 8040.23	-	-	OK	OK
F28DTGV	8140.43 N	-	-	OK	OK
F30DTE	F1CE0481D / F1CE3481DM	-	-	OK	OK
F30DTE	F1CE348IN / D / E	OK	OK	-	-

6.3.13 - FIAT engine.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	0W30 oilFPW9.55535 / DH1
1.3 HDi 75	FHZ	OK	OK	-
1.0 N3	-	OK	-	-
B2.2	E6F / F6F / G6F / G6H / G8F	-	-	OK

6.3.14 - YUNNEI engine.

Engine type	Engine identification	5W30 oilB71 2297
D20T	-	OK

6.4. Unit D : China

CAUTION : Category ACEA 5W30 C2 , 0W30 C1 / C2 oil must not be used in engines earlier than 2000 (7/99) model yearThe use of additives in engine oil is strictly prohibited.

6.4.1 - TU / ET engines.

Engine type	Engine identification	0/5W30 oilB71 2301	5W30 oilB71 2297	10W40 oilB71 2300
TU1 / TU1A	HFX / HFY / HFZ / HFV	OK	OK	OK
TU3 / ET3 / TU3A	KFW / KFV / K6D / K6E / KFU / K6F / KFX / K6C / KFS / KFT	OK	OK	OK
TU4 M	YFZ	-	OK	OK
TU5	NFV / NFS / NFU / N6A / NFT / N6B / NFR	OK	OK	OK

6.4.2 - TOYOTA engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
384F	CFA / CFB	OK	OK	OK	OK
1KR-FE	CFB	-	OK	-	OK

6.4.3 - MITSUBISHI engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
2.4 MMC	SFZ / SFY	OK	OK	OK	OK
2.0 MMC	AFZ / AFX / FZ9 / FZP / AFY / FZC / FZH / FZE / FZF	OK	OK	OK	OK
1.8 D MMC	6HZ / 6HY	OK	OK	-	-
1.6 MMC	NKZ	OK	OK	OK	OK
4K22T	TGT	OK	OK	-	-

6.4.4 - EP engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297
EP3	8FS	OK	OK
EP3C	8FP / 8FR / 8FN	OK	OK
EP6	5FW / 5FP	OK	OK
EP6C	5FS / 5FK / 5FL / 5FJ / 5FH	OK	OK
EP6CDT	5FN / 5FV / 5F2 / 5FA	-	OK
EP6CDTX	5FU / 5FB	-	OK
EP6CDT M	5FE / 5FC / 5FM	-	OK
EP6CDTR	5FG	-	OK
EP6DT	5FX / 5FT / 5FR / 5F4	OK	OK
EP6DTS	5FY / 5FF / 5FD	OK	OK
EP6FADTXD	5GF	OK	OK
EP6FADTX	5GG	OK	OK
EP6FADTXM	EGP / EGY / EGZ	OK	OK
EP6FADTX HP	5GB	OK	OK
EP6FDT	5GZ / 5GW / 5GL	OK	OK
EP6FDT M	5GY / 5GX / 5GV	OK	OK
EP6FDTX	5GR / 5GM / 5GT	OK	OK
EP6FDTR	5GN / 5GP	OK	OK
EP6LTD	TBD	OK	OK
EP8FADTXD	6GZ / 6GY	OK	OK
EP8FADTX	6GX	OK	OK

6.4.5 - EB engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296
EB0	ZMZ	OK	OK	OK
EB2	HMX / HMW / HMZ / HMT / HMU	OK	OK	OK
EB2 FF	HMZ	OK	OK	-
EB2 M	HMY	OK	OK	OK
EB2A FF	HMN	OK	OK	-
EB2ADT	HNF / HNH / HNK / HNP	OK	OK	-
EB2ADT I	HNP	OK	OK	-
EB2ADT M	HNM	OK	OK	-
EB2ADTD B	HNE	OK	OK	-
EB2ADTD I	HNK	OK	OK	-
EB2ADTS	HNS	OK	OK	-
EB2ADTS C	HNT	OK	OK	-
EB2ADTS I	HNS	OK	OK	-
EB2ADTS M	HNL	OK	OK	-
EB2ADTX	HNN	OK	OK	-
EB2DT	HNZ	OK	OK	-
EB2DT M	HNV	OK	OK	-
EB2DTS	HNY	OK	OK	-
EB2DTS M	HNW	OK	OK	-
EB2FA / EB2FAD	HMR / HMM / HMH	OK	OK	-
EB2FA FK	HMF	OK	OK	OK
EB2FA M	HMJ	OK	OK	-
EB2FA MK	HMG	OK	OK	OK
EB2LTD	TBD	OK	OK	-

6.4.6 - EC engine.

Engine type	Engine identification	0/5W30 oilB71 2301	5W30 oilB71 2297	5W40 oilB71 2296
EC5	NFP	OK	OK	OK
EC5 (E100)	NFN	OK	OK	-
EC8	WFZ	OK	OK	-

6.4.7PUMA engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
PUMA(Euro 4 emission control standard)	4HV / 4HU / 4HM / MFB	-	-	OK	OK
PUMA C	4HG / 4HH / 4HJ / 4HF	OK	OK	-	-

6.4.8 - SOFIM engines.

Engine type	Engine identification	0W30 oilB71 2302	5W30 oilB71 2297	5W40 oilB71 2296	10W40 oilB71 2300
F28DT	8140.43S / 8040.23	-	-	OK	OK
F28DTGV	8140.43 N	-	-	OK	OK
F30DTE	F1CE0481D / F1CE3481DM	-	-	OK	OK
F30DTE	F1CE348IN / D / E	OK	OK	-	-

6.4.9 - YUNNEI engine.

Engine type	Engine identification	5W30 oilB71 2297
D20T	-	OK
