Peugeot 308: Removing - refitting : Purge canister solenoid valve

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Location

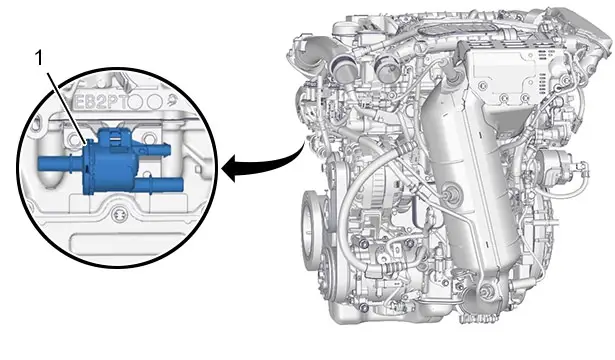

(1) Canister purge solenoid valve.

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries.

3. Removing

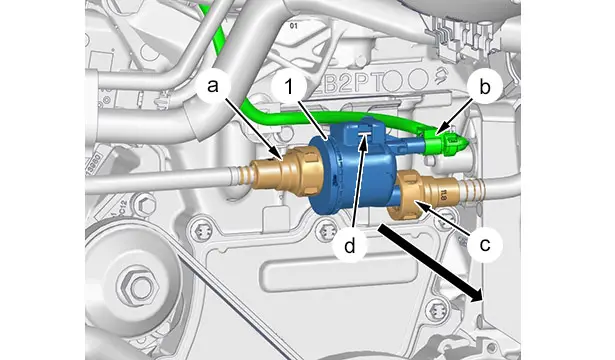

Uncouple :

• The fuel vapours pipe  (at "a")
• The fuel vapours pipe  (at "c")

Unclip the canister purge electrovalve (1) from its support  (at "d") (In the direction of the arrow ).

Remove the purge canister solenoid valve (1) (In the direction of the arrow ).

Disconnect the connector of the canister purge electrovalve (1)  (at "b").

4. Refitting

Reconnect the purge canister solenoid valve (1) connector  (at "b").

Refit the canister purge electrovalve (1) on its support.

Clip the canister purge electrovalve (1) on its support  (at "d").

Couple up :

• The fuel vapours pipe  (at "a")
• The fuel vapours pipe  (at "c")

5. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery .
