Peugeot 308: Identification - specifications : EB2L engine base

1. Cylinder block assembly

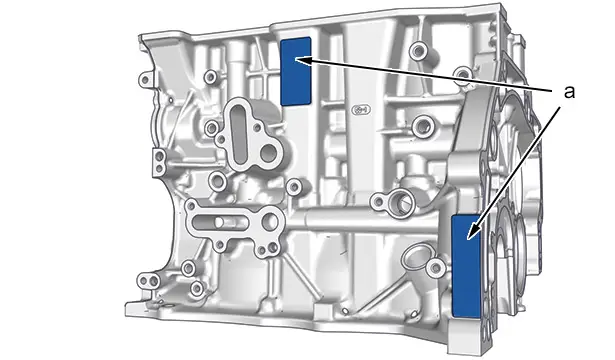

Machined face with engine marking (at "a").

engine	EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM
Flatness of the cylinder block(close to the cylinder head)	0,05 mm
Diameter of the cylinders	75 (0 ; +0,018) mm
Liner protrusion	0 (+ 0,03 ; -0,01) mm

The cylinder block is non-repairable.

1.1. Marking on cylinder block

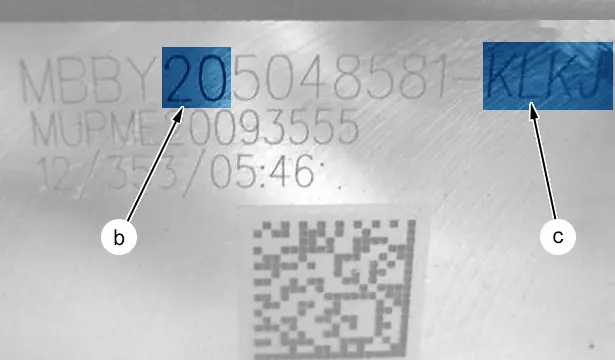

Engine capacity (at "b")

Engine type	Identification
EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM	20

The diameter values for the crankshaft main bearings are referenced on the machined surface "a" of the cylinder block (at "c") (Direction of reading from the flywheel towards the timing).

Components	Bearing n°
K	1
L	2
K	3
J	4

N.B. : Bearing n°1 flywheel end (Cylinder no 1).

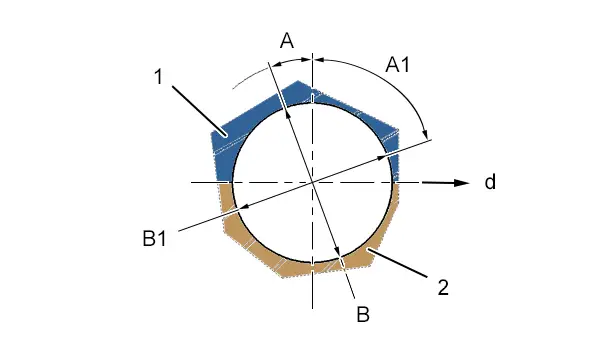

1.2. Diameters of the crankshaft main bearings

(1) Cylinder block .

(2) Crankshaft bearing cap.

"d" Exhaust side .

N.B. : Area for measuring the diameter of the crankshaft bearing in the centreline of the bearing fixings.

Components	Measurement	Values
"A"	Measuring angle "B"	20°
"A1"	Measuring angle "B1"	70°
"B", "B1"	Nominal diameter of the crankshaft bearing : EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM engine type	45,6 (0 ; +0,019) mm
-	Calculation of the diameter of the crankshaft bearing	(ØB + ØB1) / 2

2. Crankshaft

Crankshaft lateral play	Minimum clearance	Maximum clearance
Crankshaft lateral play	0,07 mm	0,42 mm

EB2L direct injection engine : The crankshaft, made of forged steel, is non-repairable.

2.1. References on crankshaft

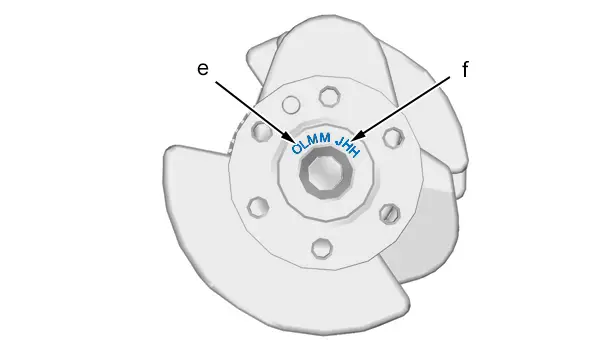

The diameter values for the main journals and crank pins are referenced on the crankshaft (at "e", "f") (Flywheel side).

"e" Record of the value of the main journals (Machined surface) - Alphabetical characters.

"f" Record of the value of the crank pins (Machined surface) - Alphabetical characters.

N.B. : Direction of reading from the flywheel towards the timing.

Components "e"	Main journal bearing n°
O	1
L	2
M	3
M	4

N.B. : Bearing n°1 flywheel end (Cylinder no 1).

Components "f"	Crank pin bearing n°
J	1
H	2
H	3

N.B. : Bearing n°1 flywheel end (Cylinder no 1).

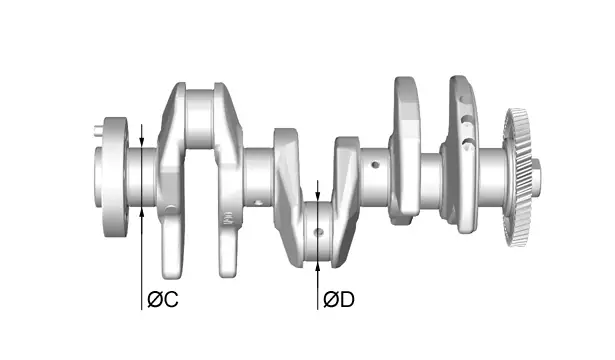

2.2. Crankshaft measurements

engine	EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM
"C" Nominal diameter of the main journal	42 (0 ; -0,016) mm
"D" Nominal diameter of the crank pin	42 (0 ; -0,016) mm

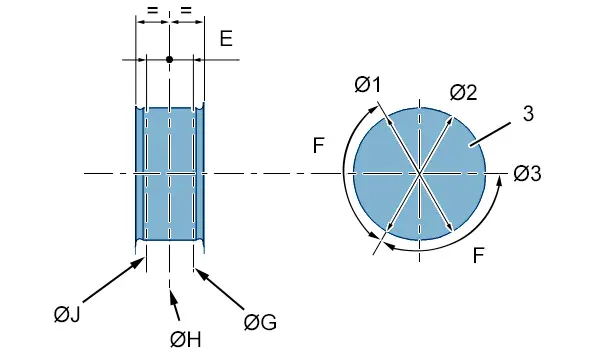

2.3. Measurement of the diameter of the main journals

N.B. : Journals (3).

Components	Measurement	Values
"E"	Measuring zone	10 mm
"F"	Angle between each diameter	120°
"G", "H", "J"	Measurement diameters	-

Calculation of the diameter of the main journal "C" :

• ØG = (ØG1 + ØG2 + ØG3) / 3
• ØH = (ØH1 + ØH2 + ØH3) / 3
• ØJ = (ØJ1 + ØJ2 + ØJ3) / 3

Diameter of the main journal "C" : ØC = (ØG + ØH + ØJ) / 3.

N.B. : The method for measuring the diameter "D" of the crank pins is identical.

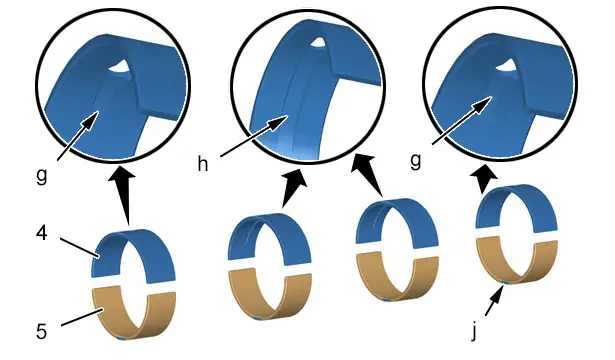

3. Crankshaft bearing shells

CAUTION : Do not invert the crankshaft shells and big end shells of the EB2L engines (The diameter of the bearings is identical, but the thickness and part number of the shells are different).

CAUTION : The crankshaft shells have only one colour marking (at "j").

CAUTION : Only the crankshaft lower half-shells (5) are classed.

The upper half-shells (4) are different :

• Bearings number 1 and 4 : Partially grooved half-shells (at "g")
• Bearings number 2 and 3 : Fully grooved half-shells (at "h")

The lower half-shells are identical, smooth, and are available in 4 thicknesses.

EB2LTD / EB2LTED / EB2LTEM engine

Identification	Bearing	Class	Thickness	Colour
(4) Top half shells	1 and 4	-	1,798 mm	black
	2 and 3	-	1,798 mm	-
(5) Bottom half shells	1, 2, 3 and 4	E	1,789 mm	Brown
	1, 2, 3 and 4	F	1,795 mm	Blue
	1, 2, 3 and 4	G	1,802 mm	Green
	1, 2, 3 and 4	H	1,807 mm	Yellow

EB2LTDH2 / EB2LTEM engine

Identification	Bearing	Class	Thickness	Colour
(4) Top half shells	1	-	1,798 mm	black
	2 and 3	-	1,798 mm	-
	4	-	1,798 mm	red
(5) Bottom half shells	1, 2, 3 and 4	E	1,789 mm	Brown
	1, 2, 3 and 4	F	1,795 mm	Blue
	1, 2, 3 and 4	G	1,802 mm	Green
	1, 2, 3 and 4	H	1,807 mm	Yellow

4. Crankshaft lateral shims

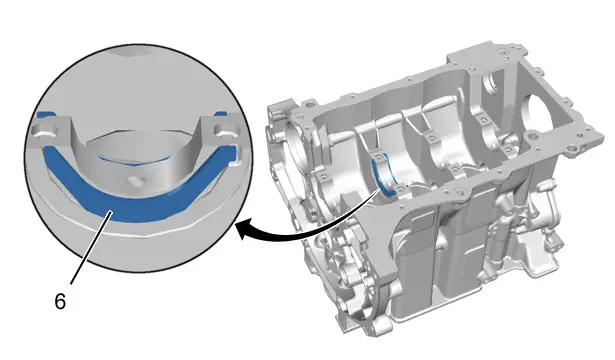

The lateral play of the crankshaft is assured by 2 identical shims (6) on the cylinder block.

The shims are mounted on bearing n°2.

engine	EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM
Thickness of a lateral play shim	2,375 ± 0,025 mm

5. Conrods

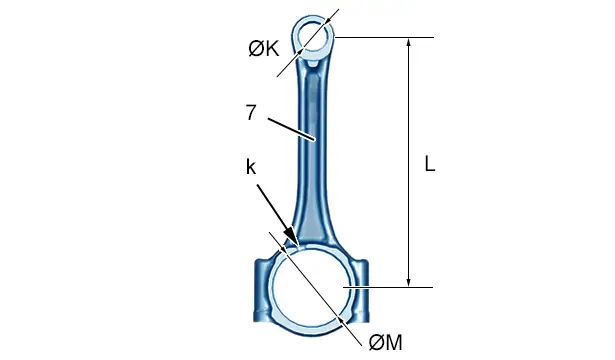

(7) Sectile conrods in forged steel.

N.B. : The little ends bush is not sold separately by the replacement parts department.

engine	EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM
Diameter "M"	45 (+0,016 ; 0) mm
Diameter "K"	19,5 (+ 0,02 ; + 0,007) mm
"L"	143 ± 0,025 mm
Direction of fitting identification (Lug on the inlet and timing side)	"k"

6. Identification : Engine conrods

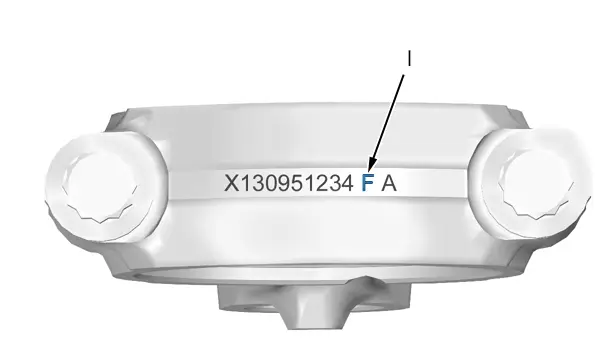

N.B. : The big end diameter value mark is indicated on the big end cap : Penultimate character(at "l").

7. Connecting rod bearing shells

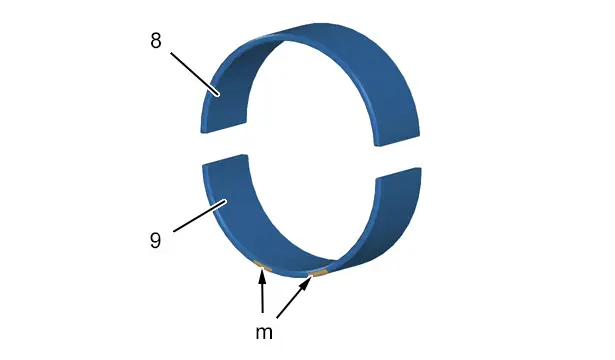

N.B. : The big end lower half-shells (9) have a double colour marking(at "m").

CAUTION : Only the big end lower half-shells (9) are classed.

EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM engines / Euro 6.4 emission control standard

Identification	Class	Thickness	Colour
(8) Top half shells	-	1,490 ± 0,003 mm	-
(9) Bottom half shells	A	1,482 ± 0,003 mm	Brown
	B	1,489 ± 0,003 mm	Blue
	C	1,496 ± 0,003 mm	Green
	D	1,503 ± 0,003 mm	Yellow

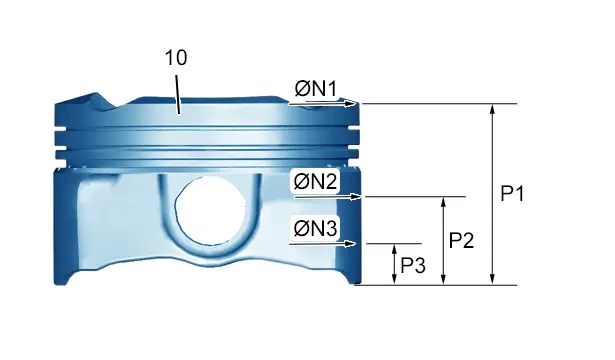

8. Pistons

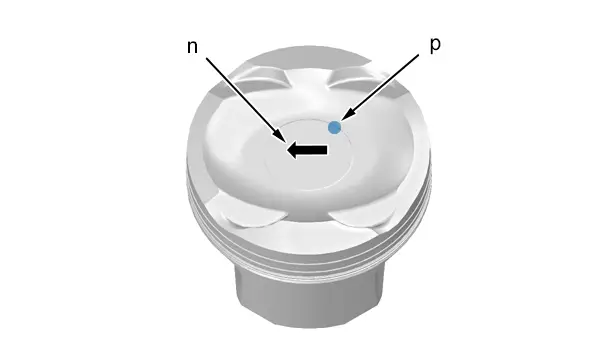

Marking at "n" (Arrow pointing to timing end).

Colour spot mark on the pistons(at "p").

engine	Colour
EB2L	Black

N.B. : (10) piston.

EB2LTD / EB2LTED / EB2LTDH2 / EB2LTEM engines

Components	Height	Piston diameter	Slotting
"N3" (Nominal diameter)	"P3" = 10 mm	74,95 ± 0,009 mm	-0,450 ± 0,020 mm
"N2"	"P2" = 23 mm	74,91 ± 0,007 mm	-0,350 ± 0,003 mm
"N1"	"P1" = 42,8 mm	74,48 ± 0,012 mm	-0,1 ± 0,01

9. Piston rings

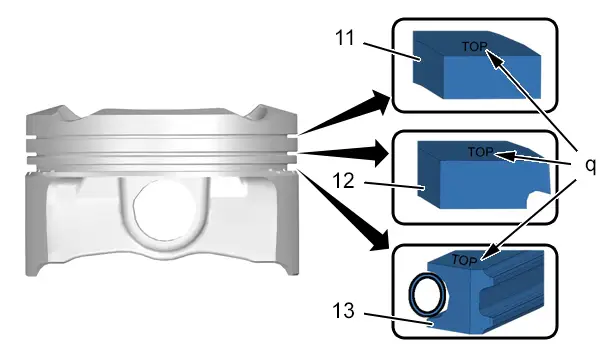

(11) Rectangular fire stop ring.

(12) Hooked sealing ring.

(13) Scraper ring with spiral spring expander.

"q" Piston rings marking : Orient the reference "TOP" upwards.

EB2L engine.

Segment (14)	Fire stop ring	Sealing ring	Scraper ring
Thickness	1,2 (- 0,01 ; -0,03) mm	1 (-0,01 ; -0,03) mm	2 (-0,01 ; -0,03) mm
"t" Ring gap	0,15 (+0,10 ; 0) mm	0,4 (+0,2 ; 0) mm	0,2 (+0,2 ; 0) mm
"Q" Diameter - Colour	75 mm - Red	75 mm - Blue	75 mm - Yellow

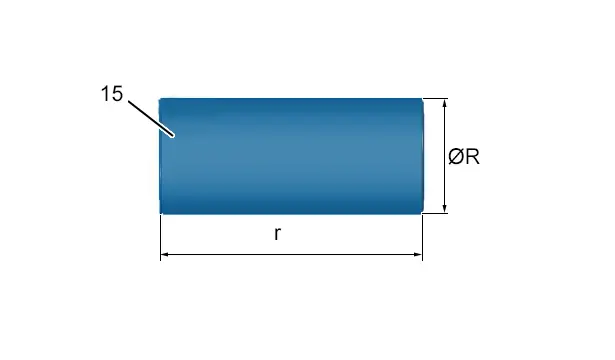

10. The piston shaft

engine	EB2L
Outside diameter "ØR"	19,5 (0 ; -0,005) mm
"r" length	45 (0 ; -0,3) mm
Fitting on shaft (15)	Not used

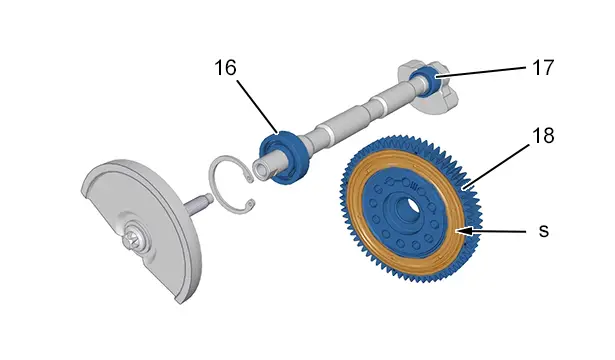

11. Counterbalance shaft

(16) Ball bearing.

(17) Needle bearing.

(18) Balance shaft gear ; direct injection engine.

N.B. : For the direct injection engine, the balance shaft gear is fitted with a vibration damper(at "s").
