Peugeot 308: Removing - refitting : Headlamp LEDs management ECU

Peugeot 308 2021-2025 (P5) Service Manual / Equipment :: Lighting - signalling / Exterior lighting / Removing - refitting : Headlamp LEDs management ECU

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Special feature

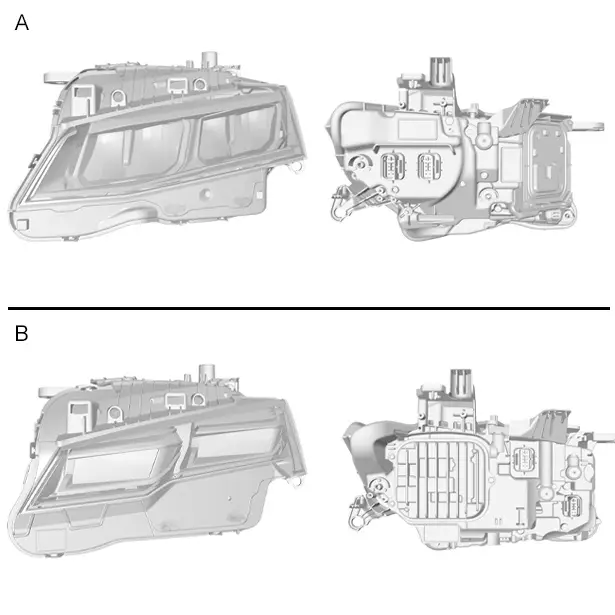

Assembly "A" : ECO LED headlamp.

Assembly "B" : LED headlamp .

2. ECO LED headlamp

2.1. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries( depending on the equipment ).

Remove the headlamp .

2.2. Removing

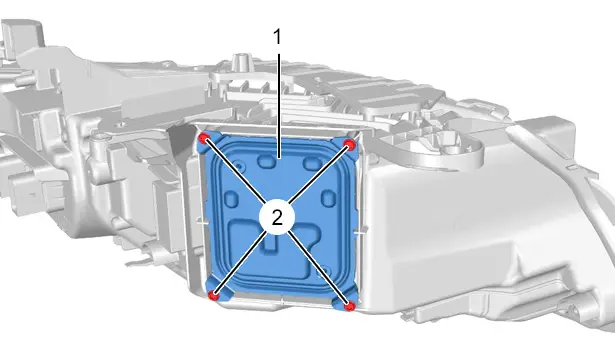

Remove the bolts (2).

Move the headlamp LEDs management ECU (1) aside.

CAUTION : Check the condition of the seal (3).

N.B. : If the seal (3) is damaged : Replace the seal (3).

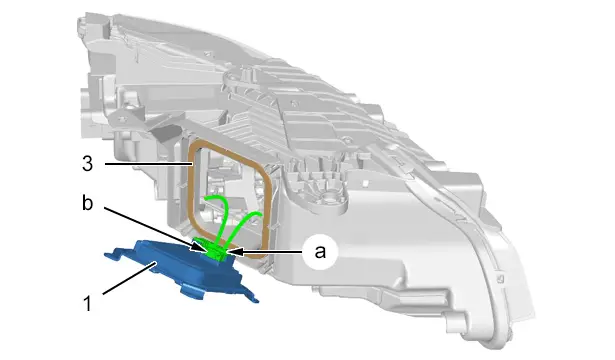

Disconnect the electrical harness connectors(at "a" and "b").

Remove the headlamp LEDs management ECU (1).

2.3. Refitting

Proceed in the reverse order to removal.

2.4. Additional operations

Refit the headlamp .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries( depending on the equipment ).

2.5. Check

Check the operation of the various equipment.

2.6. Adjustment

Adjust the headlamps .

3. LED headlamp

3.1. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries( depending on the equipment ).

Remove the headlamp .

3.2. Removing

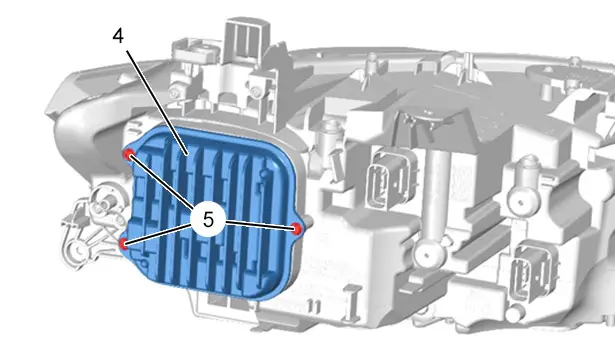

Remove the bolts (5).

Move the headlamp LEDs management ECU (4) aside.

CAUTION : Check the condition of the seal (6).

N.B. : If the seal (6) is damaged : Replace the seal (6).

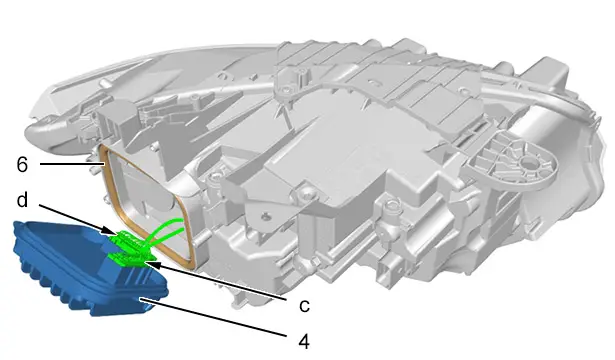

Disconnect the electrical harness connectors(at "c" and "d").

Remove the headlamp LEDs management ECU (4).

3.3. Refitting

Proceed in the reverse order to removal.

3.4. Additional operations

Refit the headlamp .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries( depending on the equipment ).

3.5. Check

Check the operation of the various equipment.

3.6. Adjustment

Adjust the headlamps .
