Peugeot 308: Removing - refitting : Rear lamp

Peugeot 308 2021-2025 (P5) Service Manual / Equipment :: Lighting - signalling / Exterior lighting / Removing - refitting : Rear lamp

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

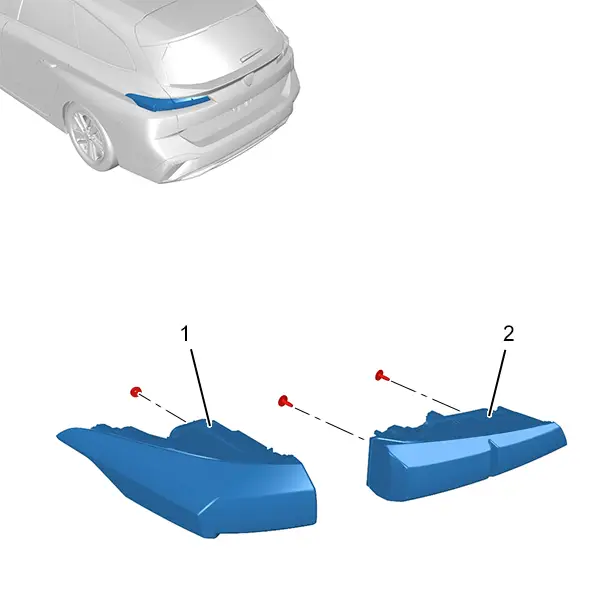

1. Location

Identification Description Quantity (Per side)
(1) Rear lamp on rear wing 1
(2) Rear lamp on tailgate 1

2. Tooling

Tool Reference Description

[1350-ZZ] Stripping tools

3. Preliminary operation

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Removing

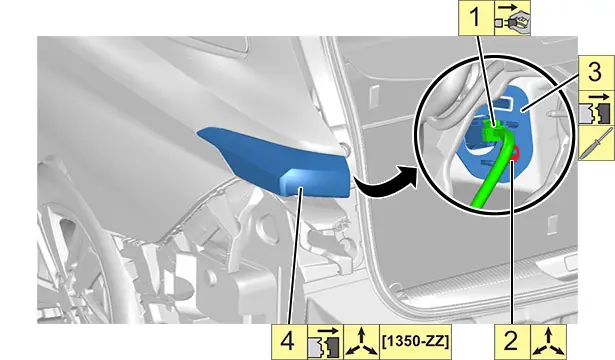

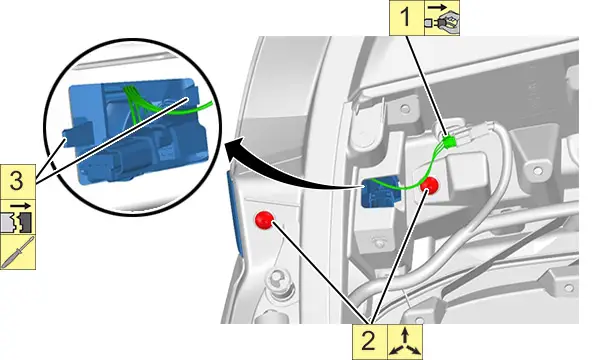

4.1. Rear lamp on rear wing

Remove :

  • The rear wing trim
  • The rear bumper

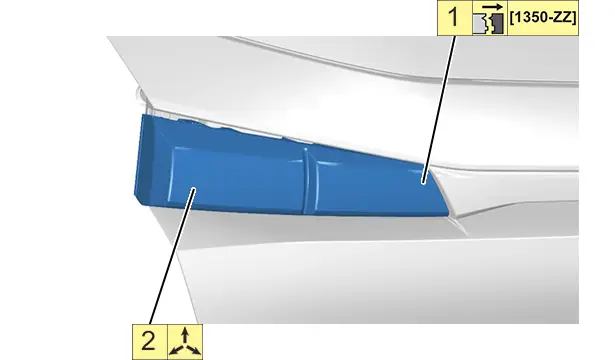

4.2. Rear lamp on tailgate

Remove the tailgate trim .

5. Refitting

Proceed in the reverse order to removal.

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
